This product is no longer available for sale.
The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.
New flat rate shipping - $3 in the US, $6 anywhere else!

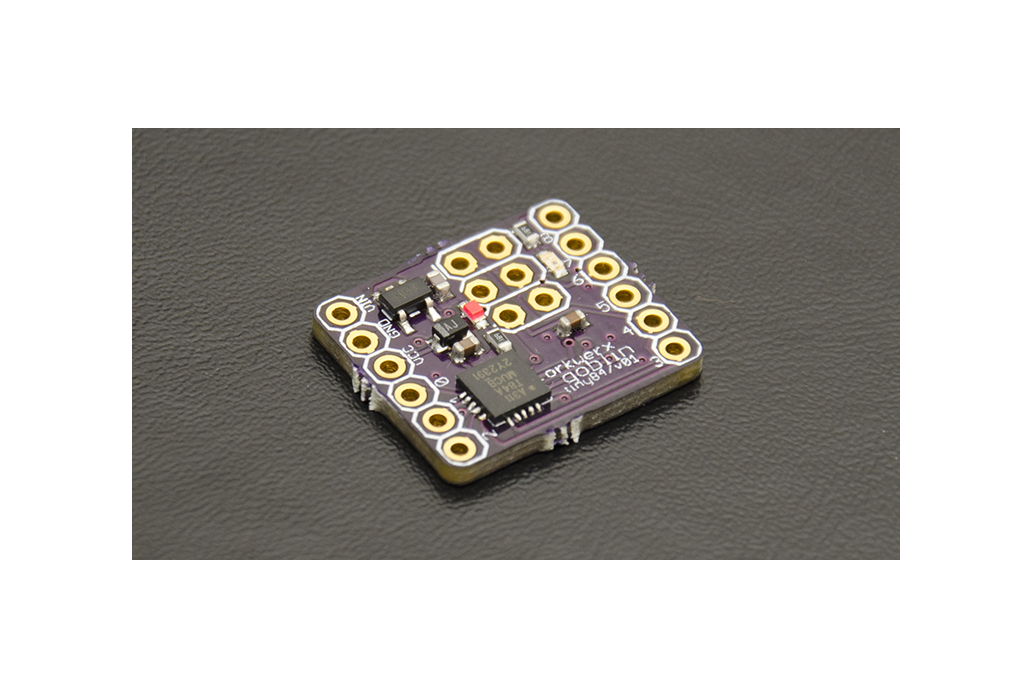

Overview The Orkwerx Goblin is a minimalist, Arduino-compatible tinyAVR microcontroller board. It packs a surprising number of I/O pins (9) into a package barely the size of a nickel (16x18mm) with b…
Read More…The Orkwerx Goblin is a minimalist, Arduino-compatible tinyAVR microcontroller board. It packs a surprising number of I/O pins (9) into a package barely the size of a nickel (16x18mm) with breadboard-friendly 0.1" connections. It runs at 3.3V/8MHz and also includes an ultra-low-dropout voltage regulator and two LEDs--power (orange) and pin 10 (pink!).
The Goblin requires an AVR ISP programmer. If you're into AVR microcontrollers, you probably already have one, but if not, there are many inexpensive options.
For full specs and a load of other information, including schematic and PCB files, check out the Goblin page. For help getting started check out the quickstart guide!
The Goblin is open source hardware.
