QFN-20 Breakout Board - 0.5mm/0.45mm pitches - w/ Headers

Name: QFN-20 Breakout Board - 0.5mm/0.45mm pitches - w/ Headers
SKU: 1523
Price: 2.00 USD
Availability: Discontinued

Designed by orkwerx in United States of America

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More From Prototyping & Fabrication

PMW3389 Motion Sensor

Joe's Sensors and Sundry

$29.99

PMW3360 Motion Sensor

Joe's Sensors and Sundry

$29.40

Sale

Flipper Zero RGB Mod

Midwest Gadgets LLC

$12.75 $15.00

FPGA Mezzanine Card (FMC) LPC Pin Header Board

I A M Electronic

$235.00

QFN-20 Breakout Board - 0.5mm/0.45mm pitches - w/ Headers 1

QFN-20 Breakout Board - 0.5mm/0.45mm pitches - w/ Headers 2

New flat rate shipping - $3 in the US, $6 anywhere else!

Overview This is a breakout board for 20-pin QFN chips (with 5 pins on each side). It has a 4x4mm footprint with 0.5mm lead pitch on one side, and a 3x3mm footprint with 0.45mm lead pitch on the othe…

Overview

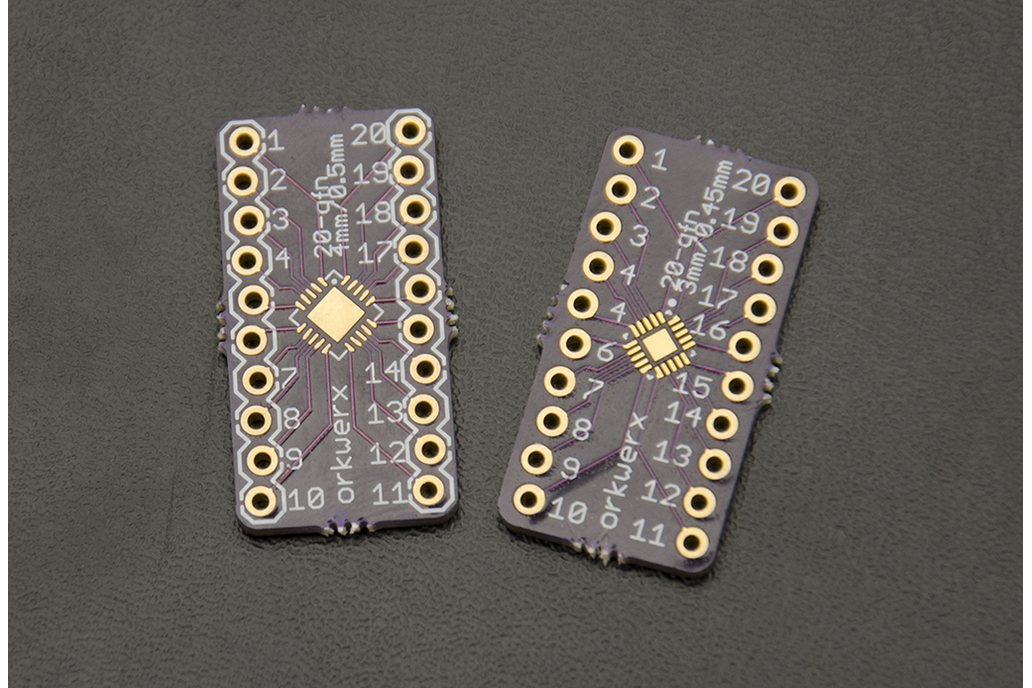

This is a breakout board for 20-pin QFN chips (with 5 pins on each side). It has a 4x4mm footprint with 0.5mm lead pitch on one side, and a 3x3mm footprint with 0.45mm lead pitch on the other. Note that it's a bit challenging to solder chip this small, but definitely doable! (Some kind of reflow/heat gun setup is a must, though.)

I originally made these to practice soldering QFN ATTiny2314A/4313 chips; if you check out their datasheet, the two footprints on this board are equivalent to the 20M1 and 20M2 packages.
