USB A and USB C Type-C Dual Interface Compatible
Designed by PCB Studios in United States of America
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More

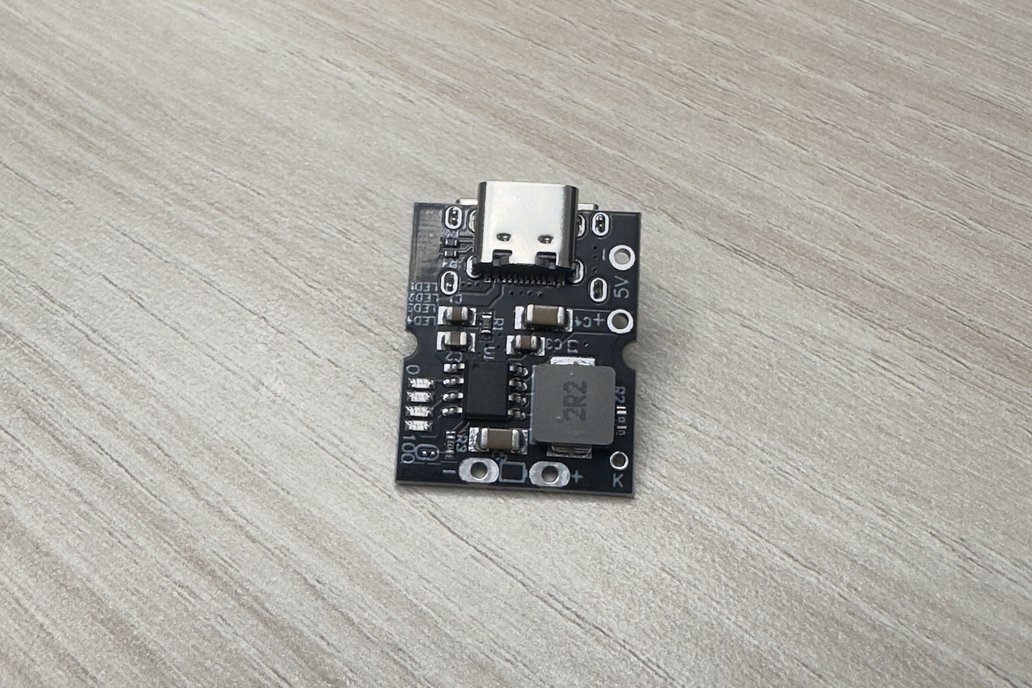

This module will take a 3.7-4.2v battery and output 5v to the USB port and to solder points on the board. It also has a battery charge display with four indicator lights. 5V 2A Charging and Dischargi…
Read More…This module will take a 3.7-4.2v battery and output 5v to the USB port and to solder points on the board. It also has a battery charge display with four indicator lights.
5V 2A Charging and Discharging Integrated Module
Charging and Discharging, two in one integrated module
USB A and USB C/Type-C Dual Interfaces
Input voltage: 5V-5.5V
Charging cut-off voltage: (4.2V/4.35V) ±0.5%
Charging current: 2.4A±5%
Boost output voltage ripple: 100mV
Boost output current: 2A
Boost conversion efficiency: 92.5% (3.6V input, 5V2A output)
Battery end quiescent current: <30uA_
Note: the type c will only charge it will not output
