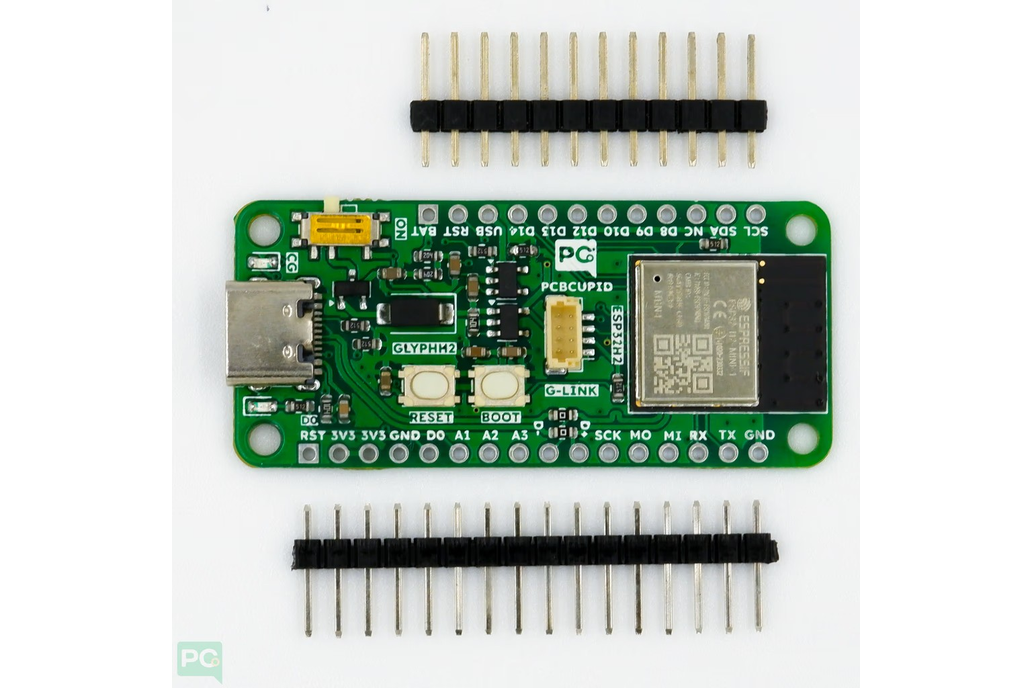

Introducing the Glyph-H2 Development Board, Our most affordable and feature loaded development board, with a compact at 50.8mm x 22.8mm x 1.6mm. It features an ESP32-H2 32-bit RISC-V single-core processor running at 160 MHz, with 320KB SRAM and 4 MB flash for storage.

The board supports Zigbee 3.0 , Matter and Bluetooth (5.3), perfect for all your IoT projects. It includes 19 GPIO pins, 12-bit ADCs, I2C, SPI, USB Serial and UART peripheral. Additional features includes a built-in Lipo / Li-ion battery charger and monitoring circuit along with Glink connector for easy integration with QWIIC, STEMMA QT compatible sensors produced by Sparkfun & Adafruit respectively.

All our ESP based Glyph boards support Arduino, MicroPython, and ESP-IDF development environments.

Dimensions

• Width: 22.8 mm
• Height: 50.8 mm
• Depth: 1.8 mm

The Glyph platform is built to enhance IoT projects and user convenience to use them.

Glyph boards are featured loaded with :

• USB Type-C Connector
• Onboard BMS circuit
• Auto Switch from Battery Power to USB Power
• Reverse Voltage Protection Diode
• Slide Switch for battery longevity
• High Quality Push Buttons
• Glink Connector compatible with QWIIC & STEMMA QT

The images in this site are just for representation, the actual product may slightly vary in terms of color. Rest assured, the Glyph has been thoroughly tested to ensure it is in excellent working condition.
