What is it?

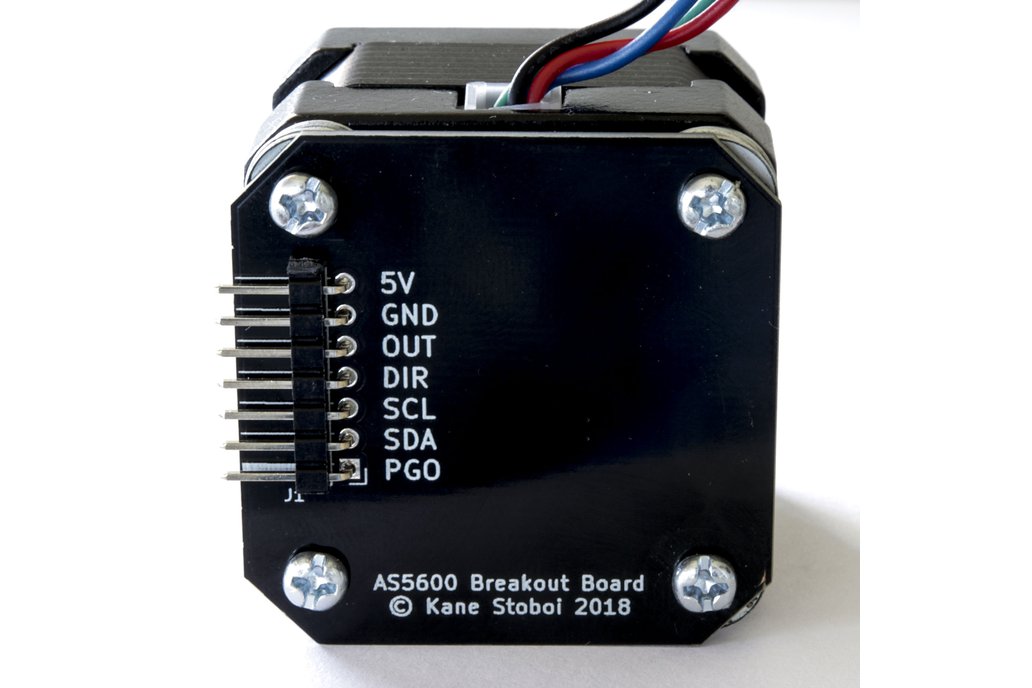

This product is a custom-designed PCB featuring an AS5600 magnetic encoder, specifically tailored for mounting on the back of a NEMA 17 stepper motor. It is engineered to deliver precise position measurements of the motor shaft, enabling accurate position tracking for various applications. The package includes spacers for easy mounting and a diametrically magnetized magnet to be placed on the stepper motor shaft.

NOTE: VCC accepts 3V3 or 5V. SDA and SDL logic level with be the same as VCC voltage.

Why did you make it?

This product was developed to address the need for accurate and reliable position tracking in stepper motor applications. The AS5600 magnetic encoder provides high-resolution measurements, ensuring precise control and feedback for your projects. By integrating this encoder with the popular NEMA 17 stepper motor, we aimed to create a solution that is both easy to implement and highly effective for engineers, hobbyists, and professionals alike.

What makes it special?

What sets this product apart is its seamless integration of the AS5600 magnetic encoder with the NEMA 17 stepper motor, ensuring accurate and dependable position measurements. The included spacers and diametrically magnetized magnet simplify the installation process, allowing for quick and hassle-free setup. Additionally, the high-resolution capabilities of the AS5600 encoder provide exceptional precision, making it ideal for applications requiring meticulous position tracking and control. Whether you're working on robotics, CNC machines, or other precision-driven projects, this PCB offers the reliability and performance you need.

Package Contents

• 1 x AS5600 Board
• 4 x Plastic spacers
• 1 x 7 pin angle header (male)
• 1 x Diametrically magnetised magnet (6 mm x 2.5 mm)
