Overview The CAN-ISO-2500 is a galvanic isolation device for use on CANBus networks in mobile or stationary applications. The device features up to 2500v of isolation between the HV and LV sides and supports CAN Baudrates of up to 1 Mbit/s.

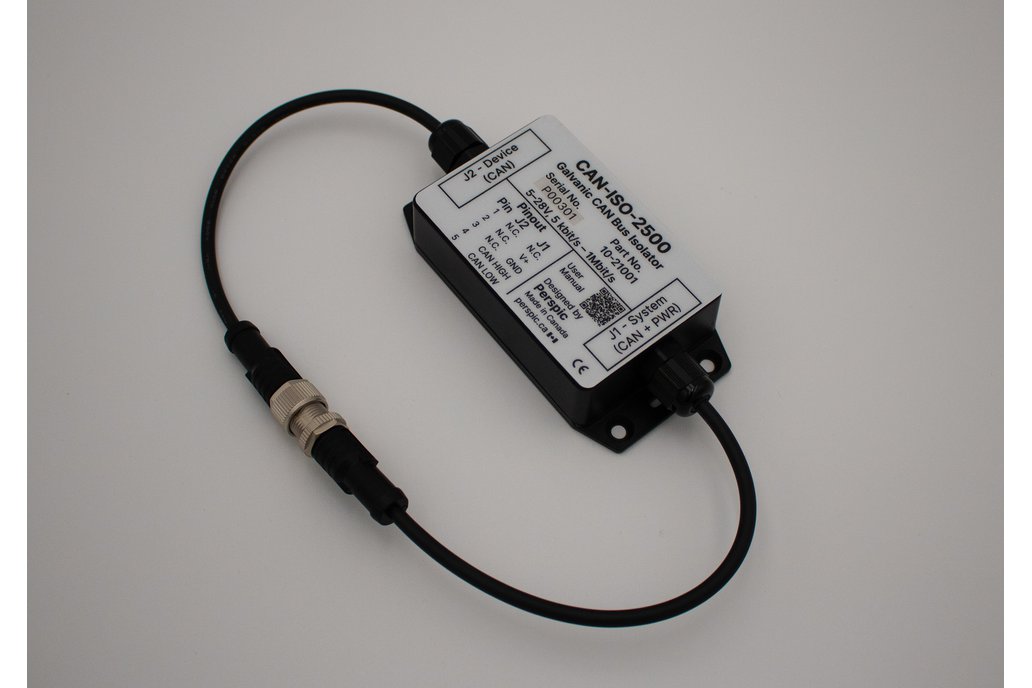

The CAN-ISO-2500 is available with M12 5-pin connector pigtails or M12 connectors directly on the case and features flange-style holes for mounting to a surface. The case is rated IP54 (protection against dust and splashing water) for mounting in harsh mobile equipment environments.

Features • Up to 2500 V Galvanic Isolation • Up to 1 Mbit/s data rate • Automatically adjusts to CAN baud-rates, no need to set data rate • Wide input voltage range of 6-28v DC • IP54 standard rating (IP65 or IP67 available on request)

Applications CAN Bus data transmission is ubiquitous on vehicles and mobile equipment and is a popular protocol for industrial communications applications. Many CAN data busses are powered by a single power supply; however, on busses with different power supplies voltage transients can travel across the data bus causing signal integrity problems and possibly destroy CAN connected devices.
