What is it

Refer to the design of fluidnc wiki.This was designed to control a wide variety of CNC machines. It can control 6 motors and many spindle and laser types. It is very easy to configure. You never have to compile any software. All configuration, upgrading, etc can be done via web browser.

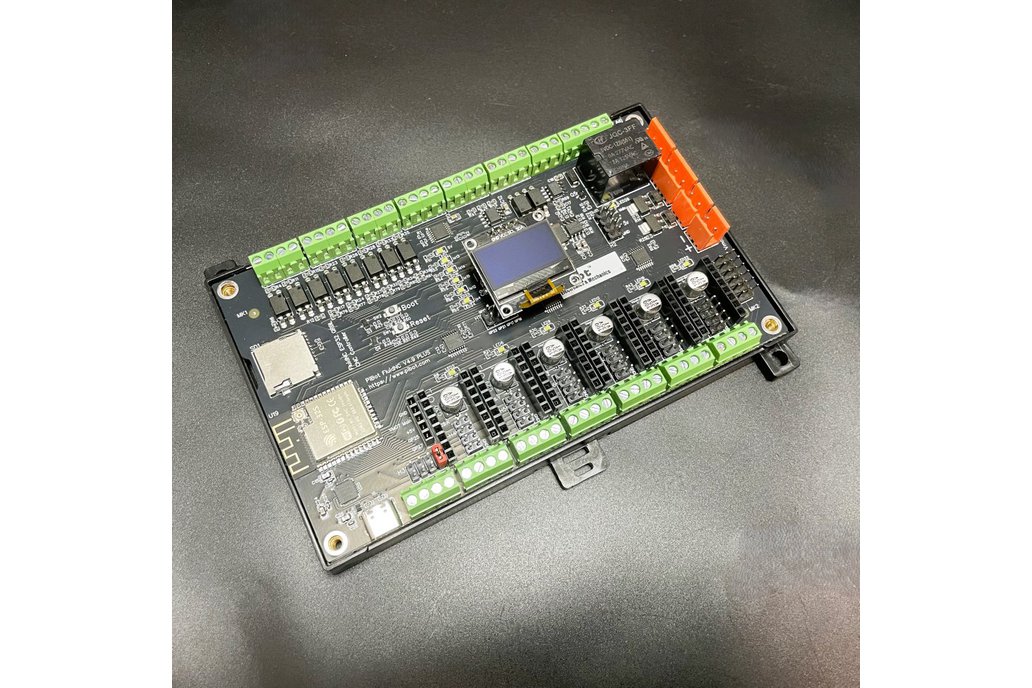

Designed for FluidNC ESP32 GRBL CNC.

More detail: https://www.pibot.com/pibot-fluidnc-grbl-cnc-controller-v4-9

Compatible with the official original firmware, we provide yaml configuration file.

• https://www.pibot.com/dls/fluidnc/V49p-usb-driver-firmware-webui-yaml-example.zip

• https://www.pibot.com/dls/fluidnc/V49p-XYZABC-factory-test-V1.yaml

• https://www.pibot.com/dls/fluidnc/V49p-XYYZ-coolant-V1.yaml

Feature

• Integrated ESP32 (Programmed with FluidNC. Includes a generic configuration)
• (6) Motor connectors for external stepper drivers (5v signals). Each motor has separate step, direction and enable signals.
• Inputs for switches (limits, probes, control, etc)
• Communication Mode: USB Cable or Blue Tooth or WIFI
• Spindles (many types supported). Some multi-spindle arrangements are possible like RS485 & laser on the same machine.
• 0-10V controlled spindles with additional forward and reverse direction signals
• PWM Speed controllers with optional separate enable signals
• Relay (on/off) controlled spindles.
• BESC (Brushless Motor) based spindles
• Lasers with PWM and enable
• Unused spindle 5V outputs can be used for any output function (coolant, etc)
• Micro SD card socket for local storage of gcode files
• Module socket for GPIO extenders and Pendant interfaces.
• Compatible with PiBot Stepper Motor Driver Rev2.3 TOSHIBA TB6600 (3.3V 5V or Dgnd logic max Output 4.12 - 4.5A)
• Compatible with PiBot Isolated Relay Board Rev2.3

How it works

Video Toturials

• https://youtu.be/IuNjBdTq1Fs

• https://youtu.be/sXs8gGfCyaw

• https://youtu.be/RVehtzwMaMI
