What is it?

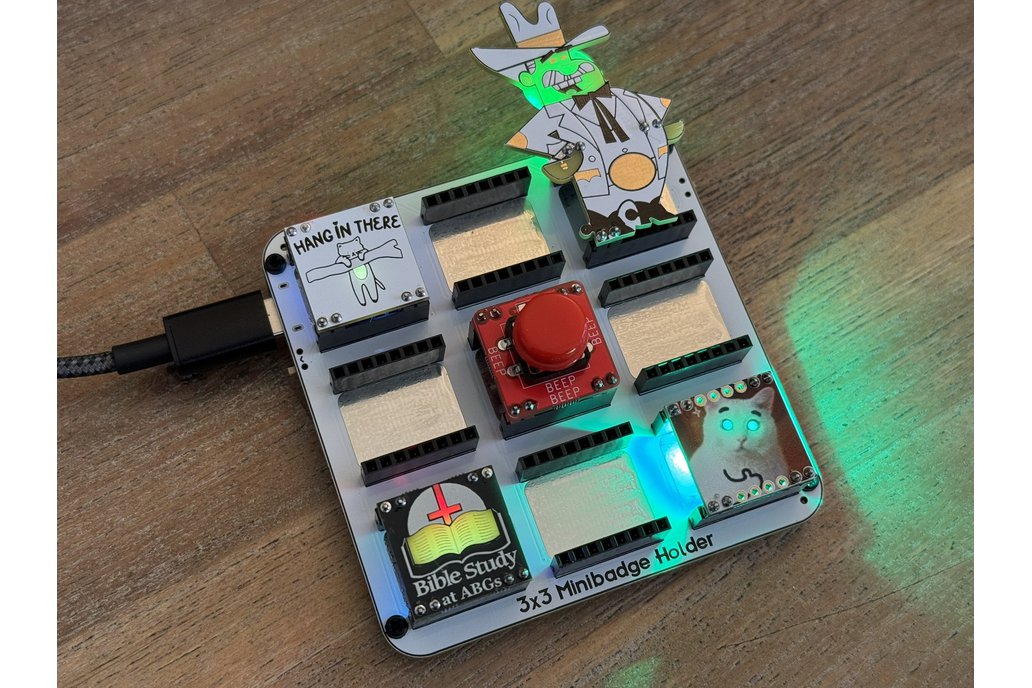

A 3x3 display for up to 9 minibadges. Powered with USB-C, and featuring the same adjustable clock module as the 2024 SAINTCON 10x10 grid. It features a laser-cut acrylic backing and M2 screws to hold it all together.

A quick warning note: The front reflective pads are a ground plane. Please ensure that no Minibadge components are going to short out against it.

Why did you make it?

To move beyond just making minibadges. I wanted to design a more complicated circuit and I wanted to include a clock module without programming anything. Compukidmike graciously allowed me to take a peek at the new 2024 SAINTCON 10x10 grid that used a program-free chip.

What makes it special?

It is only as special as minibadges are to you. However, I slaved away over a hot EDA for hours crafting this thing with love, and I learned lots. That makes it special to me :)

Other specs and details

• Size: 3.5cm x 3.5cm
• Total Minibadges: 9
• Power input: USB-C 5V 500mA
• Power output :
• 3.3V 600mA
• 5V 450mA
• Screws: M2
• Switches:
• 3.3V On/Off (will still power badges that draw from 5v)
• Clock Speed (high/low)

What's included?

• 1x assembled 3x3 board (all SMD components soldered)
• 18x pin headers for 9 total minibadge sockets
• mounting screws (subject to change)
• 1x laser cut clear acrylic back panel
