4 Decade Inductance 100nH – 1mH (Max. 2 Amp)

Name: 4 Decade Inductance 100nH – 1mH (Max. 2 Amp)
SKU: 35255
Price: 120.00 USD
Availability: InStock

4 Decade Inductance 100nH – 1mH (High Power)

Designed by PNP Instruments in United States of America

4 Decade Inductance 100nH – 1mH (Max. 2 Amp) 1

4 Decade Inductance 100nH – 1mH (Max. 2 Amp) 2

4 Decade Inductance 100nH – 1mH (Max. 2 Amp) 3

4 Decade Inductance 100nH – 1mH (Max. 2 Amp) 4

4 Decade Inductance 100nH – 1mH (Max. 2 Amp) 5

4 Decade Inductance 100nH – 1mH (Max. 2 Amp) 6

4 Decade Inductance 100nH – 1mH (Max. 2 Amp) 7

4 Decade Inductance 100nH – 1mH (Max. 2 Amp) 8

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

4 Decade Inductance 100nH – 1mH (High Power)

The 4 Decade Inductance Box offers precision with selectable inductances from 0.1μH to 1mH. Ideal for various applications, it handles up to Experience precision and flexibility with the 4 Decade Ind…

The 4 Decade Inductance Box offers precision with selectable inductances from 0.1μH to 1mH. Ideal for various applications, it handles up to

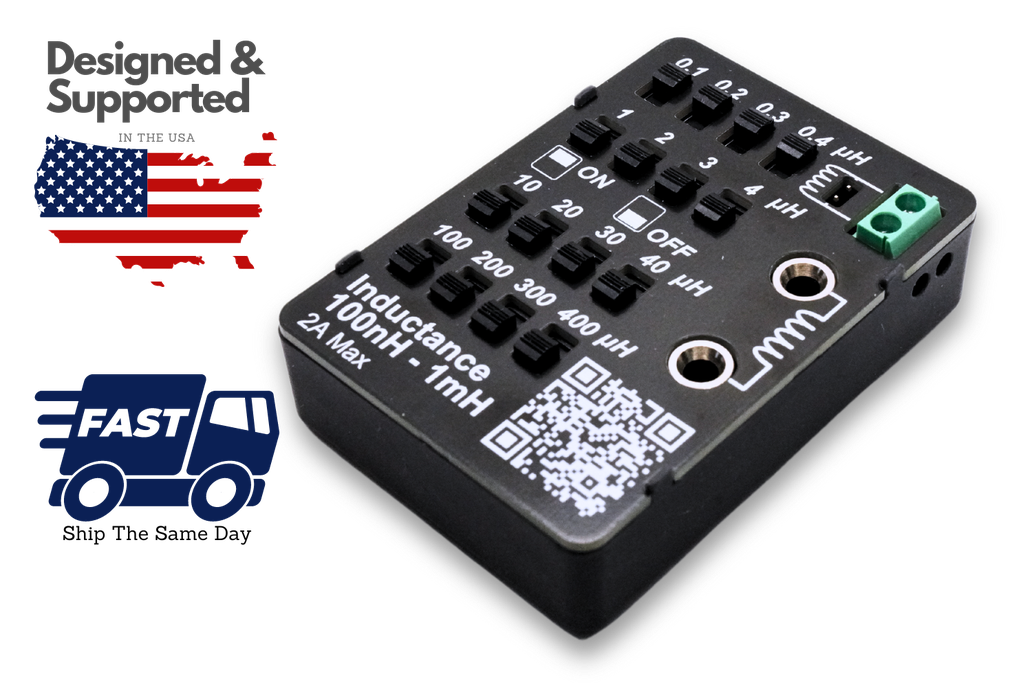

Experience precision and flexibility with the 4 Decade Inductance Box, featuring four selectable decades ranging from 0.1μH to 1mH.

Each toggle switch, when ON, adds its inductance value into the circuit via banana jacks, terminal blocks, or headers. When switched OFF, the inductance is effectively isolated from the circuit.

This versatile tool is ideal for a range of applications, including design, development, debugging, and educational endeavors. It offers a multitude of connection options, allowing users to interface with ease.

Capable of handling currents up to 2A for inductance values between 0.1μH and 100μH, with specific current limits outlined in the datasheet for values exceeding 100μH.

Inductance range: 0.1μH to 1mH. Currents: Maximum 2 Amp Max DC/AC Voltage: 100Volt Switch Resistance 100mΩ Max

Connector Options: - 5mm pitch Terminal Block: Accepts 26-14AWG solid core wire - 2-pin header: Accepts 2.54mm 2-pin/individual female pin headers - 4mm Banana Terminal: Compatible with off-the-shelf banana plug cables. Also can accommodate common Banana to BNC adaptor

Unit Dimensions: 75.1mm x 53.6mm x 20.7mm

Unit Weight: ±94g

Specifications:

Range	Tolerance	DC Resistance Typical (DCR)	Max Current
0.1μH	20%	7mΩ	2A
0.2μH	20%	14mΩ	2A
0.3μH	20%	21mΩ	2A
0.4μH	20%	28mΩ	2A
1μH	20%	41mΩ	2A
2μH	20%	123mΩ	2A
3μH	20%	82mΩ	2A
4μH	20%	164mΩ	2A
10μH	20%	64mΩ	2A
20μH	20%	128mΩ	2A
30μH	20%	192mΩ	2A
40μH	20%	256mΩ	2A
100μH	20%	272mΩ	2A
200μH	20%	544mΩ	1.8A
300μH	20%	816mΩ	1.6A
400μH	20%	1.088Ω	1.4A

Higher Inductance Settings | Inductance | Settings| Max. Current | | -------- |: --------|:--------:| | 500μH | 400μH+100μH | 1.2A | | 600μH | 400μH+200μH | 1.1A| | 700μH | 400μH+300μH | 1A | | 800μH | 400μH+300μH+100μH | 0.9A | | 900μH | 400μH+300μH+200μH | 0.85A | | 1mH | 400μH+300μH+200μH+100μH | 0.8A |

Note: Do not exceed the listed currents for the given settings!
