5 Decade Capacitance 10nF – 1mF (125V)

Name: 5 Decade Capacitance 10nF – 1mF (125V)
SKU: 35254
Price: 99.00 USD
Availability: InStock

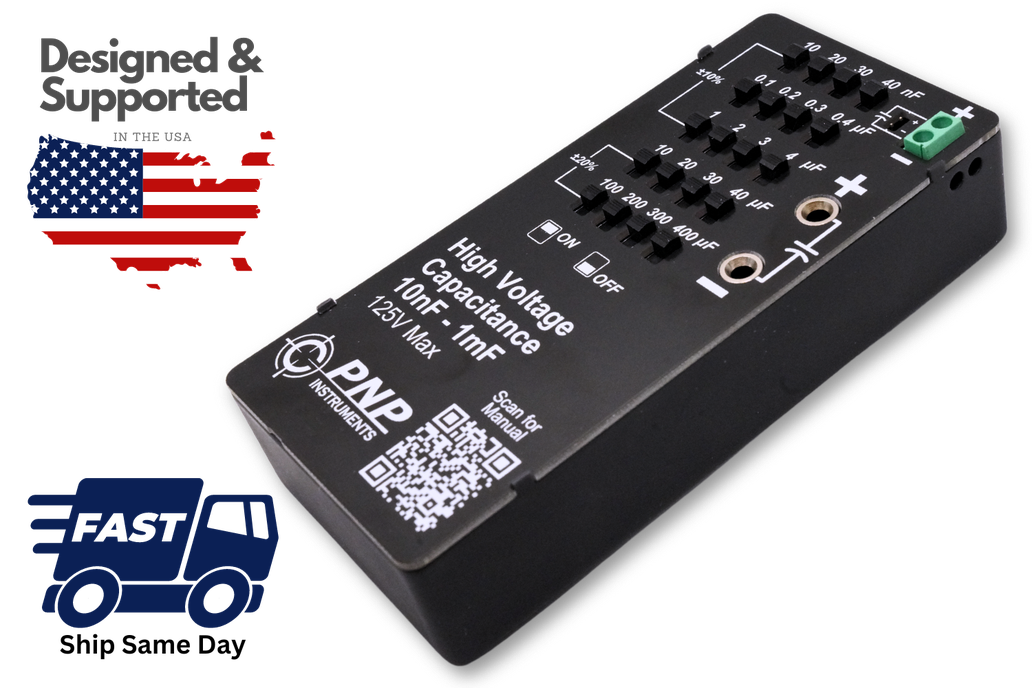

5 Decade Capacitance 125V 10nF – 1mF (High Voltage)

Designed by PNP Instruments in United States of America

5 Decade Capacitance 10nF – 1mF (125V) 1

5 Decade Capacitance 10nF – 1mF (125V) 2

5 Decade Capacitance 10nF – 1mF (125V) 3

5 Decade Capacitance 10nF – 1mF (125V) 4

5 Decade Capacitance 10nF – 1mF (125V) 5

5 Decade Capacitance 10nF – 1mF (125V) 6

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

5 Decade Capacitance 125V 10nF – 1mF (High Voltage)

The Five Decade Capacitance box has five decades from 0nF to 1mF. Explore precision with the high voltage 5 Decade Capacitance Box, ranging from 10nF to 1mF. Ideal for design, development, and educa…

The Five Decade Capacitance box has five decades from 0nF to 1mF.

Explore precision with the high voltage 5 Decade Capacitance Box, ranging from 10nF to 1mF. Ideal for design, development, and education, i Inductance range: 10nF – 1mF

Max DC/AC Voltage: 125V

Switch Resistance 100mΩ Max

Connector Options:

5mm pitch Terminal Block: Accepts 26-14AWG solid core wire
2-pin header: Accepts 2.54mm 2-pin/individual female pin headers
4mm Banana Terminal: Compatible with off-the-shelf banana plug cables. Can also accommodate a common Banana to BNC adaptor.

Unit Dimensions: 5.46x2.58x0.1.24" / 138.7x65.5x31.5mm

Unit weight: 7.5oz / 213g

Specifications:

Range	Tolerance	Max. Voltage
10nF	10%	125V
20nF	10%	125V
30nF	10%	125V
40nF	10%	125V
0.1μF	10%	125V
0.2μF	10%	125V
0.3μF	10%	125V
0.4μF	10%	125V
1μF	10%	125V
2μF	10%	125V
3μF	10%	125V
4μF	10%	125V
10μF	20%	125V
20μF	20%	125V
30μF	20%	125V
40μF	20%	125V
100μF	20%	125V
200μF	20%	125V
300μF	20%	125V
400μF	20%	125V

8ch 100Mbps Bidirectional Voltage Translator 8CHTRANS 8ch 100Mbps bidirectional push-pull/open-drain voltage translator adjustable from 1.5V-5.0V. The non-inverting level shifter offers push-pu Level-Shifter Adjustable from 1.5V-5.0V

The 8ch translator is an 8-bit non-inverting level shifter/translator.

The translator is capable of push-pull speeds up to 100Mbps or open-drain to speeds of 2Mbps.

The “B” side of the translator can be set from 1.8V to 5V.

The “A” side of the translator can be set from 1.5V to 3.3V with the DIP switches on the board.

Signals can be applied to the pin headers and/or the terminal post.

Applications

TTL level shifting CMOS level shifting SPI/UART/CAN/etc. level shifting I2C / I3C level shifting

Operation

Plug in any USB-C cable capable of supplying 5V with at least 100mA of current capability. (most USB interfaces can provide this with no issue). The blue LED near the USB connector will light up to indicate the board is powered. The possible switch configurations for the various voltages are shown below in Table 1. It is always required that Bank B side of the translator always have its voltage set equal or higher than Bank A side of the translator. Device will not be damaged if set wrong, just will not work properly as a translator.

Specifications

Electrical characteristics can be found in the datasheet for Part Number: TXS0108E Manufacturer: Texas Instruments

Weight: 0.73oz / 21g

Dimensions: 1.93x1.48x0.68" /48.9x17.7x17.3mm
