6 Decade Capacitance Board 0F - 100uF (with Cover)

Name: 6 Decade Capacitance Board 0F - 100uF (with Cover)
SKU: 35248
Price: 50.00 USD
Availability: InStock

6 Decade Capacitance Board with range 100pF to 100uF

Designed by PNP Instruments in United States of America

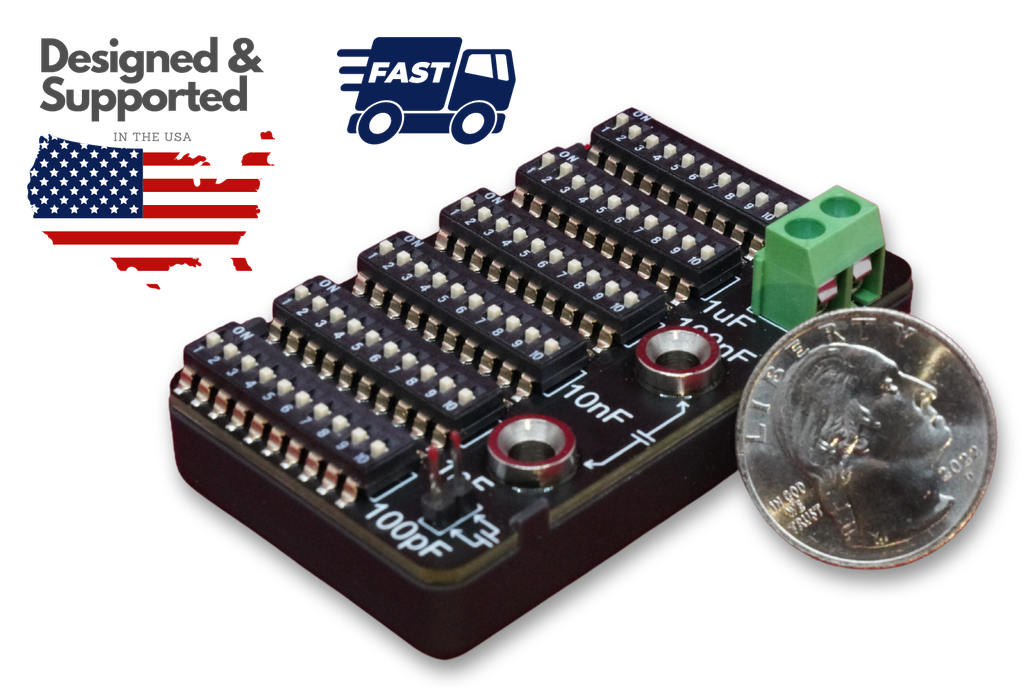

6 Decade Capacitance Board 0F - 100uF (with Cover) 1

6 Decade Capacitance Board 0F - 100uF (with Cover) 2

6 Decade Capacitance Board 0F - 100uF (with Cover) 3

6 Decade Capacitance Board 0F - 100uF (with Cover) 4

6 Decade Capacitance Board 0F - 100uF (with Cover) 5

6 Decade Capacitance Board 0F - 100uF (with Cover) 6

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

6 Decade Capacitance Board with range 100pF to 100uF

6 Decade Capacitance Board (100pF to 100uF) in steps of 100 pF, with Cover Stop wasting your time & space with big workbench-hogging decade/substitution boxes. You need to leave space on your workben…

6 Decade Capacitance Board (100pF to 100uF) in steps of 100 pF, with Cover

Stop wasting your time & space with big workbench-hogging decade/substitution boxes. You need to leave space on your workbench for your projects!

Decade/substitution board fits in your pocket. NO reason for it to be so BIG like others.

There are 3 unique ways to connect to this board that will save you time:

1) Use banana plugs

2) Use 0.1” pitch Male Headers

3) Use terminal block

Comes with a cover for more ergonomic grab and to protect the under board exposure.

Tolerance & Rating

          10μF     ± 10%    25V

          1μF       ± 10%    50V

          100nF   ± 5%      50V

          10nF     ± 5%      50V

          1nF       ± 1%      50V

          100pF   ± 1%      50V

Switch Contact Rating

24V 25mA (turning switch on/off)

100mA (not turning switch on/off)

Initial Resistance: ≤ 50mΩ

End of Life Resistance ≤ 100mΩ

Shipping Details:

We ship out the order the same day for orders made before 12pm PST.
Ship via USPS

We also sell a 5 Decade Inductance board and 7 Decade Resistance board. See my other items
