7 Decade Resistance & 6 Decade Capacitance Combo

Name: 7 Decade Resistance & 6 Decade Capacitance Combo
SKU: 35250
Price: 99.00 USD
Availability: InStock

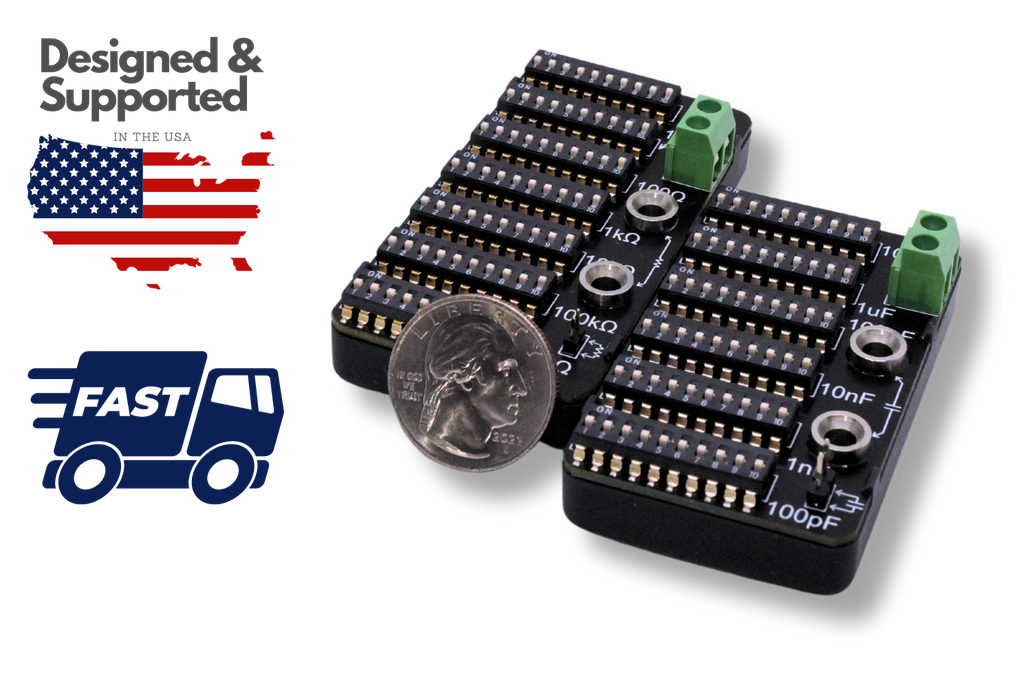

7 Decade Resistance & 6 Decade Capacitance Boards Combo

Designed by PNP Instruments in United States of America

7 Decade Resistance & 6 Decade Capacitance Combo 1

7 Decade Resistance & 6 Decade Capacitance Combo 2

7 Decade Resistance & 6 Decade Capacitance Combo 3

7 Decade Resistance & 6 Decade Capacitance Combo 4

7 Decade Resistance & 6 Decade Capacitance Combo 5

7 Decade Resistance & 6 Decade Capacitance Combo 6

7 Decade Resistance & 6 Decade Capacitance Combo 7

7 Decade Resistance & 6 Decade Capacitance Combo 8

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

7 Decade Resistance & 6 Decade Capacitance Boards Combo

This combo package consists of: 1 unit 7 decade resistance board 0-10 MΩ (1% Accuracy) 1 unit 6 decade capacitance board 0F - 100uF (1%,5%,10% Accuracy) Connector types on all 3 boards: 1) Use ba…

This combo package consists of: 1 unit 7 decade resistance board 0-10 MΩ (1% Accuracy) 1 unit 6 decade capacitance board 0F - 100uF (1%,5%,10% Accuracy)

Connector types on all 3 boards: 1) Use banana plugs 2) Use 0.1” pitch Male Headers 3) Use terminal block

### 7 Decade Resistance Board 1% (0-10 MΩ) 1/4 Watt power capable

Switch Contact Rating

24V 25mA (turning the switch on/off)

100mA (not turning the switch on/off)

Initial Resistance: ≤ 50mΩ

End of Life Resistance ≤ 100mΩ

### 6 Decade Capacitance Board 0F - 100uF Tolerance & Rating

          10μF     ± 10%    25V

          1μF       ± 10%    50V

          100nF   ± 5%      50V

          10nF     ± 5%      50V

          1nF       ± 1%      50V

          100pF   ± 1%      50V

Switch Contact Rating

24V 25mA (turning switch on/off)

100mA (not turning switch on/off)

Initial Resistance: ≤ 50mΩ

End of Life Resistance ≤ 100mΩ
