100W FM VHF 80Mhz to 180Mhz RF Power Amplifier

Name: 100W FM VHF 80Mhz to 180Mhz RF Power Amplifier
SKU: 6320
Price: 48.90 USD
Availability: OutOfStock

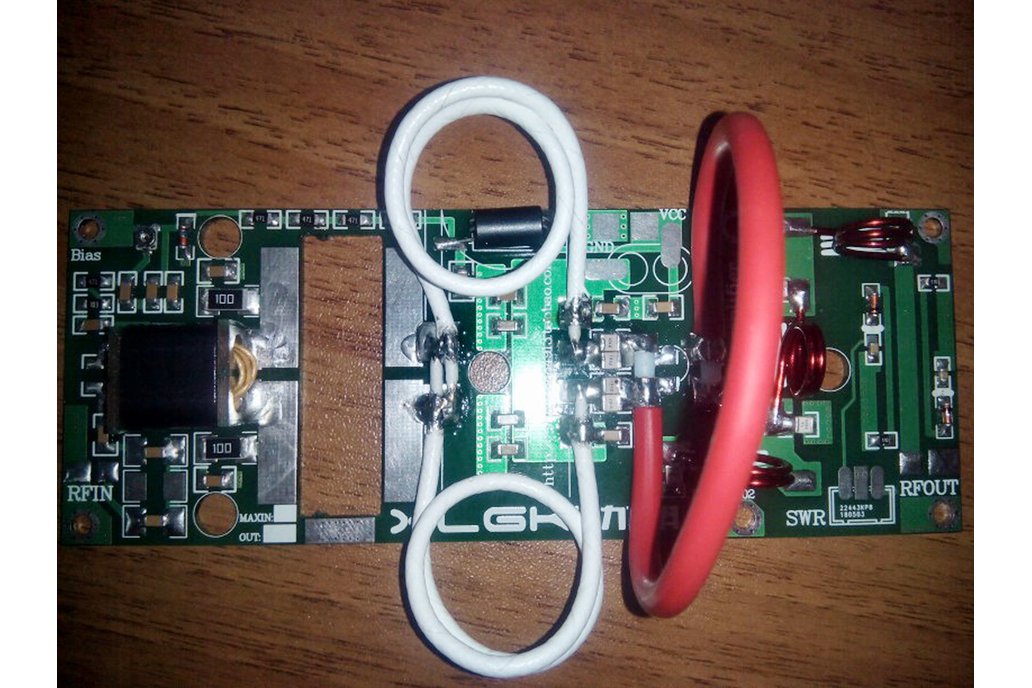

100W FM VHF 80Mhz to 180Mhz RF Power Amplifier Board AMP DIY KITS For Ham Radio Radio station wireless

Sold By power_market

This seller is taking a break. Sign up below to get an email when they're back!

100W FM VHF 80Mhz to 180Mhz RF Power Amplifier 1

100W FM VHF 80Mhz to 180Mhz RF Power Amplifier 2

100W FM VHF 80Mhz to 180Mhz RF Power Amplifier 3

100W FM VHF 80Mhz to 180Mhz RF Power Amplifier 4

100W FM VHF 80Mhz to 180Mhz RF Power Amplifier 5

100W FM VHF 80Mhz to 180Mhz RF Power Amplifier 6

100W FM VHF 80Mhz to 180Mhz RF Power Amplifier 7

100W FM VHF 80Mhz to 180Mhz RF Power Amplifier 8

100W FM VHF 80Mhz to 180Mhz RF Power Amplifier 9

100W FM VHF 80Mhz to 180Mhz RF Power Amplifier 10

100W FM VHF 80Mhz to 180Mhz RF Power Amplifier 11

2018-08-23T00:58:19.732Z-fm transmitter.jpg

$48.90

On A Break

Welcome to my Electronics Shop! Contact for consulting service @ electronics / DC-DC energy conversion / Battery diagnostic & repair / electric scooter fix & parts Tha solution for U

100W FM VHF 80Mhz to 180Mhz RF Power Amplifier Board AMP DIY KITS For Ham Radio Radio station wireless

Description: Features: Amplifier output: 80--100W Frequency range 80--120Mhz ( input 1--1.5W) 140--180Mhz (3--4W) Power : DC 24--26v current: 5-7A Perfect for amador radio broadcast FM station Ra…

Description:

Features:

Amplifier output: 80--100W

Frequency range 80--120Mhz ( input 1--1.5W) 140--180Mhz (3--4W)

Power : DC 24--26v current: 5-7A

Perfect for amador radio broadcast FM station Radio broadcast

**INSTALLATION STEPS**
1: According to the picture data weld all components.
2: debugging steps: Welding completed, installed radiator
First, do not install MRF186 (XRF186)
Connect the power supply 24V adjust the bias voltage of 3.5V and then disconnect the power supply
Install the MOS power tube MRF186 (XRF186), pay attention to unplug the electric soldering iron to prevent electrostatic breakdown of MOS power transistor
3: connect the power meter, dummy load, first turn on the power, adjust the quiescent current, 200--800MA, 400MA is the best
4:  Adjust the variable capacitor to obtain optimum output power
Warning: input maximum FM VHF 1.5W, maximum 4W, maximum 7W-8W output UHF, maximum 100W, Output Disable open circuit, short circuit



Package Contents
100% Brand New
1 x 100W FM VHF 80Mhz-170Mhz RF Power Amplifier Board For Ham Radio DIY kits DC 24v

NOTE:

**All parts need to be soldered**
