In:3-30V Out:0.5-30V Buck Boost 25W adjustable

Name: In:3-30V Out:0.5-30V Buck Boost 25W adjustable
SKU: 6374
Price: 3.90 USD
Availability: Discontinued

Buck BoostModule Input 3-30V Output 0.5-30V max 25W adjustable High Efficiency 95% Low ropple 40mV max

Sold By power_market

This seller is taking a break. Sign up below to get an email when they're back!

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

Visit Store

More From power_market:

UPS battery cell Lith boost out 5V-27V adjustable

power_market

$14.80

Precise POWER SUPPLY adjustable OUT 1V to 36V 200W

power_market

$14.80

LOW power Wireless SERIAL range 1Km 433 to 473MHz

power_market

$24.90

Wireless Serial TRANSPARENT LINK data @ any place

power_market

$40.95

More From Power

PS-1A Adjustable mini switch mode DC-DC Regulator

Invinyx Electronics

$14.75

CR2450 Coin Cell Surrogate

RossGK Tangibles

$3.60

LiFePO4wered/USB

Silicognition LLC

$13.95

USB-C power source for 8080A

Tomas Pavlovic

$33.00

In:3-30V Out:0.5-30V Buck Boost 25W adjustable 1

In:3-30V Out:0.5-30V Buck Boost 25W adjustable 2

In:3-30V Out:0.5-30V Buck Boost 25W adjustable 3

2015-12-14T06:30:32.818Z-buck boost 3.jpg

Welcome to my Electronics Shop! Contact for consulting service @ electronics / DC-DC energy conversion / Battery diagnostic & repair / electric scooter fix & parts Tha solution for U

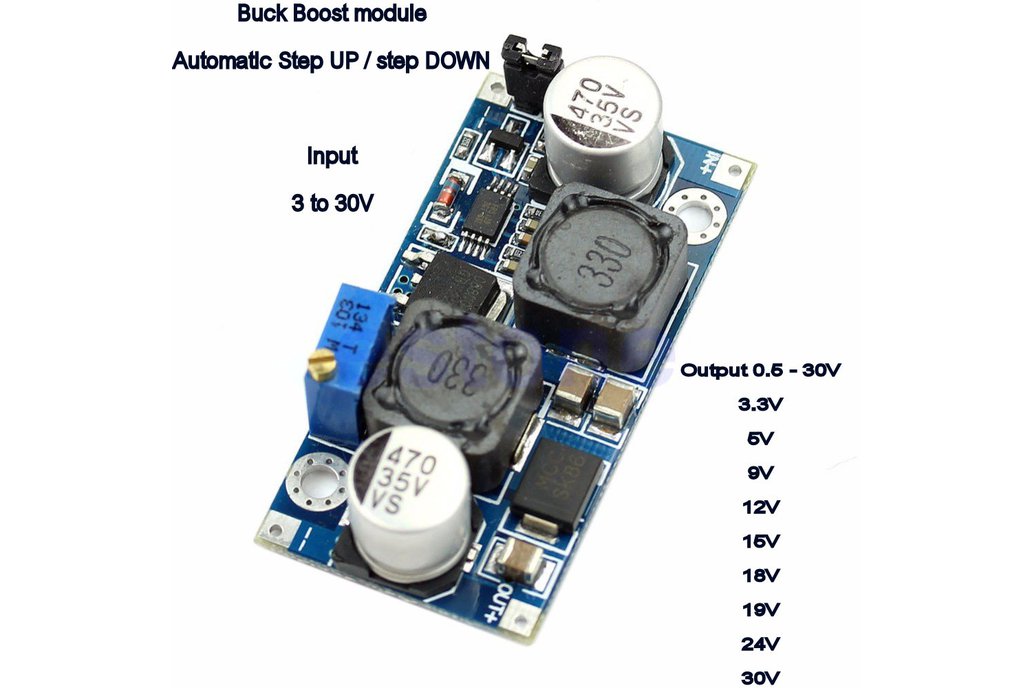

Buck BoostModule Input 3-30V Output 0.5-30V max 25W adjustable High Efficiency 95% Low ropple 40mV max

**Output voltage can be higher or lower than Input voltage** Modules nature: non-isolated Boost Buck (SEPIC) Rectification: Non-synchronous rectification Input voltage: DC 3-30V Output voltage: DC 0…

**Output voltage can be higher or lower than Input voltage**

Modules nature: non-isolated Boost Buck (SEPIC)
Rectification: Non-synchronous rectification
Input voltage: DC 3-30V
Output voltage: DC 0.5-30V
Input current: 3A (MAX)
Power: 25W (MAX)
Conversion efficiency: 95% (MAX)
Switching frequency: 150KHz
Output ripple: 40mV (max)
Load regulation: ± 0.5%
Voltage regulation: ± 2.5%
Operating Temperature: -40 ° C to +85 ° C
Dimension: 48 x 23 x 14 mm
Output short circuit protection: Yes.( If short circuit, the output will be 0, until exclude short-circuit )
Typical output, do not need heatsink (reference):

Input 12V----Output 12V/2A; 24W Input 12V----Output 5V/3A; 15W Input 12V----Output 13.8V/1.8A; 25W Input 5V----Output 3.3V/3A; 9.9W

Enjoy!!
