What is it?

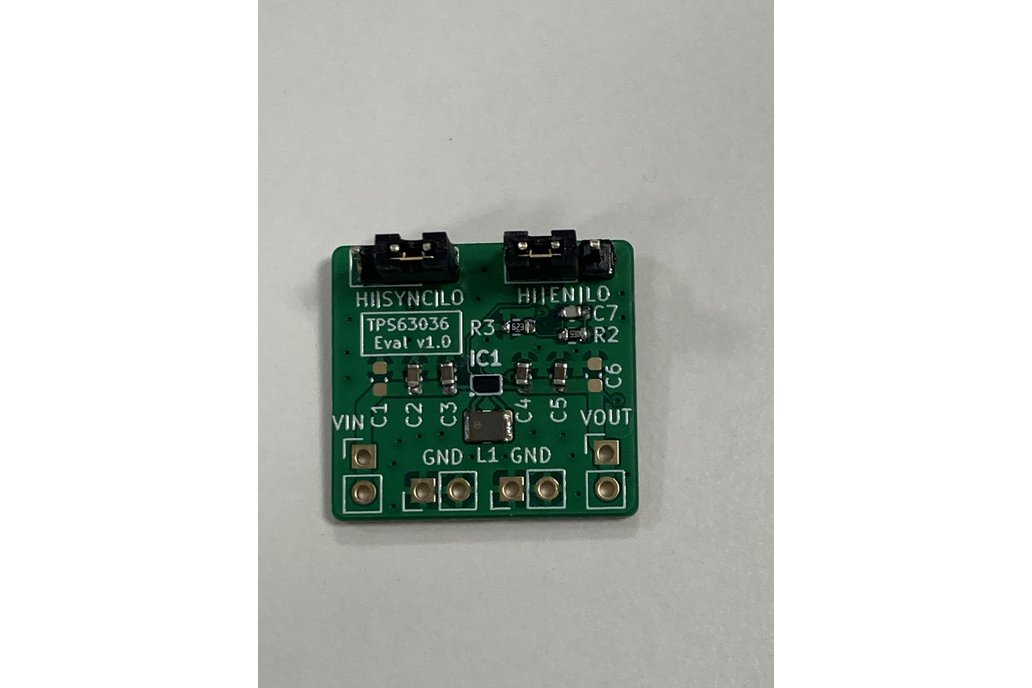

TPS63036 evaluation board based on the Texas Instruments reference design. The output is configured for 3.3V output but the output setting resistors can be replaced by the end-user to set whatever output voltage they need. There are pin headers fitted to connect the EN and SYNC pin to VDD or GND.

Why did you make it?

The board was originally designed in order to evaluate the performance of the TPS63036 buck/boost regulator for another device I am currently prototyping. These boards are the surplus supply of the initial batch of assembled boards. All boards are fully assembled and tested.

What makes it special?

The small form factor of these boards make them ideal for many hobby electronics projects. The pin headers can be removed to further reduce the height of the board and components to only ~3mm
