Description:

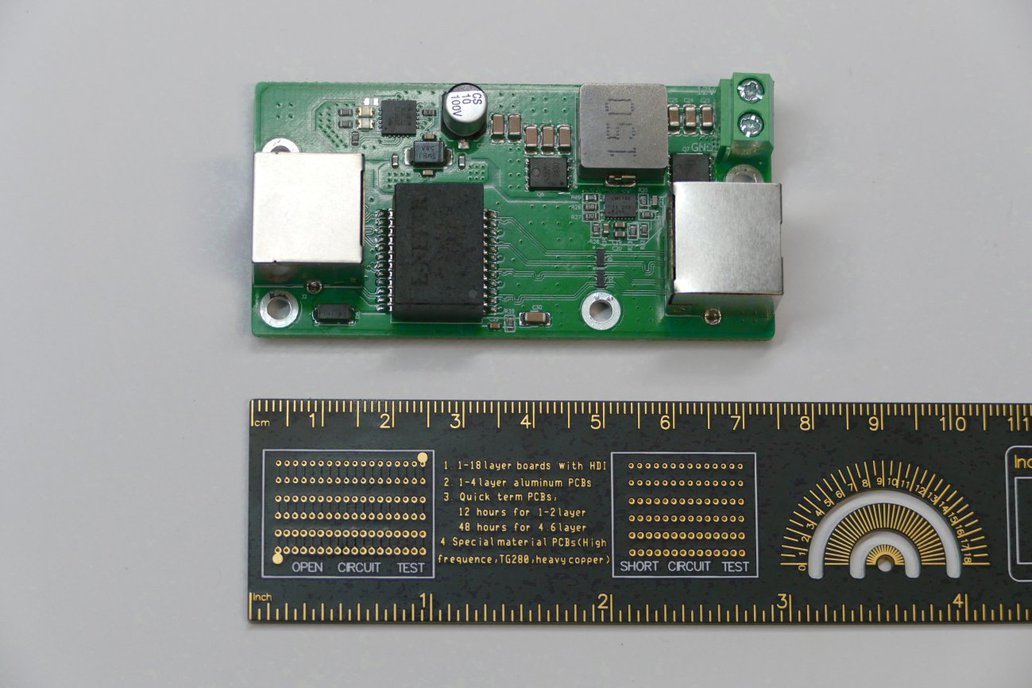

PoE_v.1.2 module is an Ethernet PoE splitter for 10/100/1000Mbps LAN networks which supports such standarts as IEEE 802.3bt with PoE high-power PD interface with automatic MPS & autoclass recognition.

Module supports Power Levels for up to Type-4 90W and Type-3 60W Operation , power modes higher than 25W must be implemented together with appropriate cooling solutions / additional heatsink.

The Automatic MPS function of the module enables applications requiring very low power standby modes. The PoE_v1.2 module automatically generates the necessary pulsed current to maintain the PSE power.

The PoE_v1.2 module also implements a delay function to allow the remote PSE to complete its inrush phase before releasing the Power Good (PG) output. This ensures that the IEEE802.3bt (draft) startup requirements are met. The Auto class enable input also allows advanced system power optimization modes compliant with IEEE802.3bt (draft) standard.

Module dimensions: 75mm x 35mm x 18mm (max)

Module features:

• PG Output with Inrush Completion Delay
• Compliant to PSE Inrush
• Automatic Maintain Power Signature (MPS)
• Auto-adjust MPS for Type 1-2 or 3-4 PSE
• Supports Ultra-Low Power Standby Modes
• Supports Autoclass Operation
• Supports PoE++ PSE

PoE specification details:

• PoE standards supported: IEEE 802.3bt /.3at /3.af or passive

• Input voltages range: 9V-75V DC (special input switching controller installed)

• Output voltage: 12V DC

• Custom voltage configurations are possible (MOQ 20pcs) with the next output voltages : 3V3, 5V, 9V, 12V, 24V, 48V

Additional resources:

3D CAD model (STEP)

Technical details: Some of the characteristics of our PoE :

Switching Controller 100-V synchronous buck DC/DC controller with wide duty-cycle range -40 to 150 C • Functional Safety-Capable – Documentation available to aid functional safety system design • Versatile synchronous buck DC/DC controller – Wide input voltage range of 5.5 V to 100 V – 150°C maximum junction temperature – 0.8-V reference with ±1% feedback accuracy – Adjustable output voltage from 0.8 V to 60 V – 40-ns tON(min) for high VIN / VOUT ratio – 140-ns tOFF(min) for low dropout – Lossless RDS(on) or shunt current sensing – Optimized for CISPR 11 and CISPR 32 Class B EMI requirements • Switching frequency from 100 kHz to 1 MHz – SYNC in and SYNC out capability – Selectable diode emulation or FPWM • 7.5-V gate drivers for standard VTH MOSFETs – 14-ns adaptive dead-time control – 2.3-A source and 3.5-A sink capability • Fast line and load transient response – Voltage-mode control with line feedforward – High gain-bandwidth error amplifier • Inherent protection features for robust design – Adjustable output voltage soft start – Hiccup-mode overcurrent protection – Input UVLO with hysteresis – VCC and gate-drive UVLO protection – Precision enable input and open-drain PGOOD indicator for sequencing and control – Thermal shutdown protection with hysteresis

Power Over Ethernet (PoE) Controllers ROHS range -40 to 125 C Features 1• IEEE 802.3bt (Draft) PD Solution for Type 3 or Type 4 PoE • Supports Power Levels for Type-4 ( TPS2372-4) 90-W and Type-3 ( TPS2372-3) 60-W Operation • Robust 100 V Hotswap MOSFET • Allocated Power Indicator Outputs • PG Output with Inrush Completion Delay – Compliant to PSE Inrush • Automatic Maintain Power Signature (MPS) – Auto-adjust MPS for Type 1-2 or 3-4 PSE – Supports Ultra-Low Power Standby Modes • Supports Autoclass Operation • Supports PoE++ PSE

SMD Pulse Transformers(LAN) IEEE802.3bt ROHS range -40 to 85 C
