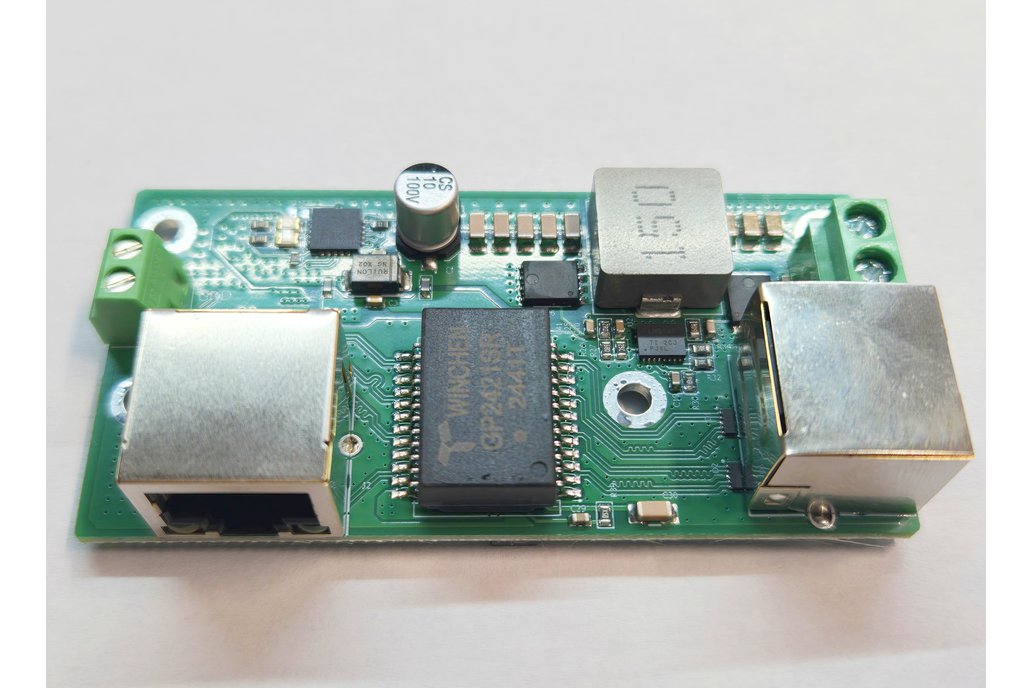

Ethernet PoE splitter for 10/100/1000Mbps LAN with PoE++ support and double DC outputs : 12V and 5.1V
Designed by ProtoDevs GmbH in Germany
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
PD.PoE Splitter v.3 module features: • Double output voltages: 12V + 5.1V • PG Output with Inrush Completion Delay • Compliant to PSE Inrush • Automatic Maintain Power Signature (MPS) • Auto-adjust M…
Read More…• Double output voltages: 12V + 5.1V • PG Output with Inrush Completion Delay • Compliant to PSE Inrush • Automatic Maintain Power Signature (MPS) • Auto-adjust MPS for Type 1-2 or 3-4 PSE • Supports Ultra-Low Power Standby Modes • Supports Autoclass Operation • Supports PoE++ PSE PoE specification details: • PoE standards supported: IEEE 802.3bt /.3at /3.af or passive • Input voltages range: 9V-75V DC (special inp
PoE_v3 module is an Ethernet PoE splitter for 10/100/1000Mbps LAN networks which supports such standards as IEEE 802.3bt with PoE high?power PD interface with automatic MPS & auto class recognition and have 2x (double) DC voltage outputs: 12V + 5.1V at the same time. This is convenient solution for any type of PoE powering with a speed up to 1 Gbps and a need of having two output voltages simultaneously. For example, Raspberry Pi 4 or Raspberry Pi 5 will work without any problem having 5.1V @ 3A as a power input, 12V could be used to control motors from that Raspberry PCB. Module supports 9V to 75V PoE wide input voltage range together with power Levels for up Type-3 60W Operation, power modes higher than 25W must be implemented together with appropriate cooling solutions / additional heatsink. The Automatic MPS function of the module enables applications requiring very low power standby modes. The PoE_v3 module automatically generates the necessary pulsed current to maintain the PSE power.
Operational temperature: -40 … 85 C Storage temperature: -55 to 150 C Input voltages range (J2 connector) : 9V to 75V PoE wide input voltage range ESD rating: Charged device model (CDM), per JEDEC specification JESD22-C101, all V pins: +-250V Max output current supported: 5A@12V + 3A@5.1V for v.3 Mass: 32 grams for v.3 Communication speed (Ethernet): up to 1 Gigabit per second (1 Gbps) 10/100/1000 Mbps supported
Double DC Voltage output (12V + 5.1V) makes it ideal with any kind of SBC usage by having the low voltage for single-board computer and 12V for motors / lamps / videocameras or other peripherals. No need to use yet another PCB to decrease the voltage to 5V for SBC.
1) Up-to-date Datasheet (PDF) - LINK 2) 3D CAD STEP model - LINK
PD.PoE v3 module has the next blocks: 1) A switching controller 100-V with synchronous buck DC/DC controller with wide duty-cycle range -40 to 150 C. Functional Safety-Capable – Documentation available to aid functional safety system design 2) 12V Versatile synchronous buck DC/DC controller – Wide input voltage range of 5.5 V to 100 V – 150°C maximum junction temperature – 0.8-V reference with ±1% feedback accuracy – Adjustable output voltage from 0.8 V to 60 V – 40-ns tON(min) for high VIN / VOUT ratio – 140-ns tOFF(min) for low dropout – Lossless RDS(on) or shunt current sensing – Optimized for CISPR 11 and CISPR 32 Class B EMI requirements • Switching frequency from 100 kHz to 1 MHz – SYNC in and SYNC out capability – Selectable diode emulation or FPWM • 7.5-V gate drivers for standard VTH MOSFETs – 14-ns adaptive dead-time control – 2.3-A source and 3.5- A sink capability • Fast line and load transient response – Voltage-mode control with line feedforward – High gain-bandwidth error amplifier • Inherent protection features for robust design – Adjustable output voltage soft start – Hiccup-mode overcurrent protection – Input UVLO with hysteresis – VCC and gate-drive UVLO protection – Precision enable input and open-drain PGOOD indicator for sequencing and control – Thermal shutdown protection with hysteresis 3) Power Over Ethernet (PoE) Controller ROHS range -40 to 125 C Features 1• IEEE 802.3bt (Draft) PD Solution for Type 3 or Type 4 PoE • Supports Power Levels for Type-4 90-W and Type-3 60-W Operation • Robust 100 V Hotswap MOSFETs • Allocated Power Indicator Outputs • PG Output with Inrush Completion Delay – Compliant to PSE Inrush • Automatic Maintain Power Signature (MPS) – Auto-adjust MPS for Type 1-2 or 3-4 PSE – Supports Ultra-Low Power Standby Modes • Supports Autoclass Operation • Supports PoE++ PSE 4) 5V synchronous step down DC-DC converters optimized for applications with high power density. Features : DCS-Control™ topology ,Input voltage range: 3 V to 17 V, Up to 3-A output current, Adjustable output voltage from 0.9 V to 6 V, Pin?selectable output voltage (nominal, + 5%), Programmable soft start and tracking, Seamless power save mode transition, Quiescent current of 17 µA (typical), Short circuit protection, Overtemperature protection. 5) SMD Pulse Transformer (LAN) IEEE802.3bt ROHS range -40 to 85
