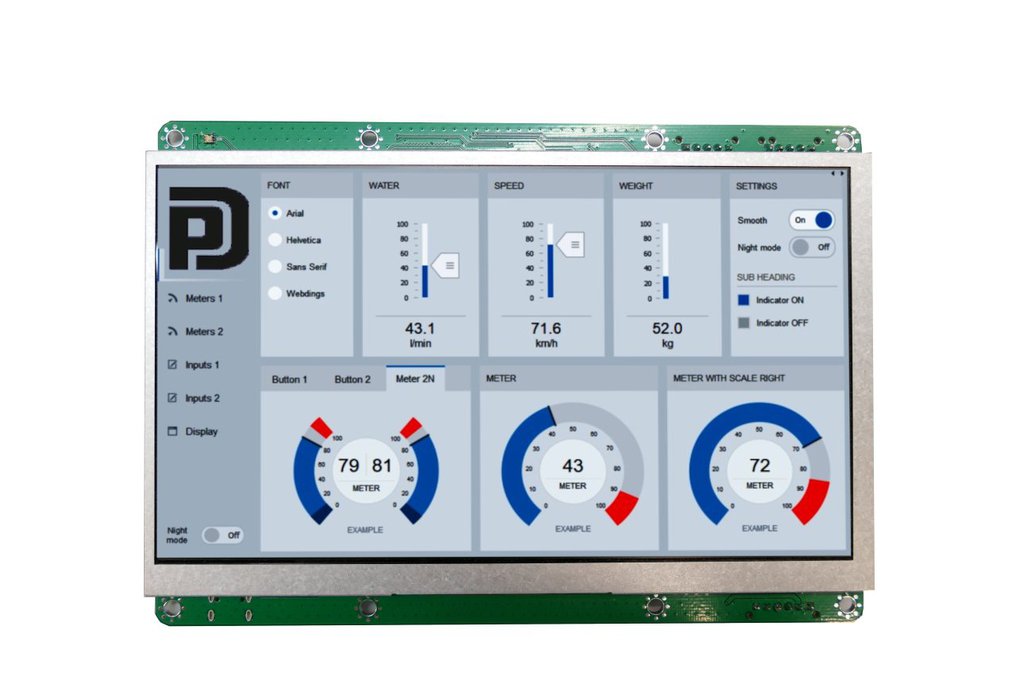

Industrial-grade Smart Touch HMI Display Module
Designed by ProtoDevs GmbH in Germany
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Description “PDScreen” device family is an Industrial grade (-30...85 deg C) Smart Touch HMI TFT Displays which support different powering options and API communication interfaces (like I2C, UART, Et…
Read More…“PDScreen” device family is an Industrial grade (-30...85 deg C) Smart Touch HMI TFT Displays which support different powering options and API communication interfaces (like I2C, UART, Ethernet) to operate as HMI touch module giving the system a full power of graphical user interface (GUI).
PD.Screen supports such a media types (should be stored into PD.Screen memory uploaded via I2C or UART or LAN)
BMP images with 24 bits per pixel color
JPG images, colored with 24 bits per pixel color
PNG images, with 24 bits per pixel color or 32 bits per pixel color (with A channel)
fonts in a special FNT format
Using of JPG images is preferrable as there is an embedded hardware support for JPG decoding.
PD.Screen is optimized for Outdoor usage consuming the minimal power possible together with immediate boot-up makes it very power-efficient solution. Typical current consumption @12V = 260 mA (with max brightness = 1008 Lux)
Ideal for :
Post boxes
Outdoor vending machines
Parking Solutions
Outdoor terminals
Cigarette kiosks
Autonomous 24h outdoor grocery stores
Public transportation multi info-display systems with a single central controller
Entrance/Security controllers (special glass could be installed : IK9/IK10)
The API commands are send via I2C/UART using defined format (in the documentation) giving the ability for users to use all-in-one solution for any kind of outdoor applications.
PDScreen modules family consist of 4” , 7”, 10.1” industrial-grade TFT matrixes + driver board with a firmware which gives a user a simple interface to interact by using I2C / Uart / Ethernet. All the complex hardware-type interfaces and commands between PDScreen MCU / RAM / Flash and peripherals are translated into the easy-to-implement interface commands which could be read and write to the several communication interfaces of the PDScreen modules. There are examples written in Python included which shows several examples, also the API included into the document attached to evaluate the principles and command list. PDScreen module based on the newest STM32 microcontroller utilizing the power and cost-effectivines of the latest industry standarts. STM32 MCU is designed by EU-based company - STMicroelectronics.
There are several PDScreen variants available : PDScreen 7inch m30 : 7-inch capacitive touch TFT module PDScreen 7inch m30 nt : 7-inch without touch support
ProtoDevs GmbH supports the helpdesk line in case of additional questions or PDScreen hardware / firmware / software customization requests - https://www.protodevs.de/forum/
(For PDScreen 7inch m30 ETH v.1.5): Block diagram
PD.Screen Font Encoder could be downloaded from our web forum (Web-Portal-link)
3D CAD Models (STEP) could be downloaded from our web forum (Web-Portal-link)
