SO24, SOJ24, SOP24, SOIC24, BSOJ24, PG-DSO-24, EMP24, DMP24, MFP24 1.27mm(0.05") to 2 x IDC2x6.

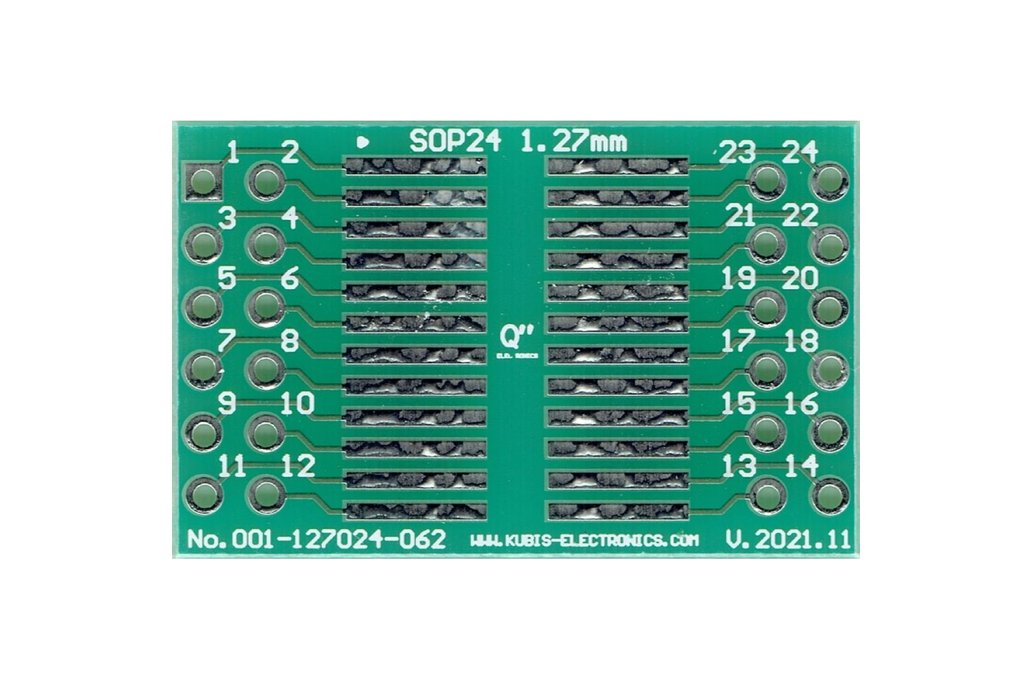

PCB adapter for IC in packages: SO24, SOJ24, SOP24, SOIC24, BSOJ24, PG-DSO-24, EMP24, DMP24, MFP24 1.27mm(0.05") to 2 x IDC2x6 connectors. Usefull for small microcontrollers and peripherial IC.

                  Technical data:
                              Order number: PCB-001-127024-062
                              Dimensions: 27.94mm x 17.78mm(1.1" x 0.7")
                              PCB thickness: 1.5mm(0.06")
                              Raster: 2.54mm(0.1")
                              Path width: 10mils(0.254mm)(0.01")
                              Connectors holes diameter: 0.9mm(0.035")
                              Weight: 1.44g
                              Material: FR4
                              One side PCB
                              Copper thickness: 35um
                              Solder mask
                              Description mask
                              The PCB have been electrically tested.
                              Compliance with directive RoHS (2011/65/UE)
                              The product is not from China and is safe for the user.

                  PCB adapter fits for packages:
                              SO24 pin pitch 1.27mm(0.05")
                              SOJ24 pin pitch 1.27mm(0.05")
                              SOP24 pin pitch 1.27mm(0.05")
                              SOIC24 pin pitch 1.27mm(0.05")
                              BSOJ24 pin pitch 1.27mm(0.05")
                              EMP24 pin pitch 1.27mm(0.05")
                              DMP24 pin pitch 1.27mm(0.05")
                              MFP24 pin pitch 1.27mm(0.05")
                              PG-DSO-24 pin pitch 1.27mm(0.05")
                              PG-DSO-24-xx pin pitch 1.27mm(0.05")

                  PCB adapter fits integrated circuits for producers:
                              AMD
                              Allegro MicroSystems
                              AMS-Osram
                              Analog Devices
                              Atmel
                              Burr Brown
                              Catalyst Semiconductor Inc.
                              Cirrus Logic
                              CML Microcircuits
                              Cypress Semiconductor
                              Diodes Inc.
                              Epson
                              Fairchild Semiconductor
                              Freescale Semiconductor
                              Harris Corp.
                              IDT
                              Infineon
                              Intersil
                              ISSI
                              Lantiq
                              Linear Technology
                              LSI/CSI
                              Lumissil Microsystems
                              Maxim Integrated
                              MaxLinear
                              Micrel
                              Microchip
                              Microsemi Corp.
                              Motorola
                              National Semiconductor
                              Nexperia USA Inc.
                              JRC/NJR/Nisshinbo Micro Devices Inc.
                              NXP USA Inc.
                              Nuvoton
                              ON Semiconductor
                              Renesas Electronics
                              Rochester Electronics
                              ROHM Semiconductor
                              Semtech Corp.
                              Sharp Microelectronics
                              Sipex
                              STMicroelectronics
                              Texas Instruments
                              Vishay Siliconix
                              Unitrode
                              Xicor-Division of Intersil
                              and other ones...
