SO28, SOP28, SOIC28, SOJ28, SOH28, BSOJ28, WSOIC28, P-DSO-28, PG-DSO-28 1.27mm(0.05") to 2 x IDC2x7.

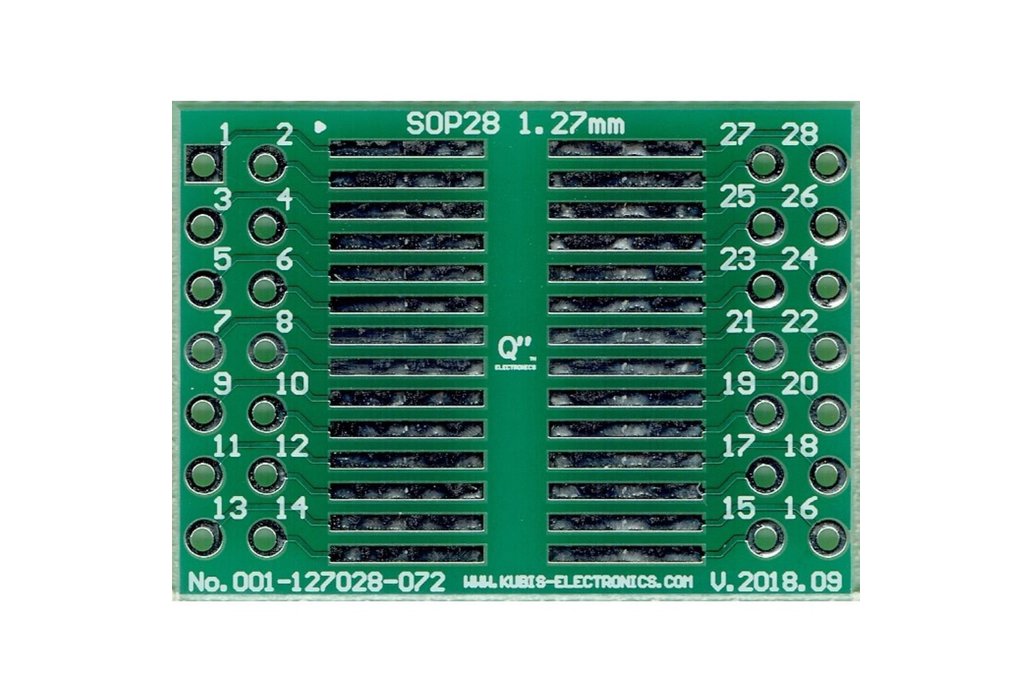

PCB adapter for IC in packages: SO28, SOP28, SOIC28, SOJ28, SOH28, BSOJ28, WSOIC28, P-DSO-28, PG-DSO-28 1.27mm(0.05") to 2 x IDC2x7 connectors. Usefull for small microcontrollers, memory and other peripherial IC.

                  Technical data:
                              Order number: PCB-001-127028-072
                              Dimensions: 27.94mm x 20.32mm(1.1" x 0.8")
                              PCB thickness: 1.5mm(0.06")
                              Raster: 2.54mm(0.1")
                              Path width: 10mils(0.254mm)(0.01")
                              Connectors holes diameter: 0.9mm(0.035")
                              Weight: 1.63g
                              Material: FR4
                              One side PCB
                              Copper thickness: 35um
                              Solder mask
                              Description mask
                              The PCB have been electrically tested.
                              Compliance with directive RoHS (2011/65/UE)
                              The product is not from China and is safe for the user.

                  PCB adapter fits for packages:
                              SO28 pin pitch 1.27mm(0.05")
                              SOP28 pin pitch 1.27mm(0.05")
                              SOIC28 pin pitch 1.27mm(0.05")
                              SOJ28 pin pitch 1.27mm(0.05")
                              SOH28 pin pitch 1.27mm(0.05")
                              BSOJ28 pin pitch 1.27mm(0.05")
                              WSOIC28 pin pitch 1.27mm(0.05")
                              P-DSO-28 pin pitch 1.27mm(0.05")
                              P-DSO-28-xx pin pitch 1.27mm(0.05")
                              PG-DSO-28 pin pitch 1.27mm(0.05")
                              PG-DSO-28-xx pin pitch 1.27mm(0.05")

                  PCB adapter fits integrated circuits for producers:
                              Allegro MicroSystems
                              Alliance Memory
                              Alpha & Omega Semiconductor Inc.
                              AMS-Osram
                              Analog Devices
                              AKM/Asahi Kasei Microdevices
                              ATMEL
                              Burr Brown
                              Chiplus
                              Cirrus Logic
                              Cypress Semiconductor
                              Diodes Inc.
                              Exar
                              Fairchild Semiconductor
                              Freescale Semiconductor
                              Fujitsu
                              Harris Corp.
                              IDT
                              Infineon
                              International Rectifier
                              Intersil
                              ISSI
                              IXYS
                              Linear Technology
                              LSI/CSI
                              Maxim Integrated
                              MaxLinear
                              Micrel
                              Microchip
                              Microsemi Corp.
                              Monolityc Power System
                              Motorola
                              National Semiconductor
                              JRC/NJR/Nisshinbo Micro Devices Inc.
                              Nuvoton
                              NXP
                              ON Semiconductor
                              Precision Monolithics
                              Renesas Electronics
                              ROHM Semiconductor
                              Samsung
                              SanKen Electric
                              Semtech Corp.
                              Sharp Microelectronics
                              Simtek
                              Sipex
                              STMicroelectronics
                              Taiwan Semiconductor
                              Texas Instruments
                              Toshiba
                              Unitrode
                              Vishay Siliconix
                              Winbond
                              Zarlink
                              Zilog
                              and other ones...
