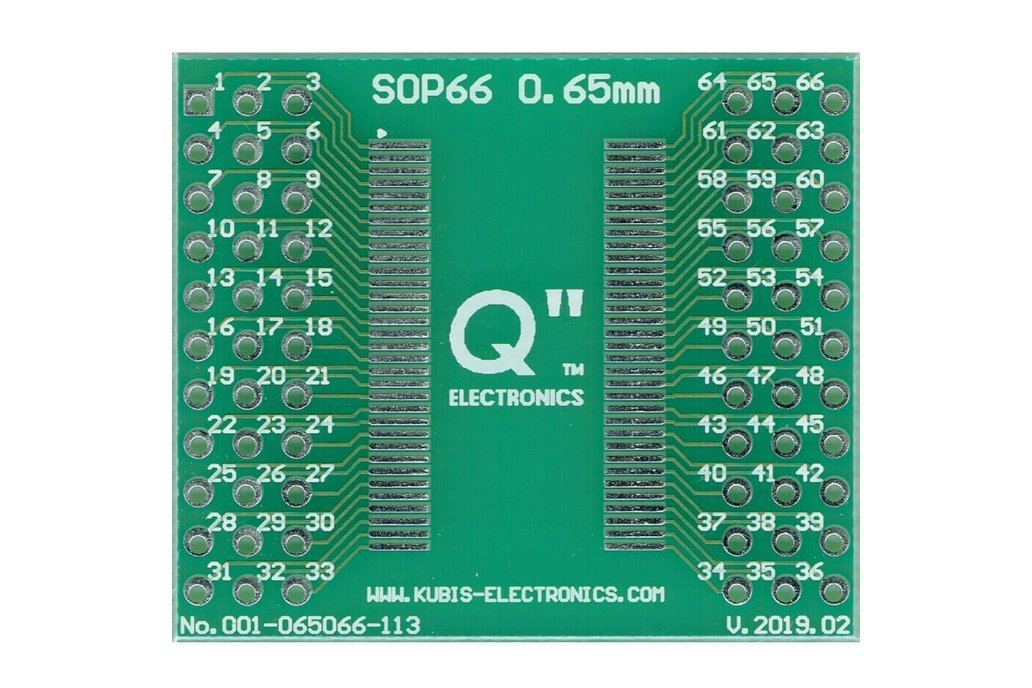

TSOP66(Type II), TSSOP66 0.65mm(0.026") to 2 x IDC3x11.

PCB adapter for IC in packages: TSOP66(Type II), TSSOP66 0.65mm(0.026") to 2 x IDC3x11 connectors. Usefull for memory IC (RAM,DRAM,SRAM,SDRAM,FLASH,EPROM,EEPROM).

                  Technical data:
                              Order number: PCB-001-065066-113
                              Dimensions: 35.56mm x 30.48mm(1.4" x 1.2")
                              PCB thickness: 1.5mm(0.06")
                              Raster: 2.54mm(0.1")
                              Path width: 8mils(0.203mm)(0.008")
                              Connectors holes diameter: 0.9mm(0.035")
                              Weight: 3.07g
                              Material: FR4
                              One side PCB
                              Copper thickness: 35um
                              Solder mask
                              Description mask
                              The PCB have been electrically tested.
                              Compliance with directive RoHS (2011/65/UE)
                              The product is not from China and is safe for the user.

                  PCB adapter fits for packages:
                              TSOP66(Type II) pin pitch 0.65mm(0.026")
                              TSSOP66 pin pitch 0.65mm(0.026")

                  PCB adapter fits integrated circuits for producers (memory: RAM,DRAM,SRAM,SDRAM,FLASH,EPROM,EEPROM):
                              Alliance Memory
                              EltronTech
                              Insignis Technology Corp.
                              ISSI
                              Micron
                              Qimonda
                              Winbond
                              and other ones...
