TSSOP20,SSOP20 0.65mm(0.026") to 2xIDC2x5 - 3 PCS.

Name: TSSOP20,SSOP20 0.65mm(0.026") to 2xIDC2x5 - 3 PCS.
SKU: 37830
Price: 6.40 USD
Availability: InStock

PCB adapter for IC in packages: SSOP20, LSSOP20, TSSOP20 0.65mm(0.026") to 2 x IDC2x5 connectors.

Designed by KubisElectronics in Poland

TSSOP20,SSOP20 0.65mm(0.026") to 2xIDC2x5 - 3 PCS. 1

TSSOP20,SSOP20 0.65mm(0.026") to 2xIDC2x5 - 3 PCS. 2

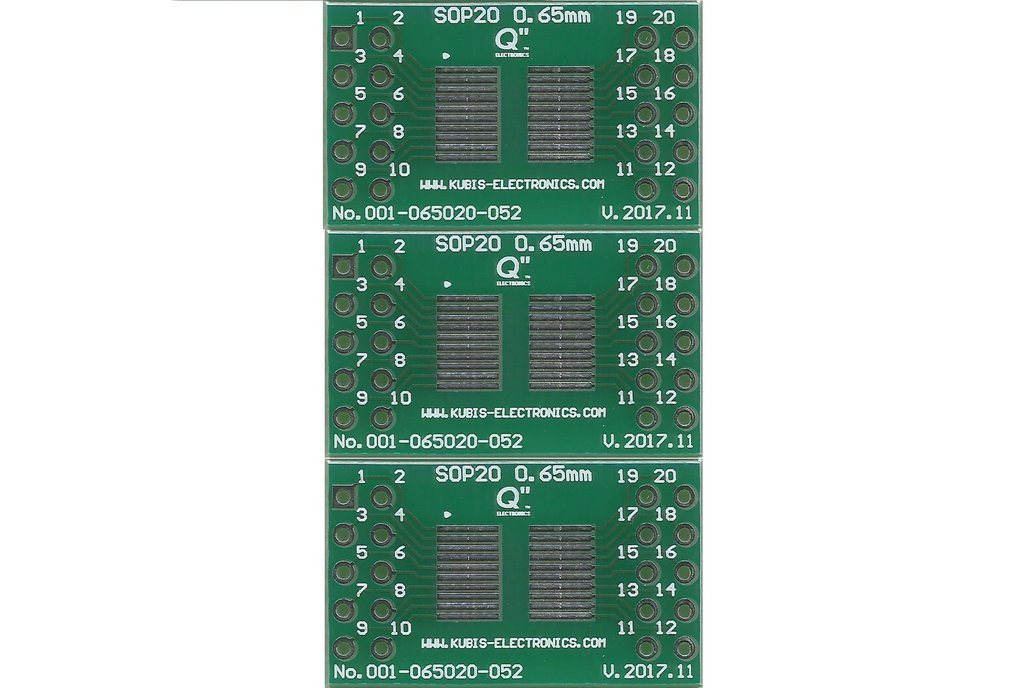

2025-03-11T16:00:35.198Z-SOP065-20P-2xIDC2x5_F_[1x3=3]_(1500x1500) - white.jpg


Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

PCB adapter for IC in packages: SSOP20, LSSOP20, TSSOP20 0.65mm(0.026") to 2 x IDC2x5 connectors.

SSOP20, LSSOP20, TSSOP20 0.65mm(0.026") to 2 x IDC2x5 PCB adapter for IC in packages: SSOP20, LSSOP20, TSSOP20 0.65mm(0.026") to 2 x IDC2x5 connectors. Usefull for small microcontrollers and peripher…

SSOP20, LSSOP20, TSSOP20 0.65mm(0.026") to 2 x IDC2x5

PCB adapter for IC in packages: SSOP20, LSSOP20, TSSOP20 0.65mm(0.026") to 2 x IDC2x5 connectors. Usefull for small microcontrollers and peripherial IC.

                  Technical data:
                              Order number: PCB-001-065020-052
                              Dimensions: 25.4mm x 15.24mm(1.0" x 0.6")
                              PCB thickness: 1.5mm(0.06")
                              Raster: 2.54mm(0.1")
                              Path width: 10mils(0.254mm)(0.01")
                              Connectors holes diameter: 0.9mm(0.035")
                              Weight: 1.09g
                              Material: FR4
                              One side PCB
                              Copper thickness: 35um
                              Solder mask
                              Description mask
                              The PCB have been electrically tested.
                              Compliance with directive RoHS (2011/65/UE)
                              The product is not from China and is safe for the user.

                   PCB adapter fits for packages:
                              SSOP20 pin pitch 0.65mm(0.026")
                              LSSOP20 pin pitch 0.65mm(0.026")
                              TSSOP20 pin pitch 0.65mm(0.026")

                   PCB adapter fits integrated circuits for producers:
                              ABLIC
                              AMS
                              Analog Devices
                              AKM/Asahi Kasei Microdevices
                              Atmel
                              Burr Brown
                              Catalyst Semiconductor Inc.
                              Cirrus Logic Inc.
                              Cypress Semiconductor
                              Dallas Semiconductor
                              Diodes Inc.
                              Elantec
                              Exar
                              Freescale Semiconductor
                              Harris Corp.
                              Holt Integrated Circuits Inc.
                              IDT
                              Infineon
                              International Rectifier
                              Intersil
                              JRC
                              LinFinity
                              LSI/CSI
                              Lumissil Microsystems
                              MACOM Technology Solutions
                              Maxim Integrated
                              MaxLinear
                              Micrel
                              Microchip
                              Microsemi
                              National Semiconductor
                              Nexperia
                              Nisshinbo Micro Devices Inc.
                              Nuvoton
                              NXP
                              ON Semiconductor
                              Pericom
                              Renesas Electronics
                              ROHM Semiconductor
                              Sanyo
                              Semtech Corp.
                              Silicon Labs
                              Skyworks Solutions Inc.
                              STMicroelectronics
                              Texas Instruments
                              Toshiba
                              Unitrode
                              Vishay Siliconix
                              Xicor-Division
                              Zilog
                              and other ones...

                  PCB adapter fits for example integrated circuits:
                              ATMEL ATtiny861Aut
                              MICROCHIP PIC16F690
                              MICROCHIP PIC18(L)F14K50
                              MICROCHIP PIC24FxxKL101
                              MICROCHIP dsPIC33FJ32MC101
                              NXP LPC1112
                              STM8SPLNB1
                              ST6220C
                              STM32F050Fx
                              and other ones...
