What is it?

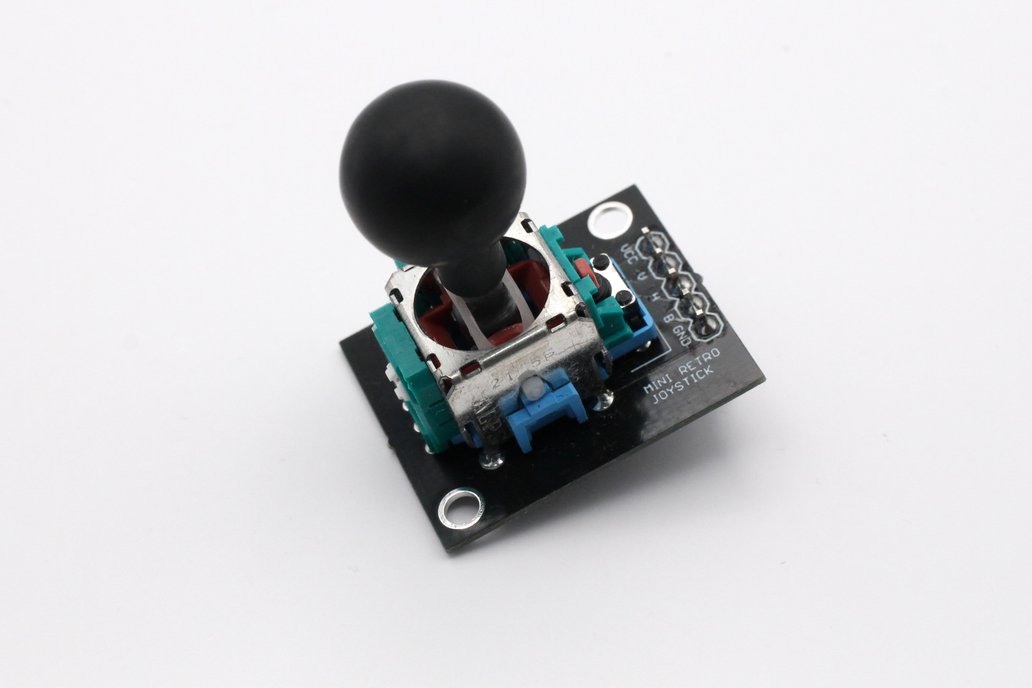

Introducing the Mini Retro Analog Joystick with Push Breakout Board – your ultimate compact and versatile solution for seamlessly integrating joystick controls into your projects. This innovative device boasts a unique 3D-printed resin joystick "ball" cap, lending it an authentic retro arcade aesthetic that enhances both its visual appeal and tactile experience.

Elevate your projects with the immersive feel of arcade-style controls, thanks to the meticulously crafted joystick "ball" cap that evokes memories of classic gaming experiences. Its compact size and versatile compatibility make it suitable for a wide range of applications, from gaming consoles to DIY robotics projects and beyond.

Dual Axis Control: Detects both vertical (up/down) and horizontal (left/right) movements, offering a comprehensive 2D control experience.

Voltage Output: Provides proportional analog voltage outputs corresponding to the joystick's position. This allows for precise measurement and interpretation of the joystick's movement.

Push Button: If you push down on the joystick, it becomes a push button in which you can use for menu selection, etc.

Self-centering: Once you let go of the joystick, it will move back into the center position.

Compact Design: With its minimalistic footprint, it can be effortlessly integrated into space-constrained projects.

Easy Integration: Standard pin headers ensure compatibility with most microcontrollers and development boards, such as Arduino, Raspberry Pi, and more.

Wide Application Range: Ideal for robotics, gaming consoles, remote controls, and any project requiring directional input.

Pin Configuration:

• VCC: 3.3V - 5V
• V: Vertical Position
• H: Horizontal Position
• B: Push Button
• GND

Simply power the breakout board using the VCC and GND pins, and connect the V and H pins to the analog input pins of your microcontroller. As the joystick is moved, the voltage on the V and H pins will change proportionally, allowing you to determine the joystick's position.

Whether you're building a custom game controller, a robotic arm, or any interactive project, the Mini Retro Analog Joystick w/ Push Breakout Board offers a straightforward way to add directional control as well as push capabilities. Dive into the world of intuitive control and endless possibilities with this breakout board!

Want to pair this controller with an RGB Colored OLED? Check out our 0.95 RGB 65K Color SSD1331 96x64 OLED SPI Breakout
