What is it?

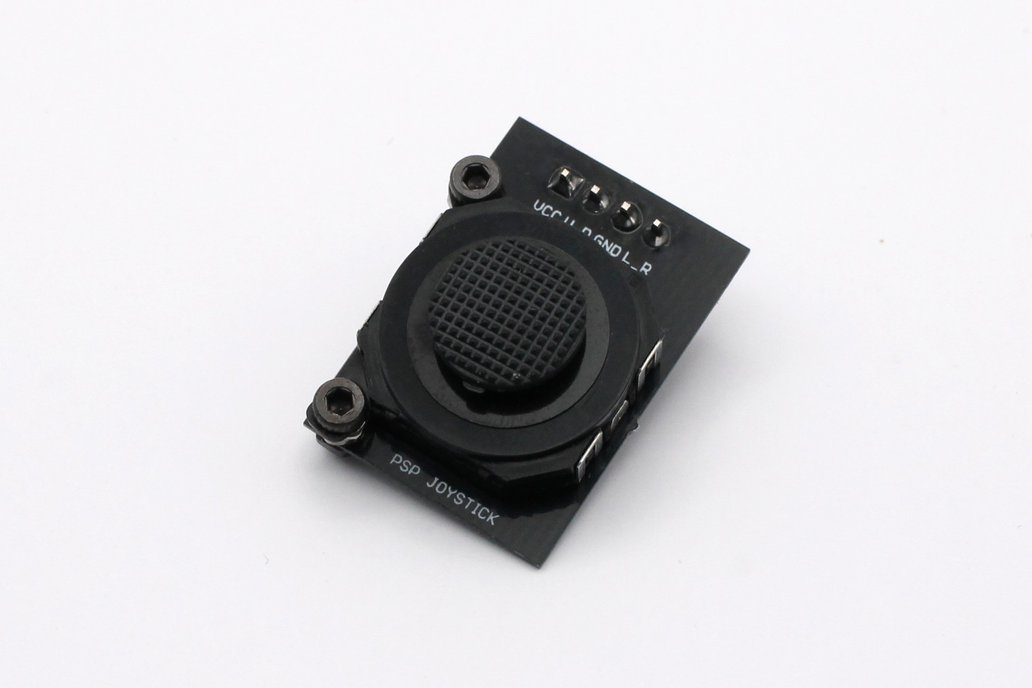

Introducing the PSP Analog Joystick Breakout Board - a compact and versatile solution for adding a joystick control to your projects.

Dual Axis Control: Detects both vertical (up/down) and horizontal (left/right) movements, offering a comprehensive 2D control experience.

Voltage Output: Provides proportional analog voltage outputs corresponding to the joystick's position. This allows for precise measurement and interpretation of the joystick's movement.

Self-centering: Once you let go of the joystick, it will move back into the center position.

Compact Design: With its minimalistic footprint, it can be effortlessly integrated into space-constrained projects.

Easy Integration: Standard pin headers ensure compatibility with most microcontrollers and development boards, such as Arduino, Raspberry Pi, and more.

Wide Application Range: Ideal for robotics, gaming consoles, remote controls, and any project requiring directional input.

Operating Voltage: 3.3V - 5V

Pin Configuration:

• VCC
• GND
• U_D (for vertical up / down movement)
• L_R (for horizontal left / right movement)

Simply power the breakout board using the VCC and GND pins, and connect the U_D and L_R pins to the analog input pins of your microcontroller. As the joystick is moved, the voltage on the U_D and L_R pins will change proportionally, allowing you to determine the joystick's position.

Whether you're building a custom game controller, a robotic arm, or any interactive project, the PSP Analog Joystick Breakout Board offers a straightforward way to add directional control. Dive into the world of intuitive control and endless possibilities with this breakout board!
