What is it?

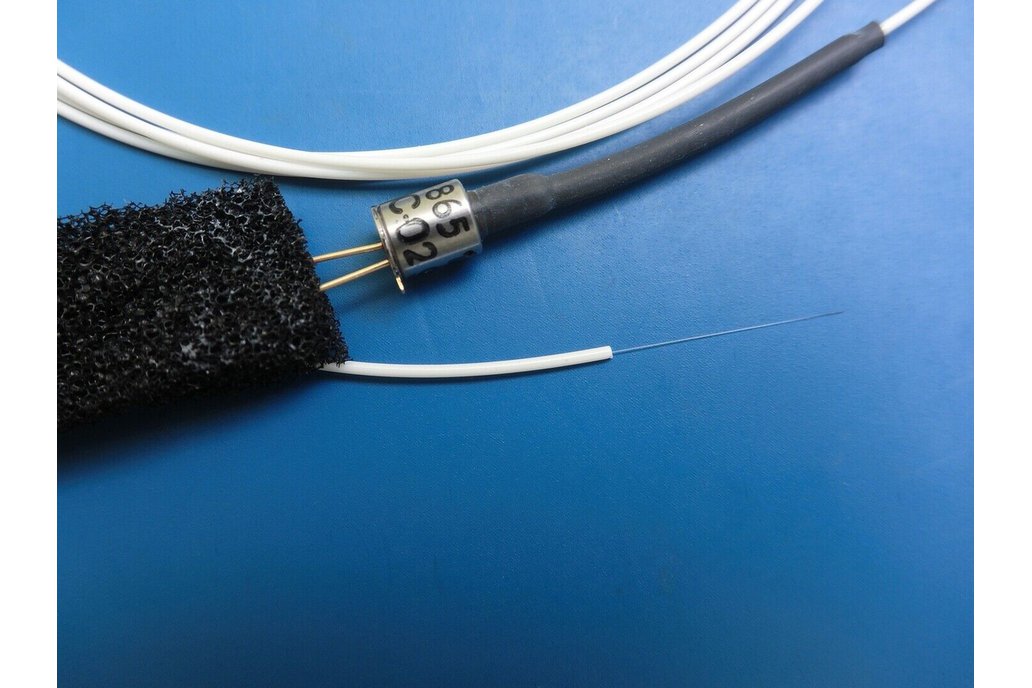

RCA Perkin Elmer C30902E Silicon Avalanche Photo Diode Detector SiAPD factory coupled with glass fiber optic

Best optical sensor that ever existed. Those are last items in stock! Each and everyone were selected and tested in US factory to strict standard for guaranteed performance.

specs (at 22degC):

operating voltage: 217V breakdown voltage: 227V dark current <15nA responsivity@830nm 77A/W noise current <0.23pA/Hz^1/2 capacitance 1.70pF response time 0.5ns

center pin(positive) / tab(negative)

dimensions: 0,125mm (bare fiber diameter) 0,879mm (white sleeve diam.) 18mm - striped fiber length 145cm - total fiber length

Price for 1 pcs.

Shipping in safe package, with tracking number, from EU.
