5x SMD prototyping boards

Name: 5x SMD prototyping boards
SKU: 8247
Price: 9.95 USD
Availability: Discontinued

You'll get five prototyping board. Good for: 0603, sot23, soic...

Designed by Neon Things in United Kingdom

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

Visit Store

More From Neon Things:

IV3 Clock Spare Tubes

Neon Things

$17.00

IV3 Tube Clock Kit - CircuitPython

Neon Things

$89.50

IV3 Tube Clock Kit

Neon Things

$89.50

More From Prototyping & Fabrication

PMW3389 Motion Sensor

Joe's Sensors and Sundry

$29.99

Reflow Master Pro

Unexpected Maker

$89.00

e.Dispenser - For solder paste, adhesives and more

Dan M

$159.00

FPGA Mezzanine Card (FMC) Breakout Board

I A M Electronic

$155.00

2016-10-21T08:07:25.759Z-proto boards.png

2016-10-19T18:07:59.802Z-proto board.png

You'll get five prototyping board. Good for: 0603, sot23, soic...

What is it? These are neat 5x5cm double sided SMD prototyping boards. They are arrays of pads with 1.27mm pitch so that 0603, sot23 and soic components can all easily be mounted. There are two centra…

What is it?

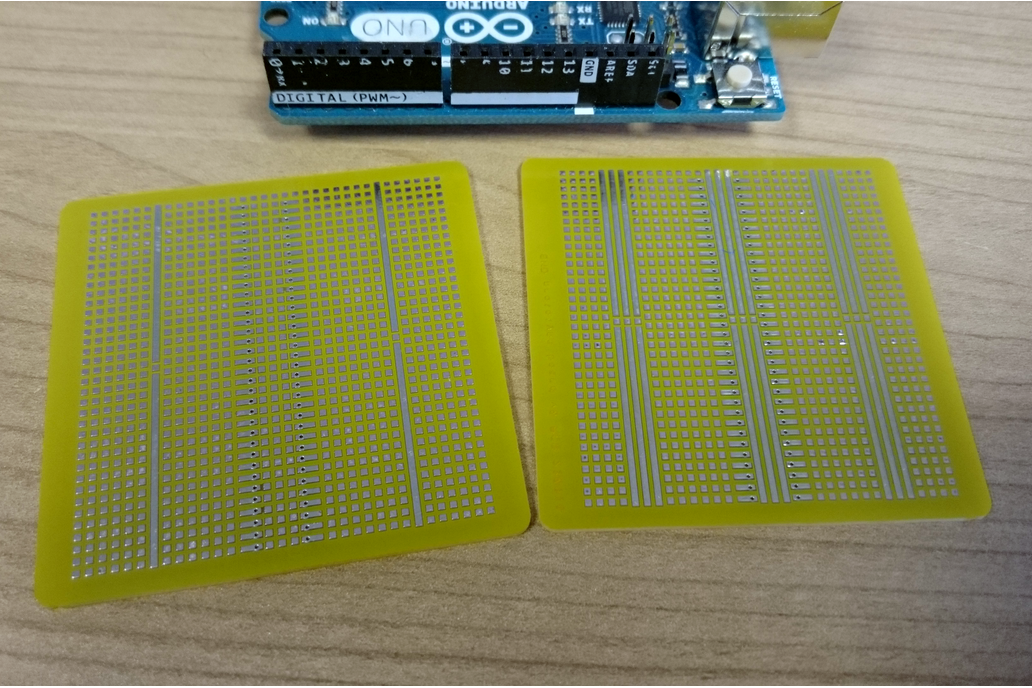

These are neat 5x5cm double sided SMD prototyping boards. They are arrays of pads with 1.27mm pitch so that 0603, sot23 and soic components can all easily be mounted. There are two central rows of pads for fitting soic components, these are connected with vias to the opposite side of the board for easy connections to power and gnd rails which run as vertical tracks. Great for knocking up a quick prototype or board mod.

Why did you make it?

I work exclusively with SMD parts and I've been frustrated by the price and difficulty of getting good small prototyping boards, so I decided to make my own. I find these little guys really useful when I want to knock something up. They are great to use in combination with roadrunner wire pencil.
