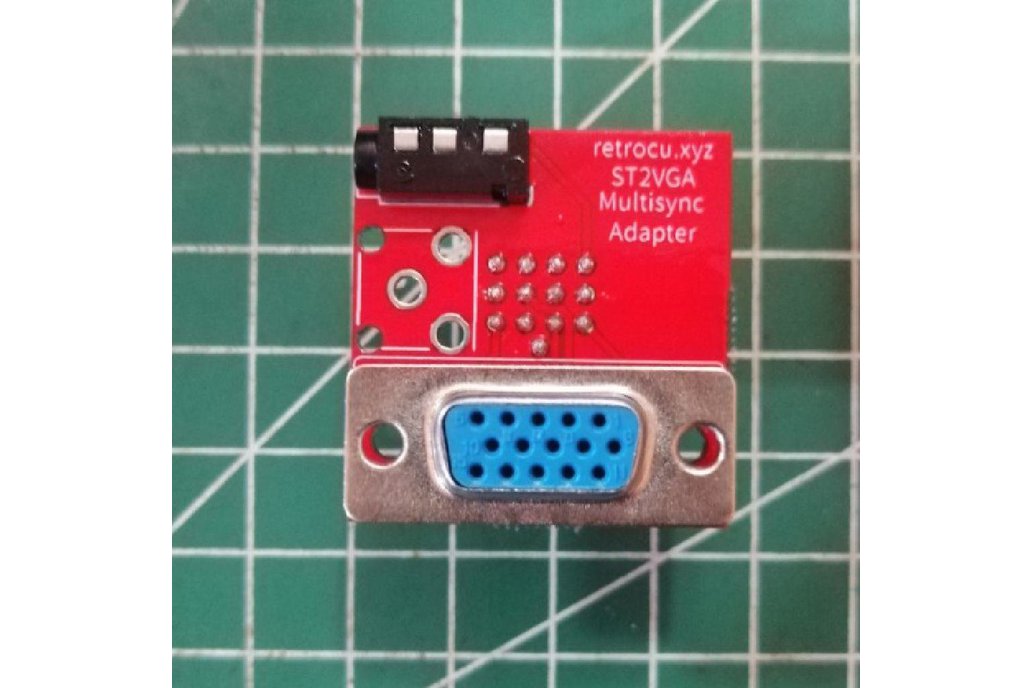

RGB Video out for 15khz and Multisync monitors

It has 3.5mm sound jack for audio

working with all Atari ST versions

list of 15khz supported monitors can be found at http://15khz.wikidot.com/

tested on modern LCD monitors

Brand   Model   Type    Screen Size 15kHz (AMIGA)   Comments

2 Acer AL1917 19 No Monochrome works, but is not nicely centered. (for ATARI ST)
3 Acer G246HL LCD/LED 24 Yes Test on May 2014 modell. Does not save position. 16:9 only. New! 4 Acer P206H LCD/LED 20 No
5 Acer P223w 22 No Monochrome works, but like the AL1917 not centered (for ATARI ST)
6 Acer S242HLK Cbid LCD/LED 24 Yes Mfg. Date Feb 2015, Confirmed 16:9, 4:3 AR unconfirmed New! 7 Acer T232HL 23 Partial works, but pixels are uneven and pretty ugly. Also can't take out of 16:9 mode. 8 Acer V223W LCD/LED 22 No
9 Acer X183H LCD/LED 18,5 No
10 Advantech FPM-2150G-XCE LCD 17 No
11 AOC 212VA LCD/LED 22 No
12 AOC 716Sw LCD 15,6 No
13 AOC 717FWy-1 LCD/LED 17 No
14 AOC 912VWA LCD/LED 19 No
15 AOC CM314 CRT 14 Yes
16 AOC E1621W LCD/LED 15,6 No
17 AOC E943Fwsk LCD/LED 19 No
18 AOC F22 LCD 21,5 No
19 AOC L229BXA007146 LCD 22 No
20 AOC LM522 LCD 15 No
21 AOC LM722 LCD/LED 17 No
22 Asus VW227D 21 Yes
23 Asus VE225 22 Yes Standard Falcon resolutions too. TT030 works but not centered (for ATARI ST)
24 Aydin Controls SP 1499 CRT 13 Yes
25 Aydin Controls Spectrum Autosync 9008 CRT 20 Yes
26 Aydin Controls Spectrum Autosync 9026 CRT 28 Yes
27 BenQ BL2205PT 22 Partial Doesn't remember screen position. Uncorrectable aspect ratio.
28 BenQ BL702A 17 Partial Doesn't remember screen position.
29 Benq BL912 LCD/LED 19 Yes
30 BenQ FFP222Wa 22 Yes
31 Benq G206HQL LCD/LED 20 Yes
32 BenQ G2420 24 Yes
33 BenQ G2420HD 24 Yes
34 BenQ G922HDL 19 Partial Uncorrectable aspect ratio, interlaced mode flickers too much.
35 Benq G925HDA LCD/LED 19 No
36 Benq RL2240HE LCD/LED 22 Yes
37 Benq V193HQV LCD 19 Yes
38 BenQ XL2410T 24 Yes
39 Benq XL2720Z LCD/LED 27 Yes
40 CCE LN14GW LCD/LED 14 Yes
41 CIBOX C1905 19 No out of range' shown when testing low/med res (for ATARI ST) 42 Commodore 1080 CRT 14 Yes
43 Commodore 1081 CRT 14 Yes
44 Commodore 1085 CRT 14 Yes
45 Commodore 1701 CRT 13 Yes
46 Commodore 1702 CRT 13 Yes
47 Commodore 1940 CRT 13 Yes
48 Commodore 1942 CRT 13 Yes
49 Commodore 1960 CRT Yes
50 Commodore 1962 CRT 14 Yes
51 Commodore 2002 CRT 14 Yes
52 Commodore 2024 CRT 15 Yes
53 Commodore 2080 CRT 14 Yes
54 Commodore 1042S-D2 CRT 14 Yes
55 Commodore 1083S CRT 14 Yes
56 Commodore 1084S/S-P/P/S-P2/D/S-D CRT 14 Yes
57 Commodore 1950 (AOC CM314) CRT 14 Yes
58 Dell 1505FP 15 No unsupported resolution' on screen in Low/Med Res (for ATARI ST) 59 Dell 1702FP 17 No no display when testing low/med res (for ATARI ST)
60 Dell 1901FP 19 No input signal not supported' when testing low/med res (for ATARI ST) 61 Dell 1901FP 19 Yes
62 Dell 2001FP 20 Partial Doesn't remember screen position. Units manufactured until June 2005 work, those September 2005 and later don't. Interlaced modes flicker badly with RGB but look great with S-Video.
63 Dell 2007WFb LCD 20 No
64 Dell 2208WPf LCD 22 No
65 Dell E153FPc No no display when testing low/med res (for ATARI ST)
66 Dell E173 FP LCD 17 No
67 Dell E176FPc LCD/LED 17 No unsupported resolution' on screen in Low/Med Res (for ATARI ST) 68 Dell E1914H 19 Yes
69 Dell SE2717H LCD/LED 27 Partial Has issues with interlaced modes New! 70 Dell SR2320L 23 Partial Doesn't remember screen position. A few pixels lost in some modes.
71 Dell ST2320L 23 Yes
72 Dell ST2410 LCD/LED 24 Yes
73 Dell U2212HM LCD/LED 22 Yes
74 Dell U2311H LCD/LED 23 Yes
75 Dell U2312HM LCD/LED 23 Yes
76 Dell U2410F LCD/LED 24 Yes VGA input tested, PiP works (for ATARI ST)
77 Dell U2410H LCD/LED 24 Yes
78 Dell U2412M LCD/LED 24 No VGA input tested, display ST-Low and only some Falcon resolution (check YT link) (for ATARI ST) 79 Dell W1900 LCD/TV 19 No Low and medium res work but bizarrely high res doesn't. PIP works (for ATARI ST)
80 Dell WTI-P190S LCD 19 No
81 Eizo 9050 CRT Yes Courtesy of idrougge (EAB) New! 82 Eizo 9060 CRT Yes Courtesy of idrougge (EAB) New! 83 Fujilink A1901W LCD/TV 19 Yes
84 GRADIENTE 2730 LCD/TV 27 Yes
85 HP L1750 17 No no display in Low/Med Res (for ATARI ST)
86 HP L1750 17 Partial Monochrome works great on this screen, no borders on the sides. Just the top and bottom. (for ATARI ST) 87 HP L185b LCD 18,5 No
88 HP L1950 19 Partial Just like the L1750, but bigger screen. (for ATARI ST)
89 HP LE1851W LCD/LED 18,5 No
90 HP COMPAC LE 1711 LCD 17 No
91 HP Compaq LA2205wg LCD 22 No
92 Idek/Iiyama 5017 CRT 17 Yes Courtesy of idrougge (EAB) New! 93 Idek/Iiyama 5021 CRT 21 Yes Courtesy of idrougge (EAB) New! 94 Langwei monitor chinês, sem modelo LCD/TV 15 Yes
95 LG 1721a 17 Yes
96 LG 1921a 19 Yes
97 LG 26LG30R LCD 26 No
98 LG E1960T-PN LCD/LED 19 No
99 LG E2050T LCD/LED 20 No
100 LG IPS235 LCD/LED 23 No
101 LG L1550S LCD 15 No
102 LG L1552S-SF LCD/LED 15 No
103 LG L1553S LCD 15 No
104 LG L173sa LCD 17 No
105 LG L1742P LCD 17 No
106 LG L1742S LCD/LED 17 No
107 LG L1750S LCD/LED 17 No
108 LG L1753T LCD/LED 17 No
109 LG L177WS LCD/LED 17 No
110 LG L192WS LCD 19 No
111 LG L1942S LCD 19 No
112 LG L1953H LCD/LED 19 No
113 LG L226WTQ-BF LCD 22 No
114 LG M1717A LCD/LED 17 Yes
115 LG M1721A LCD/LED 17 Yes
116 LG M1917A LCD 19 Yes
117 LG M1921A LCD/LED 19 Yes
118 LG StudioWorks 560A CRT 15 No
119 LG W1752T LCD/LED 17 No
120 LG W1943C LCD/LED 19 No
121 LG W2252TQ LCD/LED 22 No
122 LG W2353V LCD/LED 24 No
123 Mitsubishi Viseo MDT 152X LCD/TV 14 Yes
124 NEC 1560 15 Yes
125 NEC 1525V 15 Yes
126 NEC 1550M 15 Yes Has speakers, low/med res border is large (for ATARI ST)
127 NEC 1770NX 17 Yes
128 NEC 195VX 19 No Out of Range Displayed for Low/Med resolution (for ATARI ST)
129 NEC 1960NXi 19 Yes
130 NEC 1970NX 19 Yes Needs modification to 'H. SIZE' in the menu for medium res to look good (for ATARI ST)
131 NEC 1970NXp 19 Partial The "p" is for PVA. Interlaced modes don't work properly.
132 NEC 1970VX 19 Yes Med Res loses some horizontal pixels. Has H.Size, V.position, and H.position adjustments, but not V.Size. (for ATARI ST)
133 NEC 1990FXP 19 Yes
134 NEC 51V 15 Partial Laced modes cause flickering.
135 NEC 71V 17 Yes Fully supported, but 480i flicker is annoying and my copy of the screen (rev. 1G) has faint vertical banding in 15 kHz modes. Narrow viewing angle. 136 NEC 72v 17 Partial High rez only b&w (for ATARI ST)
137 NEC EA193Mi 19 Partial Uncorrectable aspect ratio. 138 NEC MultiSync 3D/3Ds CRT 14 Yes
139 NEC MultiSync II CRT 14 Yes Courtesy of idrougge (EAB) New! 140 Nokia 417TV CRT 17 Yes Courtesy of idrougge (EAB) New! 141 NOVA LM-522N LCD 15 No
142 ONYX SW1536LD TV/DVD combo 15 No UNSUPPORTED' shown when testing low/med res. This TV has SVIDEO inputs. HiRes gives blank screen (for ATARI ST) 143 Philco TV PH32 LED A2 LCD/LED 32 No
144 Philips 107S LCD/LED 17 No
145 Philips 150S LCD/LED 15 No
146 Philips 190VW LCD/LED 19 No
147 Philips 215VW LCD/LED 21,5 No
148 Philips 240P4QPYN LCD 24 Yes
149 Philips 32PFL3403/78 LCD 32 No
150 Philips 32PFL5007G/78 LCD/LED 32 No
151 Philips 40PFL4606D-78 LCD 40 No
152 Philips TV 32PFL3404/78 LCD 32 Yes
153 Phillips 1081 CRT 14 Yes
154 Phillips CM8833-I CRT Yes
155 Phillips CM8833-II CRT 14 Yes
156 Phillips CM8852 CRT 14 Yes
157 Phillips CM8873 CRT 14 Yes
158 Planar 1520M 15 15 Yes If you change resolutions, you have to readjust the picture.
159 Positivo Line 425 LCD/LED 15 Yes
160 Positivo PO15T105S LCD/LED 15 No
161 Positivo SmileLight 563 LCD 15 Yes
162 Proview FV726W LCD/LED 17 No
163 Proview PV-564D CRT 15 No
164 Samsung CM4531 CRT 14 Yes
165 Samsung CS455i CRT 14 Yes
166 Samsung LN32C450E1M LCD 32 No
167 Samsung LN32D550K7G LCD 32 No
168 Samsung LN40C530F1M LCD 40 No
169 Samsung LW15M23C 15 Yes
170 Samsung P2470HN LCD/LED 24 No
171 Samsung S16B 110 LCD/LED 15 No
172 Samsung Syncmaster 150MP LCD 14 Yes Fixed! 173 Samsung Syncmaster 151MP LCD 14 Yes Fixed! 174 Samsung Syncmaster 170MP LCD 17 Yes Fixed! 175 Samsung Syncmaster 171MP LCD 17 Yes Fixed! 176 Samsung SyncMaster 2043bw 20 Partial Monochrome is almost filling the whole screen, only a border at the bottom. (for ATARI ST)
177 Samsung Syncmaster 204b LCD/LED 20 Yes
178 Samsung SyncMaster 204B LCD/LED 20 Yes
179 Samsung SyncMaster 2232BW Plus LCD/LED 22 No
180 Samsung SyncMaster 245T 24 Yes all Falcon modes work too (for ATARI ST)
181 Samsung SyncMaster 510N LCD/LED 15 Yes
182 Samsung SyncMaster 540N LCD/LED 15 No
183 Samsung SyncMaster 623NW LCD 15,8 No
184 Samsung SyncMaster 710N LCD/LED 17 Yes
185 Samsung SyncMaster 710V 17 No alarming white screen / backlight overload when testing low/med res! (for ATARI ST) 186 Samsung SyncMaster 713N LCD 17 Yes
187 Samsung SyncMaster 740N LCD/LED 17 No
188 Samsung SyncMaster 743BX LCD 17 No
189 Samsung SyncMaster 743N LCD/LED 17 No
190 Samsung SyncMaster 793V CRT 17 No
191 Samsung SyncMaster 910MP 19 Partial Really blurry with 240p and 480i.
192 Samsung SyncMaster 913N LCD 19 Yes
193 Samsung SyncMaster 915N LCD 19 Yes
194 Samsung SyncMaster 915T LCD 19 Yes
195 Samsung SyncMaster 933 LCD/LED 19 No
196 Samsung SyncMaster 940BE 19 Partial sometimes difficult to get it to sync without jitter, but you can do it 197 Samsung SyncMaster BX1931 LCD/LED 19 No
198 Samsung SyncMaster P2770 27 Yes
199 Samsung SyncMaster SA350 24 Yes
200 Samsung SyncMaster T200HD 20 No This screen has a SCART input, Low/Med res works great on SCART. Monochrome works on the VGA input. VGA input does sync at 15 Khz HSYNC, but displays only half the screen. (for ATARI ST)
201 Sharp Aquos LC32LE700UN LCD/TV 32 Yes
202 Sharp LC-32SV202B LCD/LED 32 No
203 Sony CPD-1302 CRT 13 Yes
204 Sony CPD-1302A CRT 13 Yes
205 Sony CPD1402E CRT 14 Yes
206 Sony GVM-1310 CRT 14 Yes
207 Sony GVM-1311Q CRT 14 Yes
208 Sony GVM-2020 CRT 20 Yes
209 Sony KLV-14AP2 LCD 14 Yes
210 Sony PVM-14M2U CRT 14 Yes
211 Sun PN17JO CRT 17 No
212 Sun Sunray 170 LCD 17 Yes
