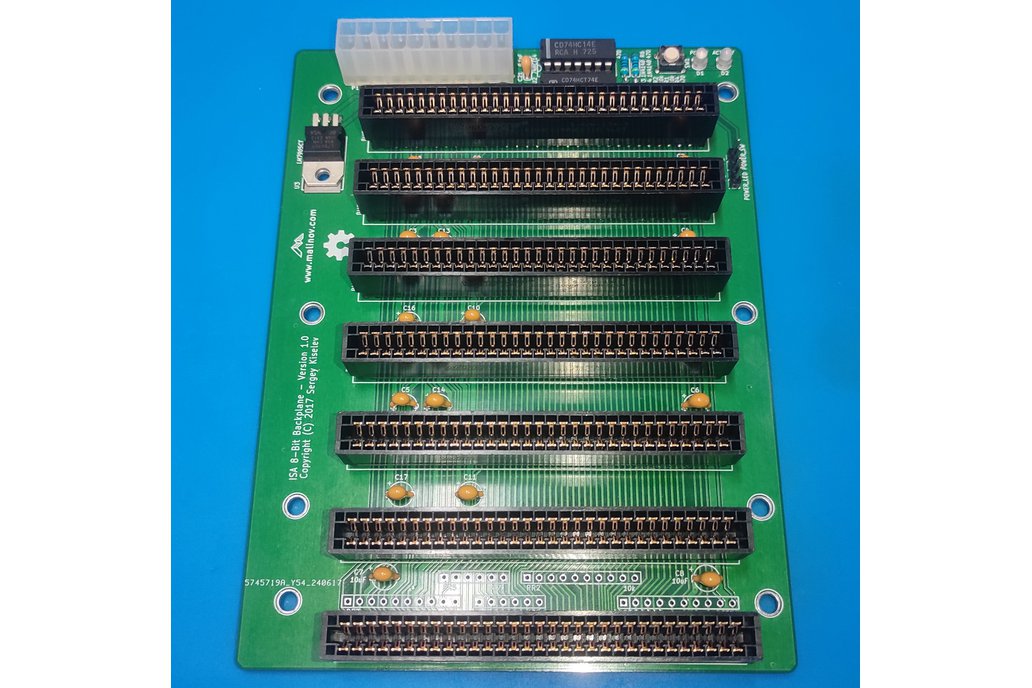

8-bit ISA Backplane for Micro 8088 Single Board Computer based on Sergey Kiselev design, fully assembled and ready to use.

This Backplane has seven 8-bit ISA Slots, a 20-pin ATX Power Supply Connector, a -5V onboard Voltage Regulator and can be turned ON/OFF with the onboard button or external case button connected on a pin header.

For more information please check the GitHub repository: https://github.com/skiselev/isa8_backplane

Can be used with Sergey Kiselev Micro 8088 IBM PC/XT Compatible Processor Single Board Computer (https://github.com/skiselev/micro_8088) or any other 8-bit Single Board Computer.

The Backplane can be installed on a 3D Printed Case: https://github.com/skiselev/micro_8088_case

SHIPPING to Europe with tracking. If you need shipping to other regions please send message.

Image for illustrative purposes, the items shipped depend on stock available at the time.
