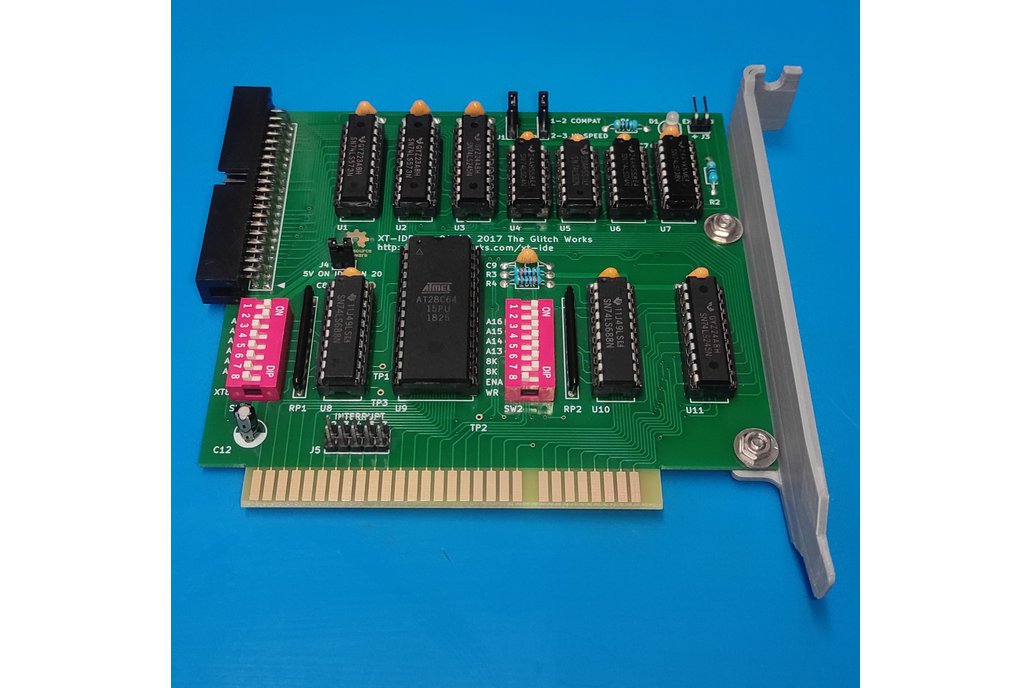

Glitch Works XT-IDE Rev 4 ISA IDE 8-Bit Board, with 28C64 EEPROM and XT-IDE ROM for PC XT machines (also compatible with newer machines like 286, 386 or 486) and a grey 3D Printed Rear Bracket.

Compatible with real Hard Drives or CF and SD cards using the correct adapter. Ships with XT-IDE r629 ROM in Compatibility Mode, if needed it can be flashed afterwards with the High Speed ROM by moving the Write Enable jumper and using a flashing software like XTIDECFG.COM. The EEPROM can also be swapped with a 28C256 for more ROM space.

You can select the base memory address but this board ships with a memory address selection that doesn't conflict with other ROMs, only move the switches if you have problems loading the ROM.

SHIPPING to Europe with tracking. If you need shipping to other regions please send message.

Image for illustrative purposes, the items shipped depend on stock available at the time.
