ASR33 Teletype controller development board

Name: ASR33 Teletype controller development board
SKU: 37219
Price: 45.00 USD
Availability: InStock

A PCB designed to operate an ASR33 teletype using 20mA current loop at 110 Baud, including a full copy of Colossal Cave by Will Crowther.

Designed by Andrews&Arnold Ltd in United Kingdom

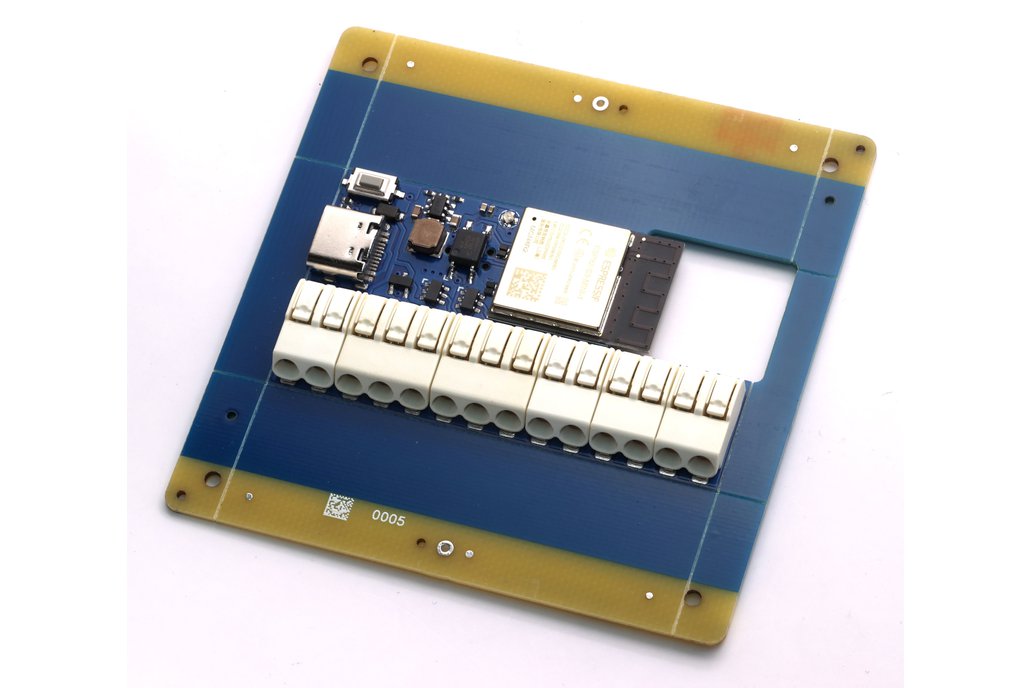

ASR33 Teletype controller development board 1

ASR33 Teletype controller development board 2

ASR33 Teletype controller development board 3

ASR33 Teletype controller development board 4

ASR33 Teletype controller development board 5



Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Andrews & Arnold Ltd sell a range of PCBs, as assembled PCBs for hobbyist use. Have fun. Suggestions and merge requests on GitHub always welcome.

A PCB designed to operate an ASR33 teletype using 20mA current loop at 110 Baud, including a full copy of Colossal Cave by Will Crowther.

What is it? ESP32S3-MINI-1-N4-R2 based board (Dual CPU, 4MB flash, 2M SPI RAM) It is a very specialised board, designed to work with an antique ASR33 Teletype using 20mA current loop serial at 110 Ba…

What is it?

ESP32S3-MINI-1-N4-R2 based board (Dual CPU, 4MB flash, 2M SPI RAM)

It is a very specialised board, designed to work with an antique ASR33 Teletype using 20mA current loop serial at 110 Baud.

It has an input for a button (typically MOTOR START) and output 3.3V signals to drive solid state relays for power and motor on (solid state relays not included).

It allows WiFi connect over TCP in and out, and working open MQTT, as well as local working via web interface, including large text on paper tape.

It includes a full copy of the original Colossal Cave by Will Crowther.

Why did you make it?

Because I have an ASR33 teletype in my hall, older than me, it is cool.

I use it all the time just to print from text messages for anything that needs to get attention of me or people in the house. I don't play Colossal Cave much, but my grandson loved it.
