Illuminated coaster development board

Name: Illuminated coaster development board
SKU: 37069
Price: 44.00 USD
Availability: InStock
Rating: 5.00 (1 reviews)

(1 Review)

ESP32-S3-MINI-1-N4-R2, USB-C, TDK ICS 43434 microphone, 124 WS2812 style LEDs in rings, diffuser disc, works with WLED

Designed by Andrews&Arnold Ltd in United Kingdom

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Andrews & Arnold Ltd sell a range of PCBs, as assembled PCBs for hobbyist use. Have fun. Suggestions and merge requests on GitHub always welcome.

ESP32-S3-MINI-1-N4-R2, USB-C, TDK ICS 43434 microphone, 124 WS2812 style LEDs in rings, diffuser disc, works with WLED

What is it? A main PCB, spacer, diffuser, and rubber feet to make an illuminated coaster. ESP32-S3-MINI-1-N4-R2 (Dual CPU, 4M flash, 2M SPI RAM) USB-C for power and USB TDK ICS 43434 MEMS microphone…

What is it?

A main PCB, spacer, diffuser, and rubber feet to make an illuminated coaster.

ESP32-S3-MINI-1-N4-R2 (Dual CPU, 4M flash, 2M SPI RAM)
USB-C for power and USB
TDK ICS 43434 MEMS microphone for audio reactive lighting effects
124 WS2812 style RGB LEDs in rings 4+8+16+32+64
Diffuser, spacer, and rubber feet

Full white on all LEDs uses under 2A from 5V USB, typical usage way lower.

Can be supplied fully assembled, or as a kit, with spacers, choice of diffuser, and rubber feet, ready to use.

Supplied with my code, which does loads of stuff, even a tap detect when you put a glass down, but can run WLED or ESPHome or whatever you want.

Why did you make it?

Fun, and testing my code for LED placement in KiCAD. But it is cool.

What makes it special?

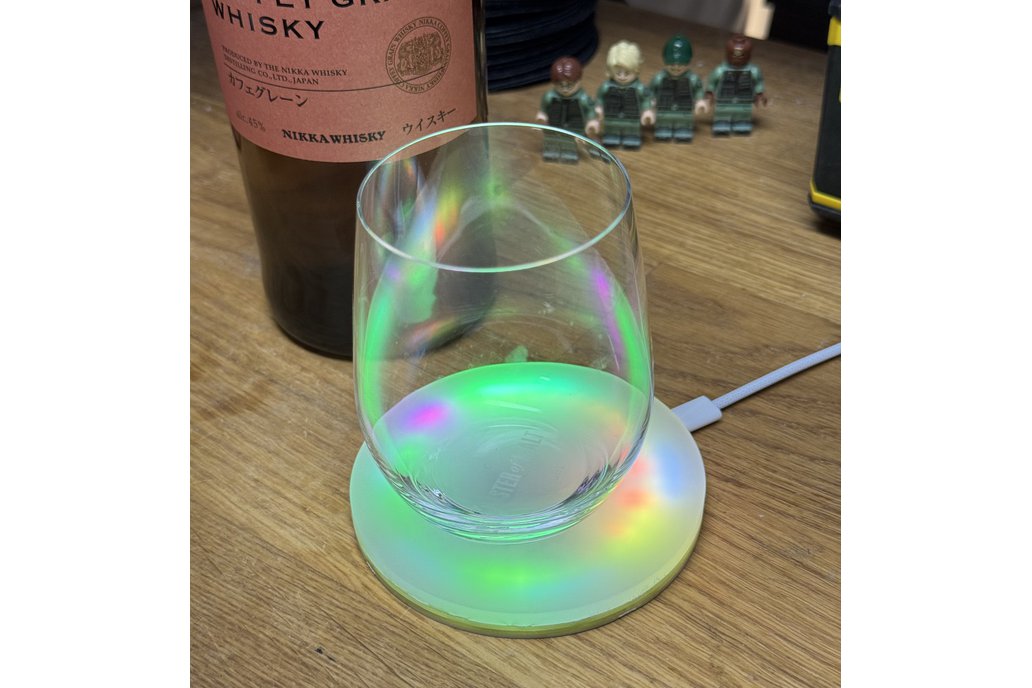

Unique design having sound reactive on a coaster, and lots of LEDs behind a diffuser for smooth lighting effects - illuminate glass / bottle, etc.

No country selected, please select your country to see shipping options.

Change Destination Country:

Review Breakdown

Average Ratings

Product: (5.00)

Documentation: (5.00)

Shipping: (5.00)

Communication: (5.00)

Mike | Jan. 15, 2025

It's really very cool!

The default firmware it comes with is pretty mesmerizing. The microphone is very sensitive and can pick up changes in background room noise like central heating pumps and snoring dogs really well. It gives a great atmospheric glow to any glasses and liquids placed on it and the diffusion is really good.

Can't wait to try out hacking on the firmware to see what sort of modes and patterns I can come up with.
