Waveshare 7.5" E-paper panel development board

Name: Waveshare 7.5" E-paper panel development board
SKU: 37228
Price: 50.00 USD
Availability: InStock

PCB designed to stick to back of Waveshare 7.5" e-paper panel, with 25 LEDs, and Micro SD card.

Designed by Andrews&Arnold Ltd in United Kingdom

Waveshare 7.5" E-paper panel development board 1

Waveshare 7.5" E-paper panel development board 2

Waveshare 7.5" E-paper panel development board 3

Waveshare 7.5" E-paper panel development board 4




Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Andrews & Arnold Ltd sell a range of PCBs, as assembled PCBs for hobbyist use. Have fun.

PCB designed to stick to back of Waveshare 7.5" e-paper panel, with 25 LEDs, and Micro SD card.

What is it? ESP32S3-MINI-1-N4-R2 based PCB (4MB flash, 2M SPI RAM) A controller board for Waveshare 7.5" e-paper panel (mono, or black/red/white). This is designed to stick to the back of the e-paper…

What is it?

ESP32S3-MINI-1-N4-R2 based PCB (4MB flash, 2M SPI RAM)

A controller board for Waveshare 7.5" e-paper panel (mono, or black/red/white).

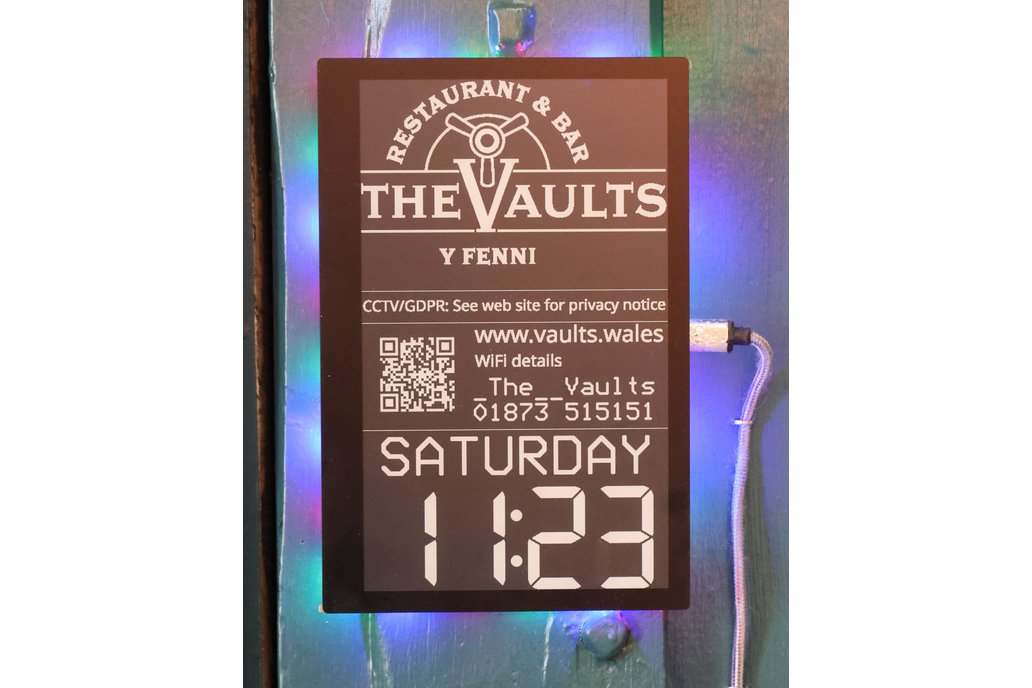

This is designed to stick to the back of the e-paper panel, use 3M VHB tape. It also works well with "button-fix" 60x60 panel stuck to allow fixing to a wall.

It can be USB-C powered (one of two sides), or DC power (WAGO) 5V-35V.
24 WS2812 style LEDs around the edge, plus one by the SD slot.
Micro SD card slot (ideal for storing images)
Input contact (WAGO), ideal for a door bell push

Why did you make it?

For my door bell.

What makes it special?

This is a more comprehensive e-paper driver, designed specifically for the 7.5" panels. Unusually it has Micro SD card slot and RGB LEDs.
