Wideband RF Power Amplifier 0.1- 8000 MHz 0.5W

Name: Wideband RF Power Amplifier 0.1- 8000 MHz 0.5W
SKU: 38084
Price: 190.00 USD
Availability: InStock

Wideband RF Power Amplifier 100 kHz – 8 GHz | 0.5W Output | DIY Embedded Module

Designed by RF Core Store in Cyprus

Wideband RF Power Amplifier 0.1- 8000 MHz 0.5W 1

Wideband RF Power Amplifier 0.1- 8000 MHz 0.5W 2

Wideband RF Power Amplifier 0.1- 8000 MHz 0.5W 3

Wideband RF Power Amplifier 0.1- 8000 MHz 0.5W 4

Wideband RF Power Amplifier 0.1- 8000 MHz 0.5W 5

Wideband RF Power Amplifier 0.1- 8000 MHz 0.5W 6

Wideband RF Power Amplifier 0.1- 8000 MHz 0.5W 7

Wideband RF Power Amplifier 0.1- 8000 MHz 0.5W 8

Wideband RF Power Amplifier 0.1- 8000 MHz 0.5W 9

Wideband RF Power Amplifier 0.1- 8000 MHz 0.5W 10

Wideband RF Power Amplifier 0.1- 8000 MHz 0.5W 11

Wideband RF Power Amplifier 0.1- 8000 MHz 0.5W 12










2025-03-30T16:18:46.290Z-schematic_export (2).PNG



Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Wideband RF Power Amplifier 100 kHz – 8 GHz | 0.5W Output | DIY Embedded Module

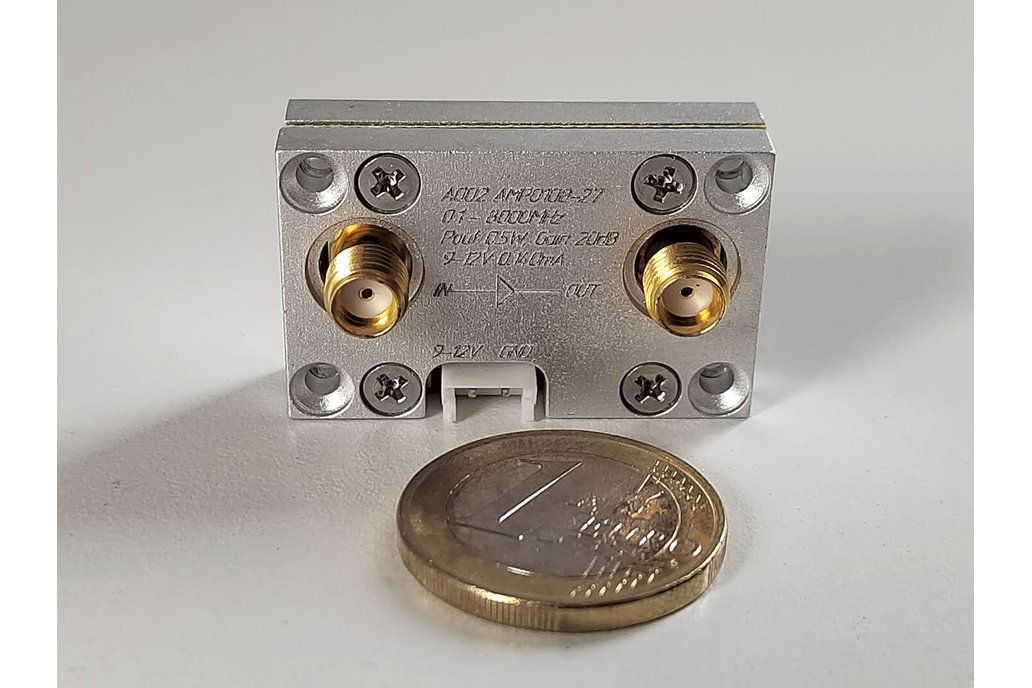

📡 Wideband RF Power Amplifier 100 kHz – 8 GHz | 0.5W Output Compact wideband RF power amplifier operating from 100 kHz to 8 GHz, delivering up to +27 dBm (0.5 W) output power. This module includes …

📡 Wideband RF Power Amplifier 100 kHz – 8 GHz | 0.5W Output

Compact wideband RF power amplifier operating from 100 kHz to 8 GHz, delivering up to +27 dBm (0.5 W) output power.

This module includes an integrated low-noise linear voltage regulator (Analog Devices ADP7102ACPZ-R7), which converts the input supply to a stable 8V output for the amplifier stage.
It provides enhanced isolation from input power noise and ensures consistent performance under varying supply conditions.

Housed in a CNC-machined 6061 aluminum enclosure for EMI shielding and thermal stability. Mounts easily with included screws.

🔧 Specifications

Frequency range: 100 kHz – 8 GHz
Power output: ~0.5 W (+27 dBm)
Gain: 0.1 GHz – 24.1 dB, 1 GHz – 21.4 dB, 5 GHz – 18.4 dB, 8 GHz – 16.4 dB
(for more details, see the S-parameters below; values may vary slightly depending on temperature and amplifier IC characteristics)
Noise: 0.4 GHz – 3.28 dB, 1 GHz – 3.2 dB, 5 GHz – 2.7 dB, 8 GHz – 2.98 dB
Power input: 9–12V @ ~159 mA
Internal regulation: ADP7102ACPZ-R7 linear LDO (outputs 8V)
Connectors: RF: SMA (vertical mount), Power: B2B-EH-A (2.5 mm pitch, includes EHR-2 connector with pre-crimped wires)
Dimensions (with connectors): 15.2 mm × 36.6 mm × 22.9 mm (0.60" × 1.44" × 0.90")
Weight: ~21 g
Enclosure material: 6061 aluminum
Mounting: 4 screws (M2.5 mm, included)

📊 Files

📷 View full S-parameter graph: Click here to view
📁 Download S-parameter file (.s2p): Click here to download
📦 Download 3D model (.STEP): Click here to download

🚀 Typical Applications

Amateur radio and DIY RF projects
Signal amplification in RF systems
Antenna development and testing
Lab research and RF engineering

🔧 Custom RF Modules

If you require modifications or other RF modules (amplifiers, attenuators, dividers, antennas), feel free to reach out. I’m open to collaboration and technical customization.

Notes

> ⚠️ This amplifier is intended solely for lab testing, research, and DIY use.
> The user is responsible for ensuring compliance with local laws and frequency regulations.

This module is manufactured in limited quantities and intended for specialists in RF and embedded systems.
