What is it?

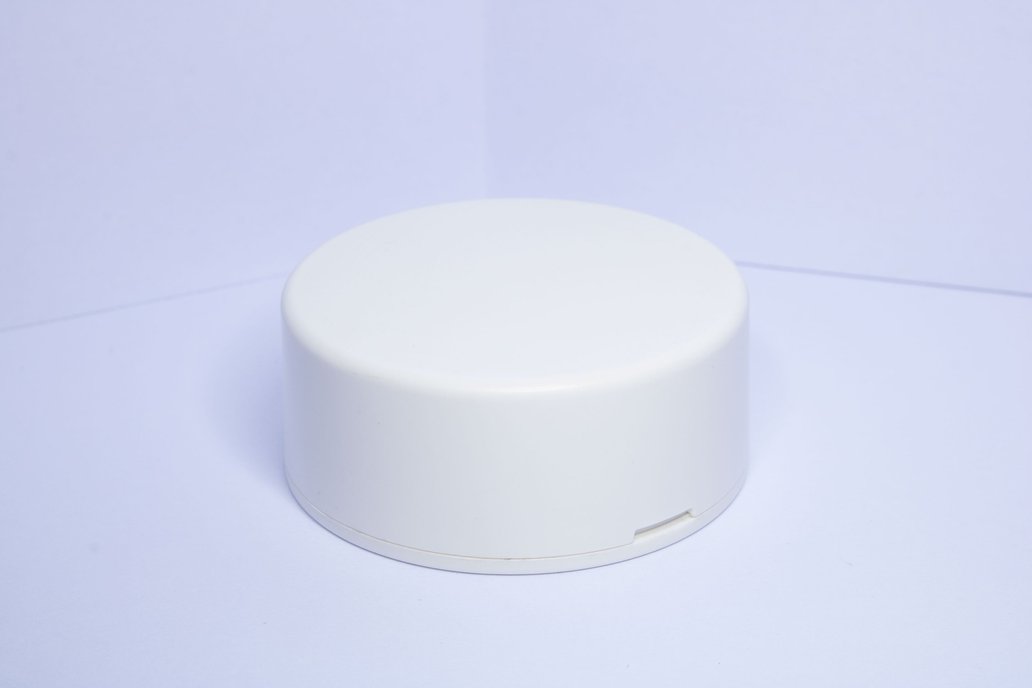

RF-B-AR4 is an RF-star sensor-based Beacon device with a stable structure and extremely low power consumption. It supports iBeacon and Eddystone (UID, URL, TLM). The temperature & humidity sensor and accelerometer sensor make it more flexible for a wide range of applications. Without changing the battery, RF-B-AR4 can reach up to 5-year service life. The replaceable CR2477 battery achieves a longer service life.

Parameters

RF-B-AR4 SoC: ATM2202

Wireless SoC: 16 MHz ARM® Cortex® M0

TX power: + 4 dBm

Battery Life:

• Replaceable CR2477
• Up to 5 years @ 1 s broadcast interval
• LED will flash once when the device turns on
• LED will flash twice when the device turns off
• Real-time battery level notification

Compatibility：

• Supported iOS 7.0+ and Android 4.3+ system
• Compatible with all BLE 4.2 and BLE 5.0 devices

Device Management：

• Over-the-air (OTA) updates
• Reserved J-Link

Connectable Mode：

• Connectable Mode for configuration
• Non-connectable mode for advertising

Configurable Parameters：

• UUID, Major, Minor, Device name, Connection password, etc.
• Tx power, advertising interval, RSSI, etc.
• APP: Beaconsetting and RF-star Beacon for iOS and Android

Transmission Range：

• 8 adjustable TX power levels
• Tx power range: -20 dBm ~ +4 dBm
• Transmission range: Up to 50 meters in an open-?air

Security：

• Authentication key: 6 characters
• Optional encryption advertising data

Mounting：

• 3M adhesive for mounting to wall
• Waterproof level: IP64

Applications

• Logistics tracking
• Cold-chain management
• Indoor environment management
• Assets management
