RF star CC2340 BLE Module 2.4G RF-BM-2340B1Development Board Kit
Designed by Wireless Modules Manufacturer | RFstar in China
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Good Quality, Unbeatable Price, Reliable Supply
What is it? RF-DK-2652_1352 development board is a full set of test products that integrates RF-star SMT CC26xxxx (CC2642R, CC2652R, CC2652R7, CC2652P, and CC2652P7), CC1352xx (CC1352R, CC1352P, and …
Read More…RF-DK-2652_1352 development board is a full set of test products that integrates RF-star SMT CC26xxxx (CC2642R, CC2652R, CC2652R7, CC2652P, and CC2652P7), CC1352xx (CC1352R, CC1352P, and CC1352P7), EFR32XG24
(EFR32BM24, EFR32MG24) modules and USB-to-UART IC to support the tests and development. This board greatly
reduces the difficulty of customers' testing and development. This manual describes how to use the development board. For more information about our products, please visit the official website of RF-star.

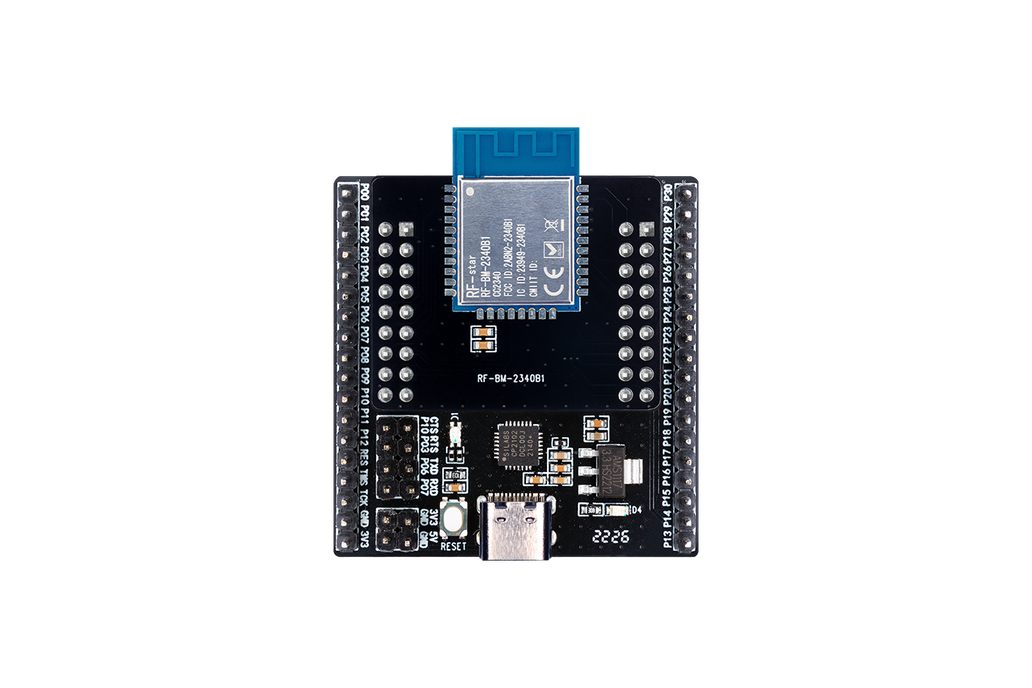

RF-DK-2652_1352
| No. | Function Region | Description |
|---|---|---|
| 1 | Module extension region | Supporting modules are shown in table 2. |
| 2 | Pin output area | All pins are pulled out, which is convenient for test. |
| 3 | UART jumper region | All modules’ pins are default as follows: P10-CTS, P03-CTS, P06-RX, and P07-TX. Those pins can be connected to CTS, RTS, TXD, and RXD respectively by jumpers. If the other UART pins of the module need to be connected, just remove the jumper and connect to the related pins. |
| 4 | Power supply regiona | Power supply: 3.3 V / 5 V. |
| 5 | Button function area | Reset by pushing buttons |
| 6 | USB-to-UART region | USB-to-UART function. Can be used as the USB-to-TTL tool without the module embedded. |
| 7 | Power supply switch region | Power supply witch from 5 V to 3.3 V. |
