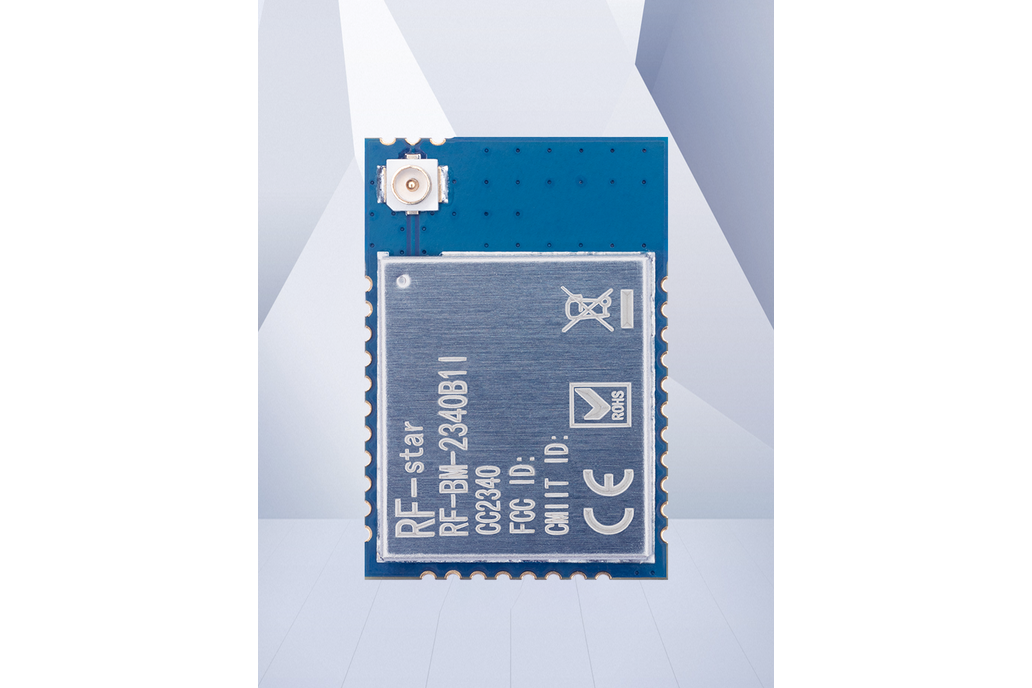

Based on TI CC2340 chipset, RF-BM-2340B1I is a wireless module Bluetooth Zigbee with UART transmission for motion sensor.
Designed by Wireless Modules Manufacturer | RFstar in China
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Good Quality, Unbeatable Price, Reliable Supply
What is it? RF-BM-2340B1 and RF-BM-2340B1I are RF modules based on TI lower-power CC2340R5 SoC. They are multiprotocol 2.4 GHz wireless modules supporting Thread, ZigBee®, Bluetooth® 5.3 Low Energy,…
Read More…RF-BM-2340B1 and RF-BM-2340B1I are RF modules based on TI lower-power CC2340R5 SoC. They are multiprotocol
2.4 GHz wireless modules supporting Thread, ZigBee®, Bluetooth® 5.3 Low Energy, IEEE 802.15.4, and
proprietary 2.4 GHz. The modules integrate a 48 MHz crystal, 512 KB of in-system Programmable Flash, 12 KB ROM for bootloader, and 36 KB of ultra-low leakage SRAM. The ARM® Cortex®-M0+ core application processor can operate at an extremely low current at flexible power modes. And the modules enable long-range and low-power applications using 8 dBm high-power with best-in-class transmit current consumption at 12 mA. They feature a small size, robust connection distance, and rigid reliability. The 1.27-mm half-hole pitch stamp stick makes the module more convenient for application and development. RF-BM-2340B1 has a high-performance PCB antenna, while RF-BM-2340B1I has an IPEX connector or a half-hole RF out interface option for the different needs of external antennas. The UART serial port protocol can also enable you to start your development with a quick path.
RF-BM-2340B1I SoC: CC2340R5 Wireless SoC: ARM® Cortex®-M0+ processor
TX power: Up to +8 dBm
Sensitivity:
Features
Operating Range
Rich Peripherals
