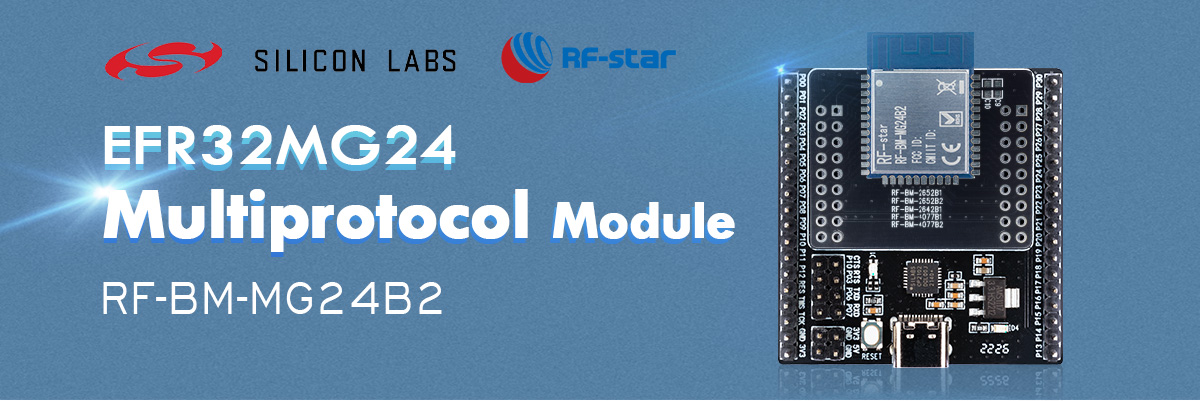

RF star RF-BM-MG24B2 EFR32MG24 Bluetooth5.3 Low Energy ZigBee Matter OpenThread Transmitter Receiver Module
Designed by Wireless Modules Manufacturer | RFstar in China
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Good Quality, Unbeatable Price, Reliable Supply
What is it? RF-BM-MG24B1 and RF-BM-MG24B2 are IoT wireless connectivity modules based on Silicon Labs EFR32MG24 series SoCs. They integrate a 39 MHz crystal and a 32.768 kHz crystal, up to 1536 KB pr…
Read More…RF-BM-MG24B1 and RF-BM-MG24B2 are IoT wireless connectivity modules based on Silicon Labs EFR32MG24 series SoCs. They integrate a 39 MHz crystal and a 32.768 kHz crystal, up to 1536 KB programmable flash, and 256 KB RAM making it possible in many complex applications. Its 32-bit 78 MHz ARM® Cortex®-M33 core can operate at an extremely low current at flexible power modes. Its multiprotocol 2.4 GHz RF transceiver is compatible with Matter, OpenThread, Zigbee®, Bluetooth® 5.3 Low Energy, Bluetooth Mesh, and 2.4 GHz Proprietary. It features a small size, robust connection distance, and rigid reliability. Up to optional 10 dBm or 19.5 dBm TX power enables it in long-range requirement applications. It features a small size, robust connection distance, and rigid reliability. Those modules are pin-2-pin compatible with each other.

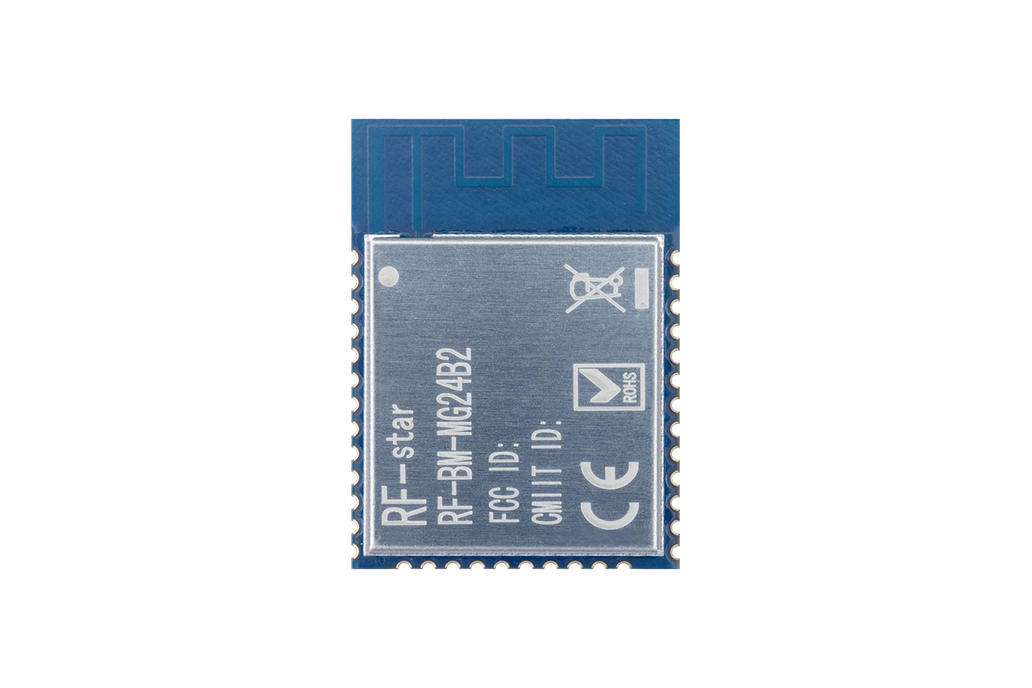

RF-BM-MG24B2 SoC: EFR32MG24
Wireless SoC: ARM® Cortex®-M33 core
TX power: + 19.5 dBm
Sensitivity:
Features
Operating Range
Rich Peripherals
