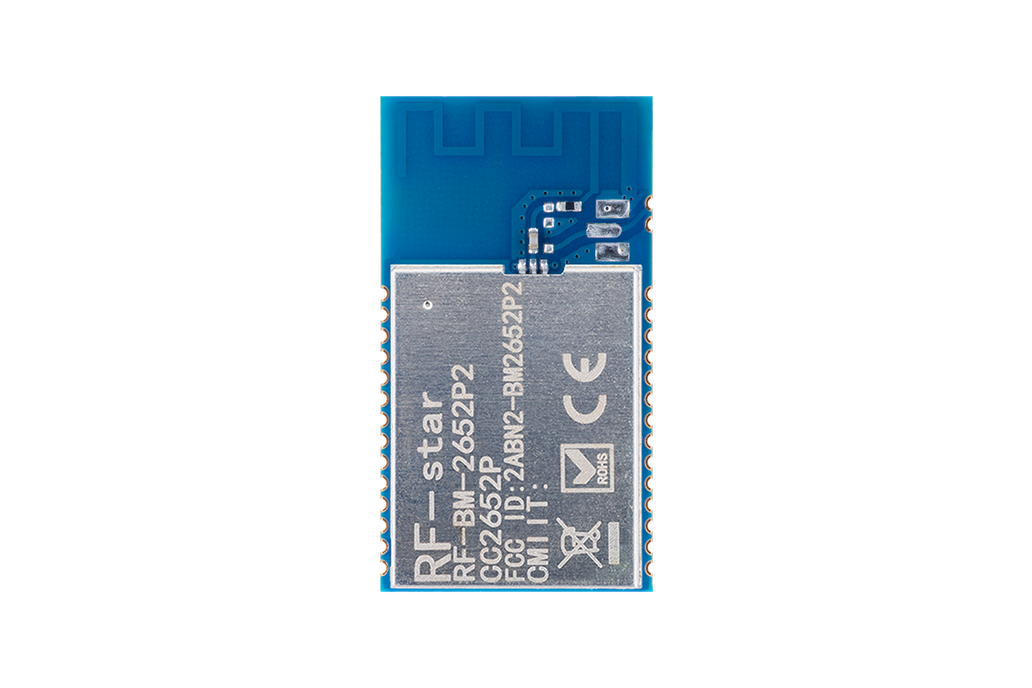

RF-star CC2652P 20 dBm PCB Antenna ZigBee 3.0 BLE5.1 Module Multi-Protocol CC2652P Transceiver RF-BM-2652P2
Designed by Wireless Modules Manufacturer | RFstar in China
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Good Quality, Unbeatable Price, Reliable Supply
What is it? RF-BM-2652P2(I) is an RF module based on TI lower-power CC2652P SoC, which is a multiprotocol 2.4 GHz wireless module supporting Thread, Zigbee®, Bluetooth® 5.3 Low Energy, IEEE 802.15.4,…
Read More…RF-BM-2652P2(I) is an RF module based on TI lower-power CC2652P SoC, which is a multiprotocol 2.4 GHz wireless module supporting Thread, Zigbee®, Bluetooth® 5.3 Low Energy, IEEE 802.15.4, IPv6-enabled smart objects (6LoWPAN), proprietary systems, including the TI 15.4-Stack (2.4 GHz), and concurrent multiprotocol through a Dynamic Multiprotocol Manager (DMM) driver. It integrates a 48 MHz crystal and a 32.768 kHz crystal, 352 KB of in-system Programmable Flash, 256 KB ROM, 8 KB of Cache SRAM, and 80 KB of ultra-low leakage SRAM. Its ARM® Cortex®-M4F core application processor can operate at an extremely low current at flexible power modes. And the module enables long-range and low-power applications using an integrated +20 dBm high-power amplifier with best-in-class transmit current consumption at 85 mA. It features a small size, robust connection distance, and rigid reliability. Optional antenna output modes (PCB, IPEX connector, and half-hole interface) make the module more convenient for application and development.
RF-BM-2652P2 SoC: CC2652P
Wireless SoC:ARM® Cortex®-M4F processor
TX power: Up to +20 dBm
Sensitivity:
Features
Operating Range
Rich Peripherals
