What is it?

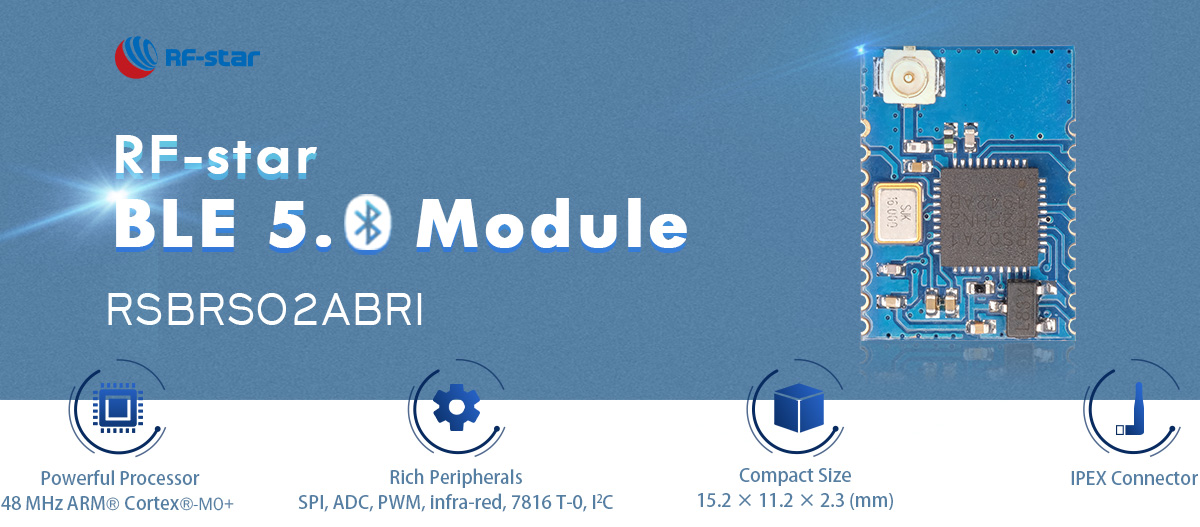

RSBRS02ABR(I) is a compact size, cost-effective Bluetooth low energy module based on RF-star 256 KB flash SoC RS02A1-B chip with super low power consumption, good noise reduction, better sensitivity, robust transmission distance, and high reliability. The module integrates a 16 MHz crystal, an RF matching filter, a power filter, and a meander line inverted-F PCB antenna (RSBRS02ABR) or an IPEX connector (RSBRS02ABRI). It supports BLE stack v5.0 and is preprogrammed with an easy-to-integrate serial interface communication protocol.

Parameters

RSBRS02ABRI SoC: RS02A1-B

Wireless SoC: 32-bit ARM Cortex-M0+ @ 48 MHz

TX power: + 5 dBm

Sensitivity:

• -94 dBm @ 1 Mbps PHY

Features

• Bluetooth 5.0 low energy, support 2 Mbps data rate and extended ADV payload

Operating Range

• Supply voltage range 2.3 V ~ 3.6 V
• Working temperature range: -40 °C ~ +85 °C

Rich Peripherals

• 11 general purpose I/Os. Function IO any-route support
• 2 x UART with CTS/RTS
• SPI with master/slave configurable
• I2C with master/slave configurable
• 7816 T-0 master interface
• 4-channel 9-bit general purpose ADC
• 2-channel DMA
• Infra-red generator
• 4 x PWM
• Quadrature decoder (QDEX) interface
• 12 MHz clock output
• 2-channel DMA
• 5 x 16-bit timer
• Real timer clock (RTC)
• Watchdog

Applications

• Smart toys
• Gaming controller
• E-lock
• Smart lighting
• Electronic shelf label
• Location-based service
• Medical devices
• Fitness equipment
• Environmental sensor nodes
• Passive keyless entry (PKE)
• Phone accessories
• Health-care equipment
• Energy harvesting
• Thermometer
• Human input devices
• Wearable

Useful Links

• RSBRS02ABR(I) RS02A1-B datasheet
