RF-Star RF-BM-ND04C nRF52810 BLE Module Bluetooth Low Energy for Asset Tracking
Designed by Wireless Modules Manufacturer | RFstar in China
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Good Quality, Unbeatable Price, Reliable Supply

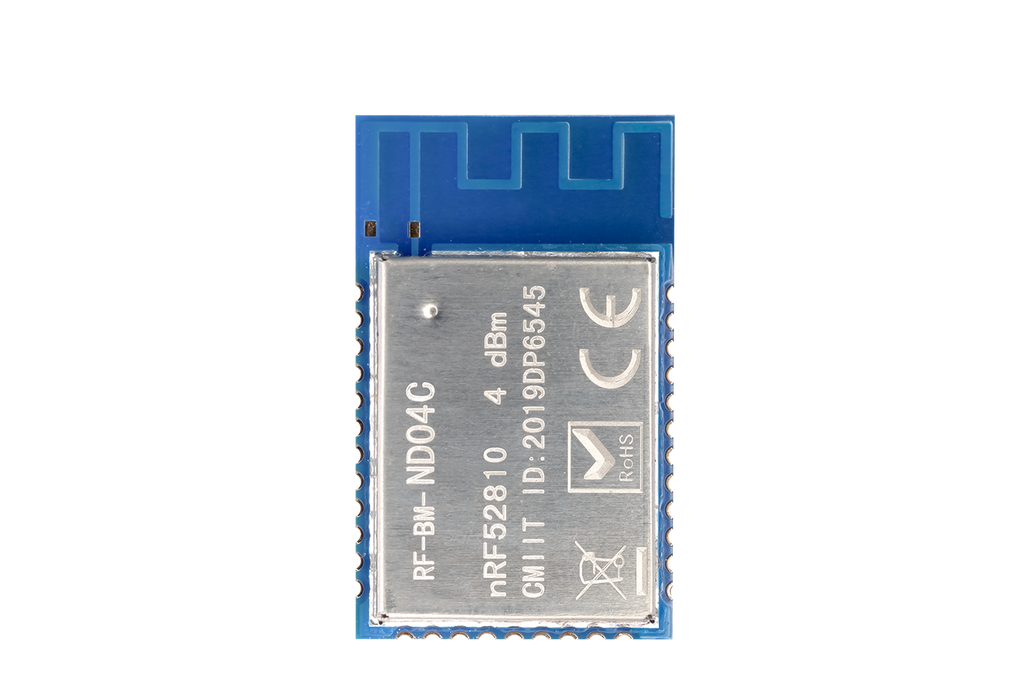

What is it? RF-BM-ND04C and RF-BM-ND04CI are RF modules based on Nordic BLE SoC nRF52810 with ARM® Cortex®-M4 32- bit processor. It integrates a 32.768 kHz and a 32 MHz crystal, an LC filter, an ante…
Read More…RF-BM-ND04C and RF-BM-ND04CI are RF modules based on Nordic BLE SoC nRF52810 with ARM® Cortex®-M4 32-
bit processor. It integrates a 32.768 kHz and a 32 MHz crystal, an LC filter, an antenna matching and a meander line inverted-F PCB antenna or IPEX connector respectively. It supports Bluetooth 5.0 LE, including the high-speed 2 Mbps feature and ANT and 2.4 GHz proprietary protocols for simple programming. The module has numerous digital peripherals and interfaces such as PDM, PWM, UART, SPI, I2C and 12-bit ADC. It features low power consumption, small size, robust connection distance, and rigid reliability. 1.27-mm pitch stamp stick package for easy assembling and cost-effective PCB design.
RF-BM-ND04C SoC: nRF52810
Wireless SoC:ARM® Cortex®-M4 32-bit processor
TX power: Up to +4 dBm
Sensitivity:
Memory
Features
Operating Range
Rich Peripherals
