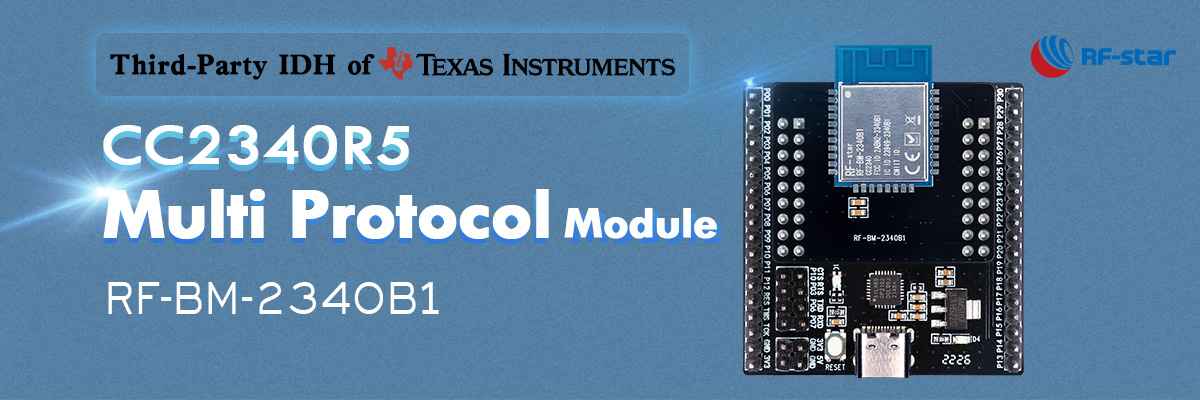

Based on TI CC2340R5 MCU, RF-BM-2340B1 is a multi-protocol module with rich resources and low power consumption for IoT applications.
Designed by Wireless Modules Manufacturer | RFstar in China
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Good Quality, Unbeatable Price, Reliable Supply
What is it? RF-BM-2340B1 is an RF module based on TI lower-power CC2340R5 SoC, which is a multiprotocol 2.4 GHz wireless module supporting Thread, ZigBee®, Bluetooth® 5.3 Low Energy, IEEE 802.15.4, a…
Read More…RF-BM-2340B1 is an RF module based on TI lower-power CC2340R5 SoC, which is a multiprotocol 2.4 GHz wireless module supporting Thread, ZigBee®, Bluetooth® 5.3 Low Energy, IEEE 802.15.4, and proprietary 2.4 GHz. It integrates a 48 MHz crystal and a 32.768 kHz crystal, 512 KB of in-system Programmable Flash, 12 KB ROM for bootloader, and 36 KB of ultra-low leakage SRAM. Its ARM® Cortex®-M0+ core application processor can operate at an extremely low current at flexible power modes. And the module enables long-range and low-power applications using 8 dBm high-power with best-in-class transmit current consumption at 12 mA. It features a small size, robust connection distance, and rigid reliability. The 1.27-mm half-hole pitch stamp stick makes the module more convenient for application and development.
RF-BM-2340B1 SoC: CC2340R5 Wireless SoC: ARM® Cortex®-M0+ processor
TX power: Up to +8 dBm
Sensitivity:
Features
Operating Range
Rich Peripherals
