RF-star Test Board USB to UART Baseboard Development Kit Adapted with nRF528x CC2640 CC2640R2F CC2540 CC2541 for Arduino
Designed by Wireless Modules Manufacturer | RFstar in China
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Good Quality, Unbeatable Price, Reliable Supply
What is it? RF-BT02 development board is a complete set of test products formed by a serial port module and a USB to UART baseboard for customer testing and development, which greatly reduces the dif…
Read More…RF-BT02 development board is a complete set of test products formed by a serial port module and a USB to UART baseboard for customer testing and development, which greatly reduces the difficulty of customers’ testing and development. This user guide describes how to use the development board. For more information about our products, please visit the official website: www.szrfstar.com.
| Header 1 | Header 2 | Header 3 |
|---|---|---|
| A | Module expansion area | Adapter modules are shown in Table 2. |
| B | Pin output area | All pins are pulled out, which is convenient for test. |
| C | USB-to-UART area | USB-to-UART function, it can be used as a USB to TTL tool when there is no module. |
| D | 3.3 V power supply area | Output voltage 3.3 V / 5 V |
| E | Button function area | Reset by pushing buttons |

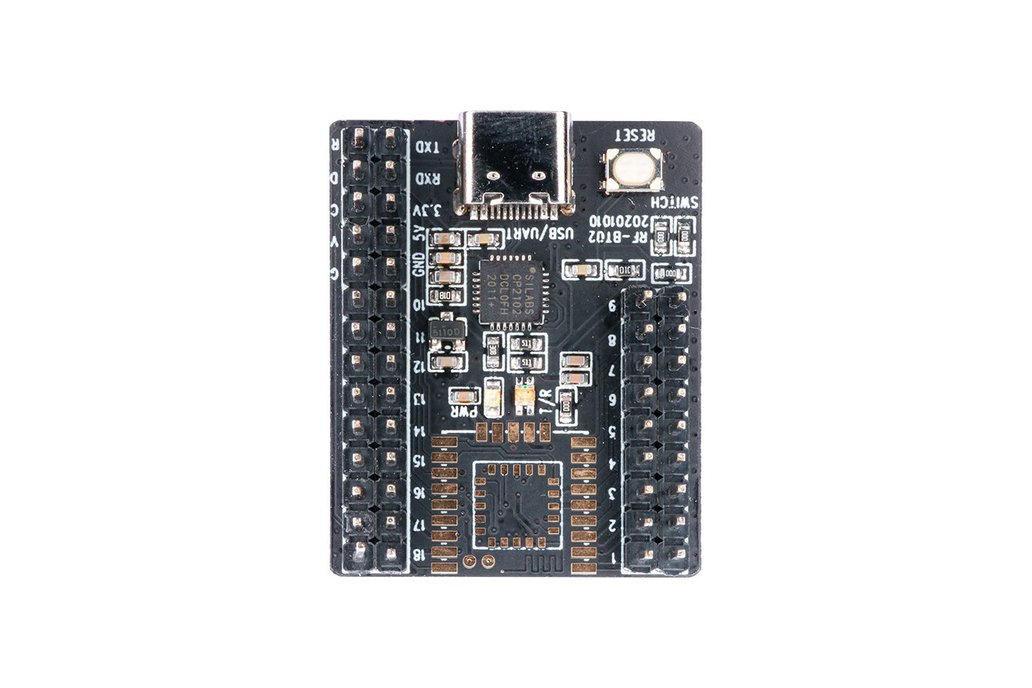

RF-BT02
Note: The module is not included in the kits.
