RFstar USB-to-UART development board kit for TI CC2652P CC2642R CC2652 CC1352 Bluetooth ZigBee module

Designed by Wireless Modules Manufacturer | RFstar in China

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Good Quality, Unbeatable Price, Reliable Supply

RFstar USB-to-UART development board kit for TI CC2652P CC2642R CC2652 CC1352 Bluetooth ZigBee module

What is it? RF-DK-2652_1352 development board is a full set of test products that integrates RF-star SMT CC26xxxx (CC2642R, CC2652R, CC2652R7, CC2652P, and CC2652P7), CC1352xx (CC1352R, CC1352P, and …

What is it?

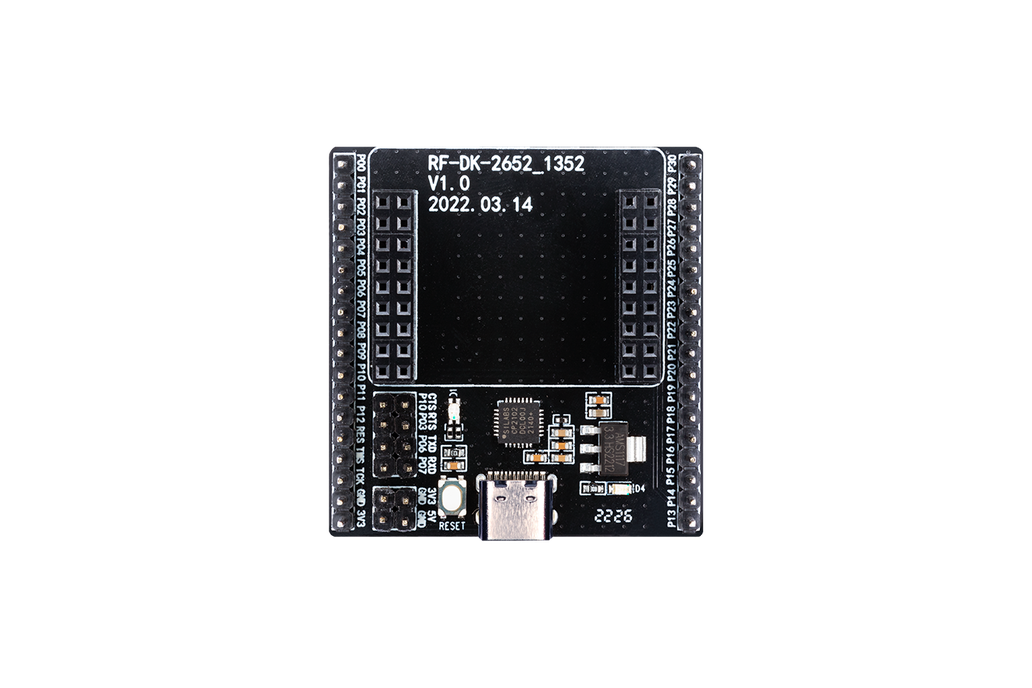

RF-DK-2652_1352 development board is a full set of test products that integrates RF-star SMT CC26xxxx (CC2642R, CC2652R, CC2652R7, CC2652P, and CC2652P7), CC1352xx (CC1352R, CC1352P, and CC1352P7), EFR32XG24 (EFR32BM24, EFR32MG24) modules and USB-to-UART IC to support the tests and development. This board greatly reduces the difficulty of customers' testing and development. This manual describes how to use the development board. For more information about our products, please visit the official website of RF-star.

Parameters

RF-DK-2652_1352

No.	Function Region	Description
1	Module extension region	Supporting modules are shown in table 2.
2	Pin output area	All pins are pulled out, which is convenient for test.
3	UART jumper region	All modules’ pins are default as follows: P10-CTS, P03-CTS, P06-RX, and P07-TX. Those pins can be connected to CTS, RTS, TXD, and RXD respectively by jumpers. If the other UART pins of the module need to be connected, just remove the jumper and connect to the related pins.
4	Power supply regiona	Power supply: 3.3 V / 5 V.
5	Button function area	Reset by pushing buttons
6	USB-to-UART region	USB-to-UART function. Can be used as the USB-to-TTL tool without the module embedded.
7	Power supply switch region	Power supply witch from 5 V to 3.3 V.
