What is it?

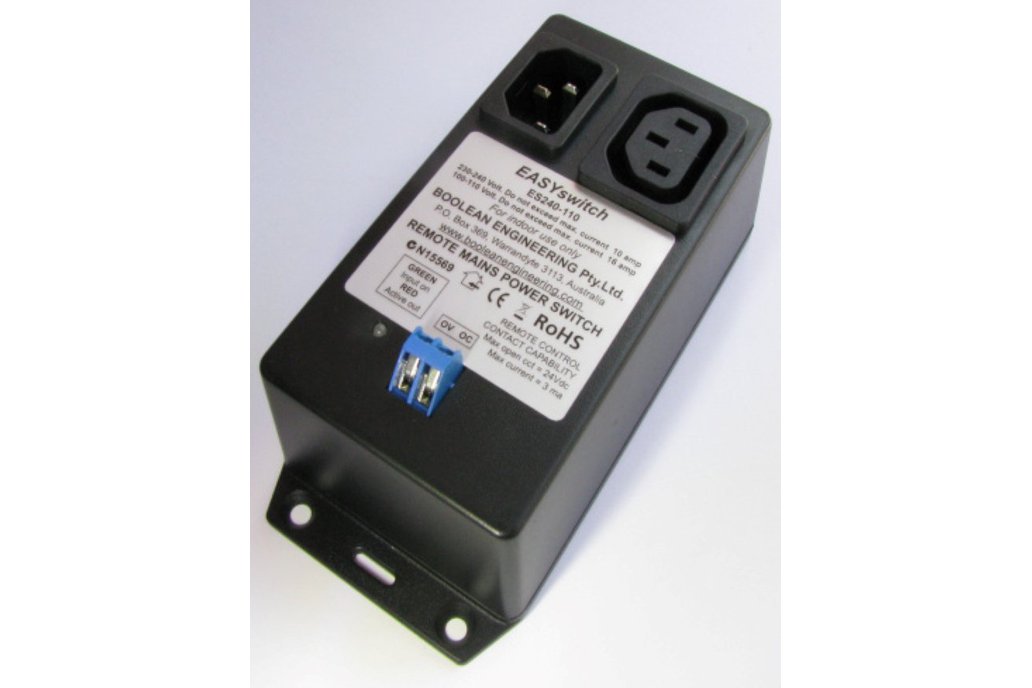

These EASYswitch Bench Mount or DIN Rail devices control 240 or 110 volt mains power safely and simply and are fully compliant with required standards. The EASYswitch models provide on – off control of the mains between its industry standard universal IEC power connectors.

More than 6000 units installed in AV installations, Process and Industrial Control etc.

Control contacts do not need extra licenced electrical wiring to power mains equipment. Rugged relay capacity of 1 pole 16A, 1 form C (CO) contact for inrush peak currents up to 30A maximum for 4 seconds.

Requiring only a volts free contact closure to switch the full mains supply, it can be operated from kilometres away over basic telephone wire by a simple switch, relay contact or open collector transistor as used in controllers, A/V and Security equipment. With user selectable mains supply (240V or 110V), and selectable output supply via IEC connectors of normally open (NO) or normally closed, (NC), designers and installers need stock only one device for universal power control.

Why did you make it?

To provide myself and other designers an off the shelf safe and flexible means to access global mains electricity.

What makes it special?

Designers and Installers need stock only one device for universal power control.
