SPI Display Array - 6 ST7789 1.14" displays
Designed by Savage Electronics in Mexico
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
This product does not include the controller and USB Board, the Controller is sold separately. The display array is a board that sets 6 ST7789 display with a resolution of 135x240px in a linear array…
Read More…This product does not include the controller and USB Board, the Controller is sold separately.

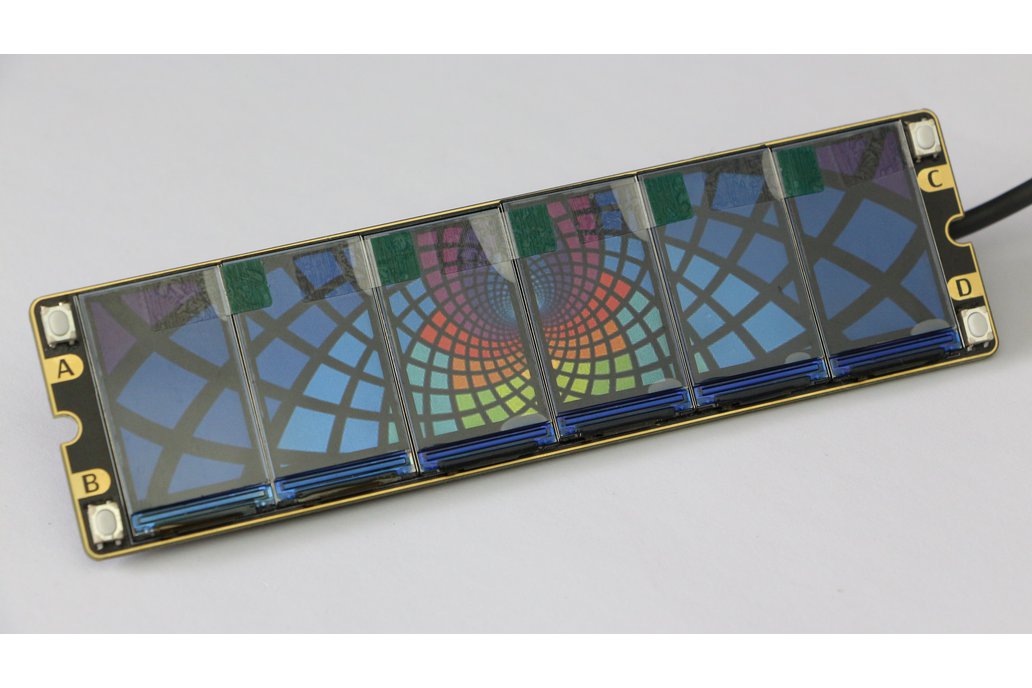

The display array is a board that sets 6 ST7789 display with a resolution of 135x240px in a linear array sharing the clock, data, rs, backlight pins together, and leaving individual access to the cs lines of each display, This board allows you to display images with a resolution of 810x240px.
The board integrates also 4 general purpose buttons for human interface, which allows the board to have multiple applications, the main application that this board was intended to be used is a fully customizable clock.
The PCB is intended to be compatible with any Microcontroller or SBC like the Raspberry as it only needs some GPIOs and an SPI Port. This makes the PCB compatible with a simple microcontroller as an Arduino to other more advanced microcontrollers. We could say this board is a breakout board for the arrangement of six displays and 4 buttons.
Please refer to my page Post for more detail.
For the controller go here: https://www.tindie.com/products/23965/
