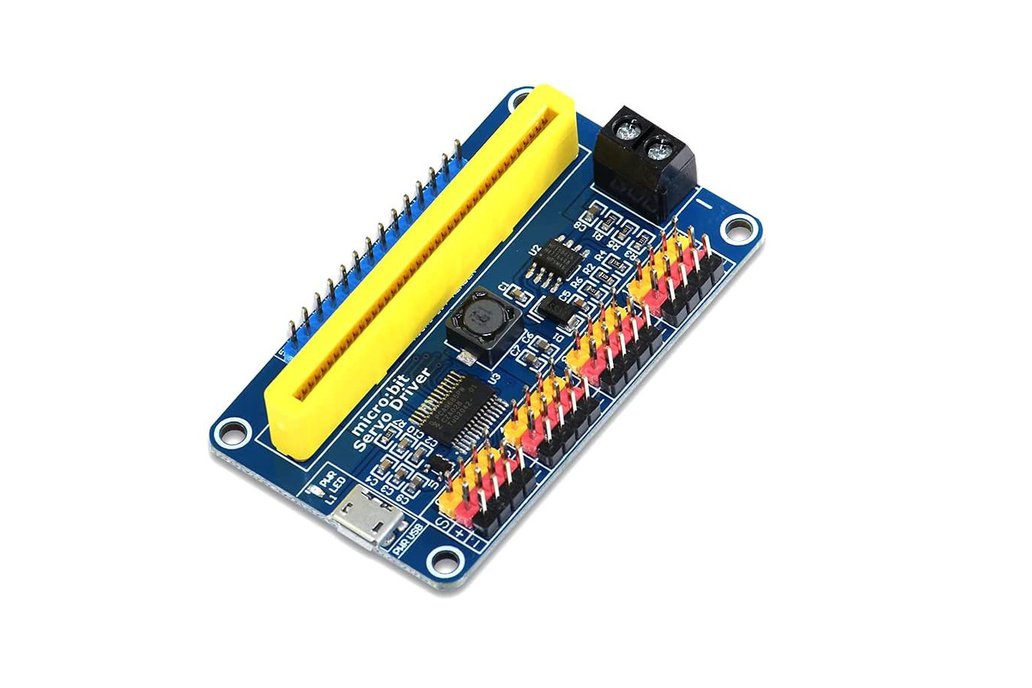

16 Channel servo driver for micro:bit allows you to monitor 16 servo motors with 12-bit resolution per channel through the I2C interface. The power source can be 5 volts via the USB connector or 6 to 12 volts via the screw link VIN.

This board is equipped with a 5V voltage regulator that can deliver up to 3A of current. It has I2C control pins that can be used with other control boards. It's easy to use and compatible with the majority of servos on the market.

Features:

• micro:bit edge connector, directly pluggable.
• I2C controlled, using only 2 pins.
• Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales).
• Integrates 5V regulator, up to 3A output current, can be powered from the battery through VIN terminal.
• Standard servo interface supports commonly used servo such as SG90, MG90S, MG996R, etc.
• Reserved I2C control pins, allows working with other control boards.

Specifications:

• External Power supply: 5V OR 6V (Via power supply connector)
• Servo voltage: 5V
• Logic voltage: 3.3V
• Driver: PCA9685
• Control interface: I2C

Kit Content:

• 1 x 16 channel servo driver for micro:bit

Note: micro:bit is not included
