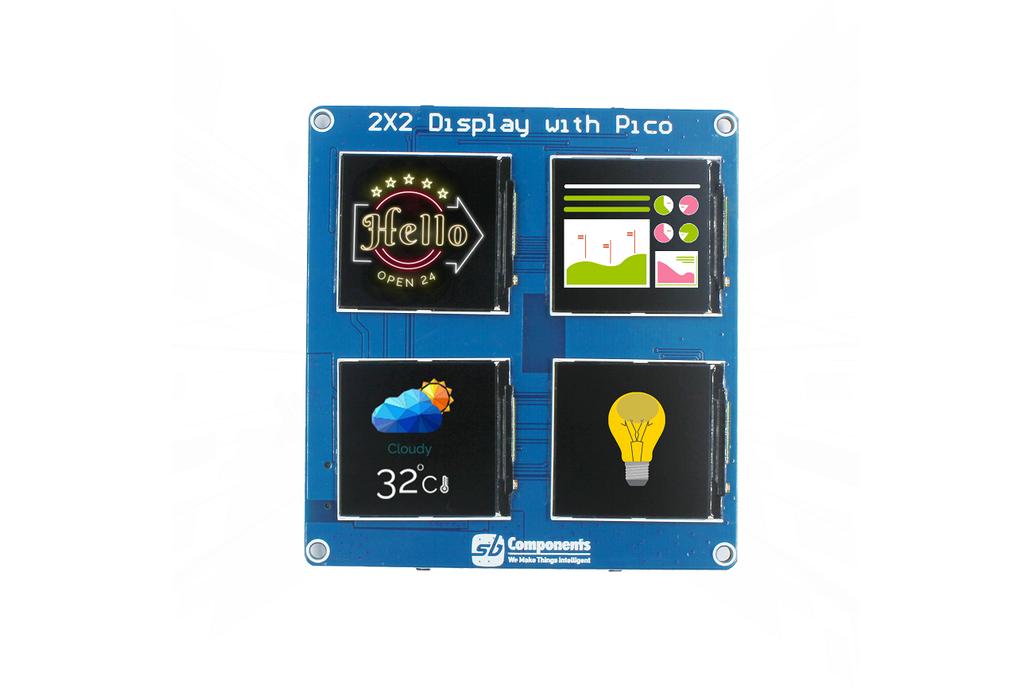

2x2 Quad Display Powered with Raspberry Pi Pico The Quad Display Board features four displays in a single board, offering unparalleled flexibility and functionality for your creative endeavors. With options for both a 1.28" Round Display and a 1.54" Square Display, you have the freedom to choose the perfect size for your project needs. Whether powered by Raspberry Pi Pico, the Quad Display Board delivers exceptional performance and versatility, making it the ultimate solution for all your display needs.

Raspberry Pi Pico Powered Version:

1.54" Square

Features: Powered by Raspberry Pi  Pico W microcontroller which is having Dual-core Arm Cortex-M0+ processor, running up to 133 MHz Four Square/Round Display in 2x2 arrangement for creative visual interactions DS3231 RTC for real-time capture and control activity With Backup Battery Holder BME280 Sensor for temperature, humidity, and pressure monitoring Power and Charging LED for status indication Battery hookup and charging facilities for portability Onboard microSD card compatibility is useful for data logging purposes Multipurpose GPIOs breakout for additional peripheral interfacing Four Programmable Buttons to add additional controls to the project  Buzzer which helps to add audio alert for your project.

Pinout:

Specifications

Versions:
Raspberry Pi Pico Powered

Microcontroller Raspberry Pi Pico W Xtensa® dual-core 32-bit LX7 microprocessor Connectivity Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE) Memory 264kB on-chip SRAM, 2MB on-board QSPI flash Flash up to 16 MB, PSRAM up to 8 MB Supply Voltage 5V Operating pin voltage 3.3V Sensor BME280 for Temperature, Pressure & Relative Humidity BME280 for Temperature, Pressure & Relative Humidity RTC Chip DS3231SN RTC Battery Holder Supports CR1220 3V Battery Operating Temperature Range -20°C ~ +70°C Display Specifications

Display Size 1.54” (Square) Display Type IPS TFT Display Resolution 240 x 240 pixels Display colors 65K RGB Display interface SPI Display Driver ST7789V (Square)

Applications: Digital Signage and Notice Boards Interactive Displays for Smart Gadgets Portable Weather Real-Time Data Logging DIY IoT & Electronics Prototyping Projects Smart Automation & Healthcare Monitoring Human-Machine Interface (HMI) Retail Point-of-Sale Displays
