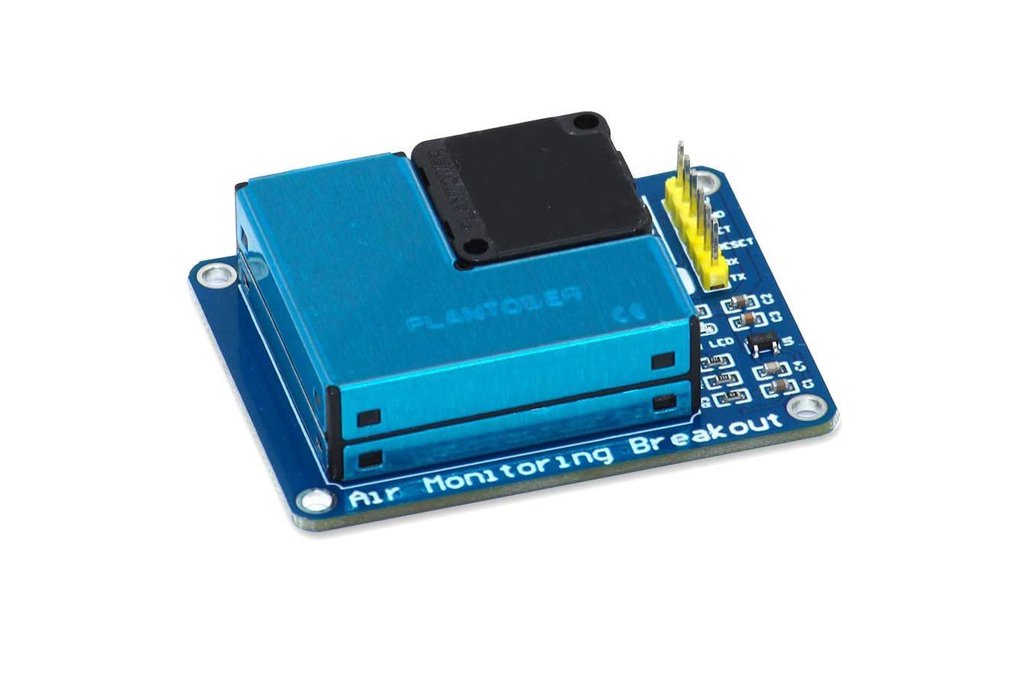

Air Monitoring Breakout for Raspberry Pi, an open-source portable sensor that can provide the level of quantity of the suspended particulates with their mass. Air Monitoring breakout has a powerful and hi-tech PMSA003 sensor that provides the information of suspended particulate matter(PM1.0, PM2.5, PM10) in the air per unit volume via digital output with an operating voltage of 3.3 V. It communicates via UART(serial) with the standby current ≤200 Microampere(μA) of the sensor. It is compatible with Raspberry Pi, Beaglebone, Arduino, STM32, PIC, AVR, ARM, etc.

Features:

• Digital sensor
• Operating Voltage 5V DC
• PMSA003 Sensor
• Measuring range 0.3 to 10 Micron

Specifications:

• Model - Air Monitoring Breakout
• Sensor Model number - PMSA003
• Data Output - Digital Sensor(unit quality + number of units)
• Type - Biosensor
• Communication Interface - UART (Serial)
• Measuring range - 0.3 to 1.0, 1.0 to 2.5, 2.5 to 10 Micron (μm)
• Counting efficiency - 50% @ 0.3 μm 98% @> = 0.5 um
• Response time - ≤10 s
• DC supply voltage - 5.0 V
• Maximum Operating Current - 100 Milliamp (mA)
• Standby current - ≤200 Microamp (μA)
• Data interface level - L <0.8 @3.3, H >2.7@3.3 Volt(V)
• Operating Temperature range - -10 to +60 Celsius (℃)
• Operating Humidity range - 0 - 99%
• Mean time between failures - ≥3 Year(Y)

Kit Content:

• 1 x Air Monitoring Breakout Board

Note: Other items are only for reference!
