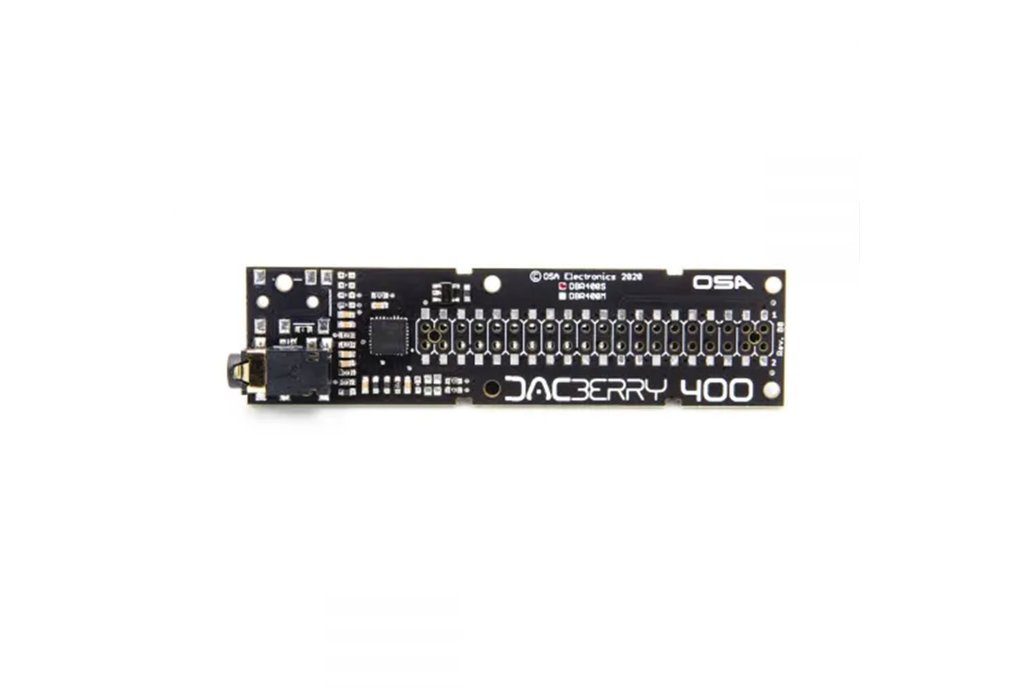

The DACBerry400S is the first accessory available for the Raspberry Pi 400 that provides audio capabilities. It is the first accessory designed specifically for the Raspberry Pi 400’s all-in-one computer format.

The DACBerry400 range is a high-resolution soundcard with gold platting and matte black finish. It fits discretely onto the back of the Pi400, avoiding clutter of cables and fixtures used with other possible solutions. It is also usable with Raspberry Pi boards, plugging directly onto the GPIO header.

With no analogue outputs of its own, the Raspberry Pi relies on HAT (Hardware Attached on Top) expansion modules to provide features such as audio input/output. With up to two 3.5mm jacks across two versions of the product, DACBerry400 S supports both audio out (headphones, line-out) and audio in (MIC). The DACBerry400 connects to the Raspberry Pi 400’s 40-pin GPIO header and provides pass-through for further expansion.

It suites all users from beginners to professionals. Just connect your DACBerry400 to desired powered speakers or to an audio amplifier and you can be up and running quickly, enjoying flawless high-quality audio playback.

It integrates a 96kHz/32bit DAC chip with hardware volume control, allowing you to play/record your files digitally. Outputs are line level headphone over 3.5mm jack cable. The DACBerry400 uses the I2S interface for its audio input which reduces CPU load on the Raspberry Pi compared to USB solutions. It is powered directly from the GPIO header so no extra cables or power supplies are needed, keeping all USB ports on the Pi 400 free for other uses.

The software-configurable DACBerry400 fits easily into the Raspberry Pi ecosystem. It uses an integrated DSP to create 3D effects including equalisation and de-emphasis. This is complemented by a DAC with 102dB SNR and ADC with 92dB SNR. The low-noise design partitions the analogue and digital functions to achieve THD+N @ 1kHz of 0.003%.

The Raspberry Pi 400 has become extremely popular with younger makers, providing a low-cost, all-in-one computing solution. Adding audio in/out will bring a new dimension to that experience and will help retro gamers, coding clubs, schools and hobbyists to discover even more application areas. No soldering is required, it’s simple to install and use, connect your DACBerry400 to a set of speakers, headphones or an audio amplifier and enjoy crystal-clear high-quality audio playback.

Specifications

– Analog soundcard

– DAC SNR 102dB @96kHz

– ADC SNR 92dB @96kHz

– THD+N 0.003% / -92dB @1kHz

– Integrated DSP with 3D Effects, EQ and De-Emphasis

– Ultra low-noise LDO for analog power rail

– Gold-plated 3.5mm headset / headphone jack (mic in – stereo out)

– Low-Noise design with isolated Digital and Analog parts

– Directly powered from the Raspberry Pi / Tinker Board / Jetson Nano and others with compatible GPIO

– Compatible with Raspberry Pi 400

– Compatible with all Raspberry Pi’s with the 40-pin connector and Asus Tinker Board and othes (Odroid, Banana Pi..)

– Compatible with OSMC / RuneAudio / Volumio / Moode / PiCorePlayer and others

– Designed and assembled in the beautiful Barcelona, Spain

We only use original parts and from top brands on our products. Stay away from products using fake parts and help us to win the battle against counterfeit semiconductors products.
