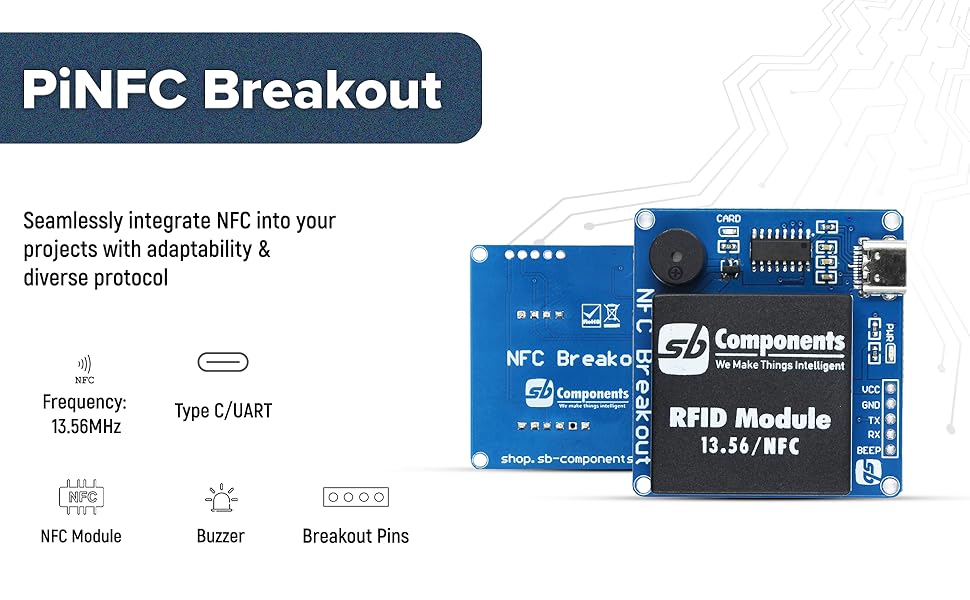

Introducing the NFC Breakout the ultimate NFC for your microcontrollers and microprocessors etc. With contactless communication, you may easily extend the capabilities of your devices. It works at a high frequency of 13.56 MHz. This enables both read and write operations, providing a wide reading range and fast interaction times. It has an inbuilt antenna and is compatible with a variety of NFC protocols, making it ideal for secure access, IoT projects, and interactive exhibits.

Features:

• Adopt a special base station RF chip, stable performance, good compatibility
• Both Read/Write operations are possible
• Integrated Antenna
• Communication Interface: TTL
• Support Protocols like ISO14443B, ISO18092
• Multi-tune Buzzer to add audio alert into the project
• Status LED for board power, and Tag Scan indication
• Contactless card supports like NTAG213, Mifare one S50, Mifare one S70, ultralight, FM11RF08
• USB for communication

Specifications:

• NFC Module Frequency: 13.56MHz
• Reading Distance: >50mm (The effective distance is related to the IC card and the use environment)
• Reading Time: <200ms
• Output Format: TTL
• Size: 28.9 x 28.9mm
• Supply: 5V DC
• Operating Current: 50mA
• Operating Temperature: -15°C to +55°C
• Storage Temperature: -20°C to +70°C

Package Content:

• 1 x NFC Breakout Board

Note: Cable is not included!
